DUCTING AND FLASHING

DROPPER DUCT

DUCTING

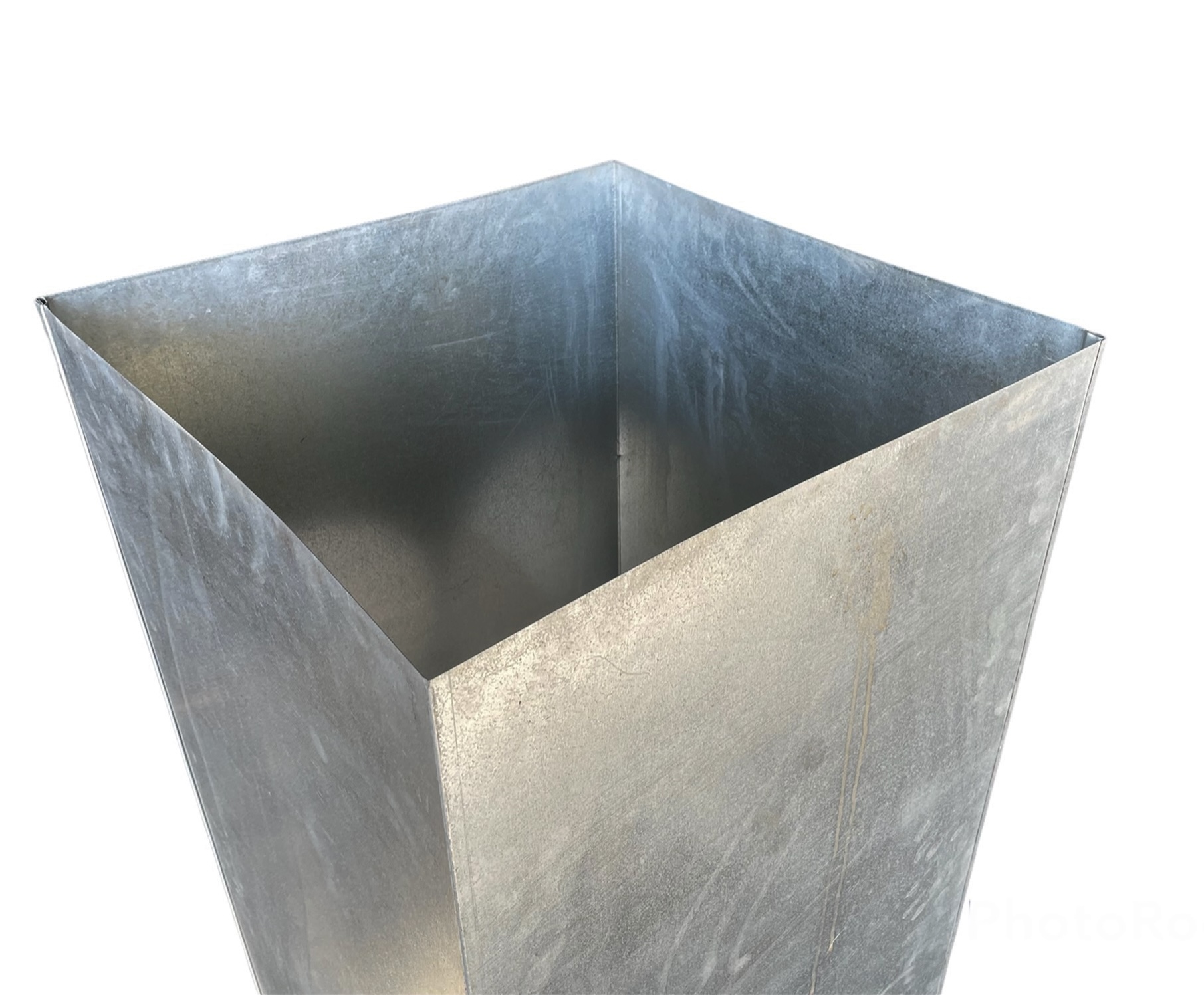

Dropper Duct 545mm x 545mm

• 545 x 545 x 1200/1800/2400 long
• c/w either stop end or duct flange

Also available in:
• 690 x 690
• 585 x 1170 for Twin Fan Coolers

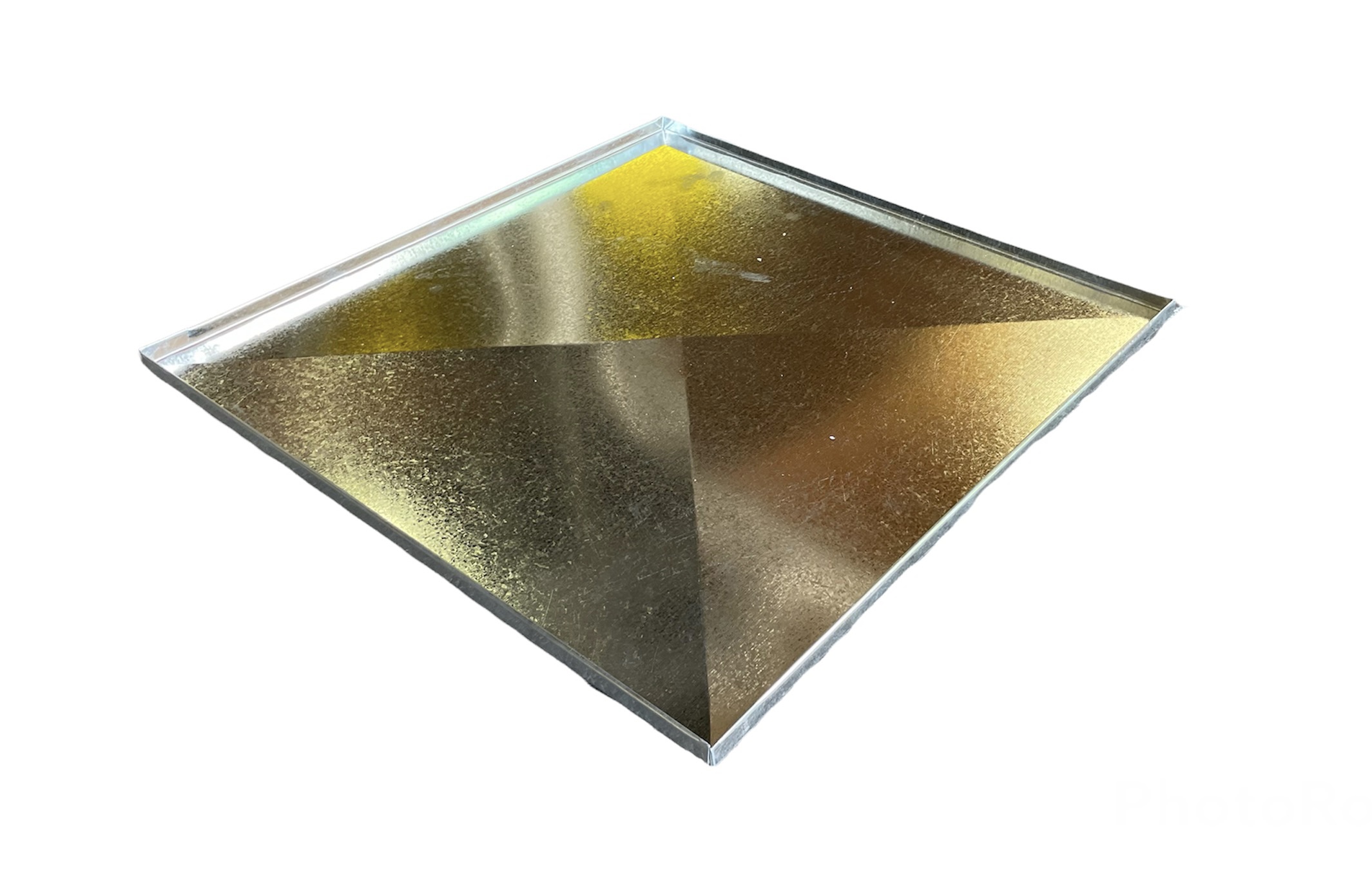

Dropper Duct Stop End

• 545 x 545
• 690 x 690
• 585 x 1170

Dropper Duct Stop End

• 545 x 545
• 690 x 690
• 585 x 1170

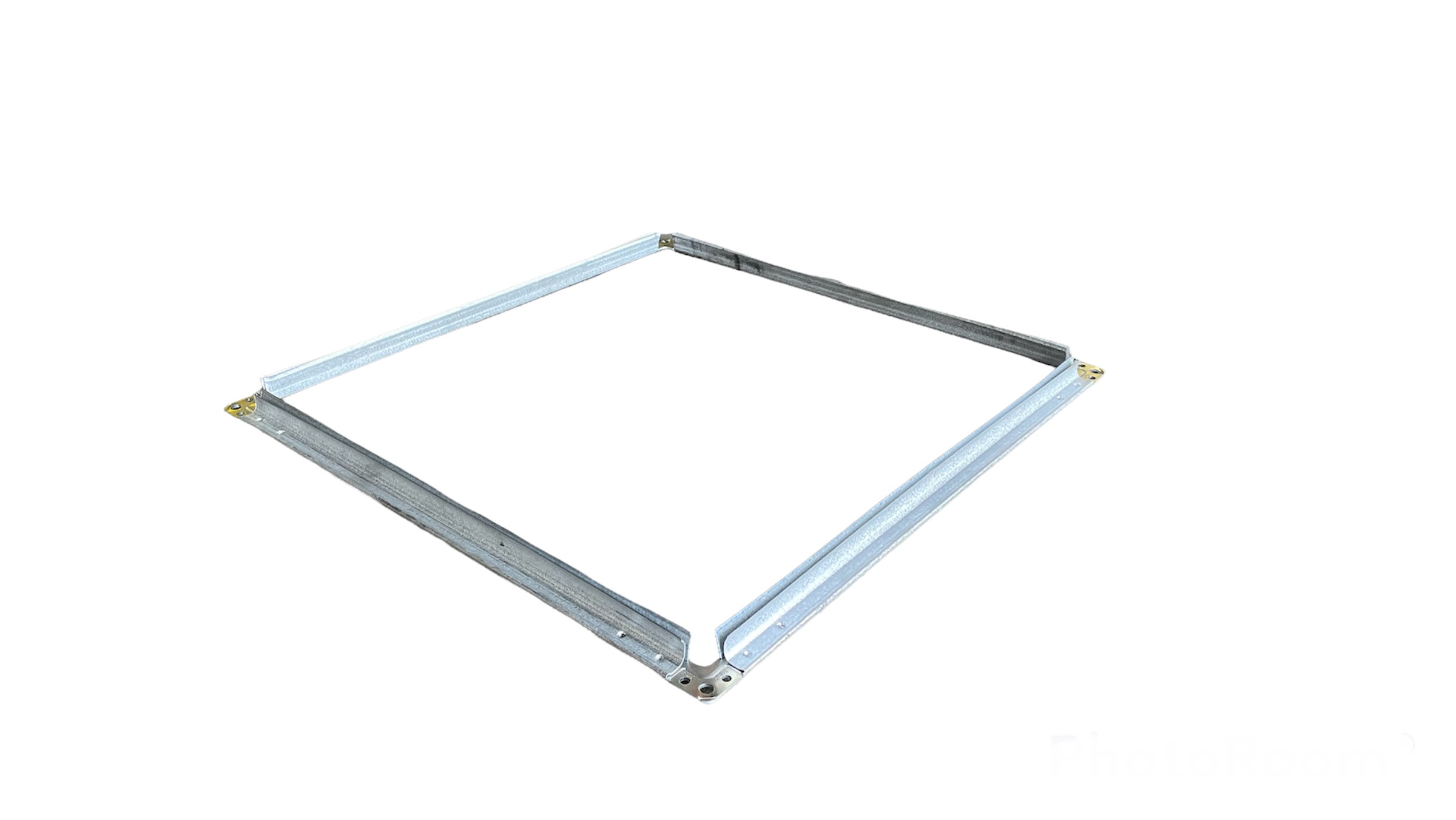

• Require 2 x flanges/1 x joint pack for each duct joint

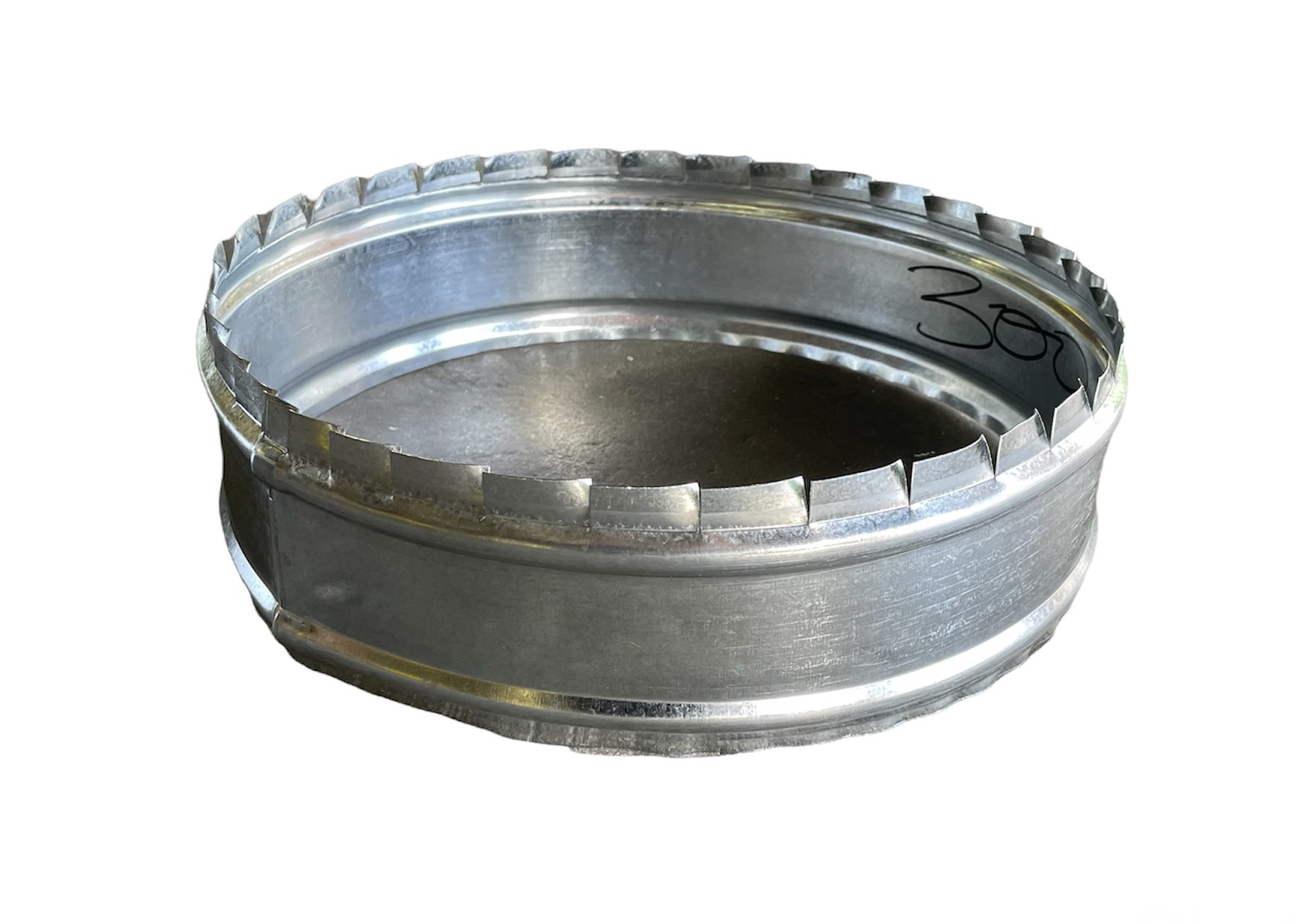

Collar (for dropper duct)

• Available in the following diameters:
250/300/350/400/450/500/550

FLEXIBLE DUCTING

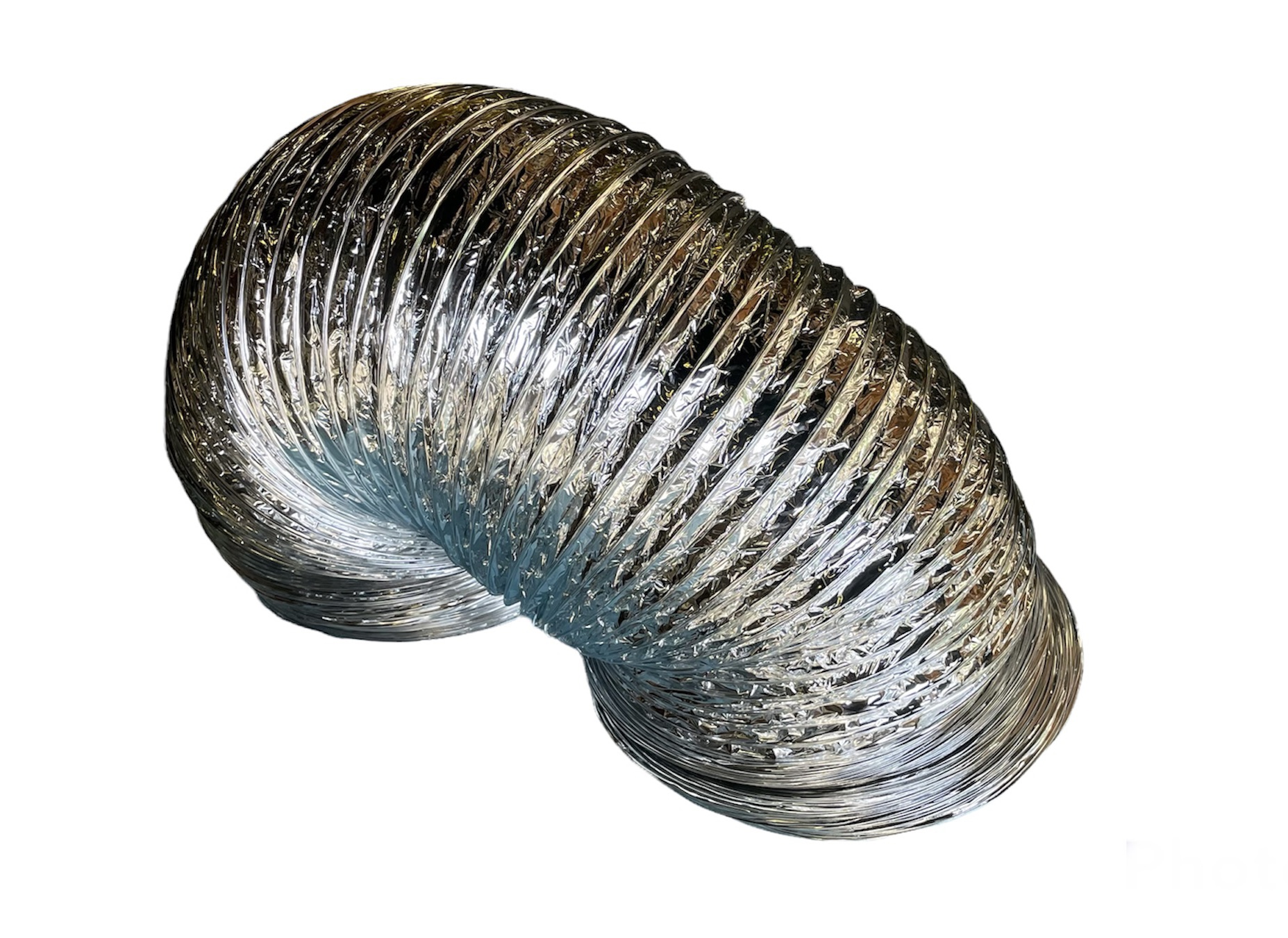

Quietflo Flexible Ducting (Uninsulated)

• Available in 6m lengths in the following diameters:
250/300/350/400/450/500/550

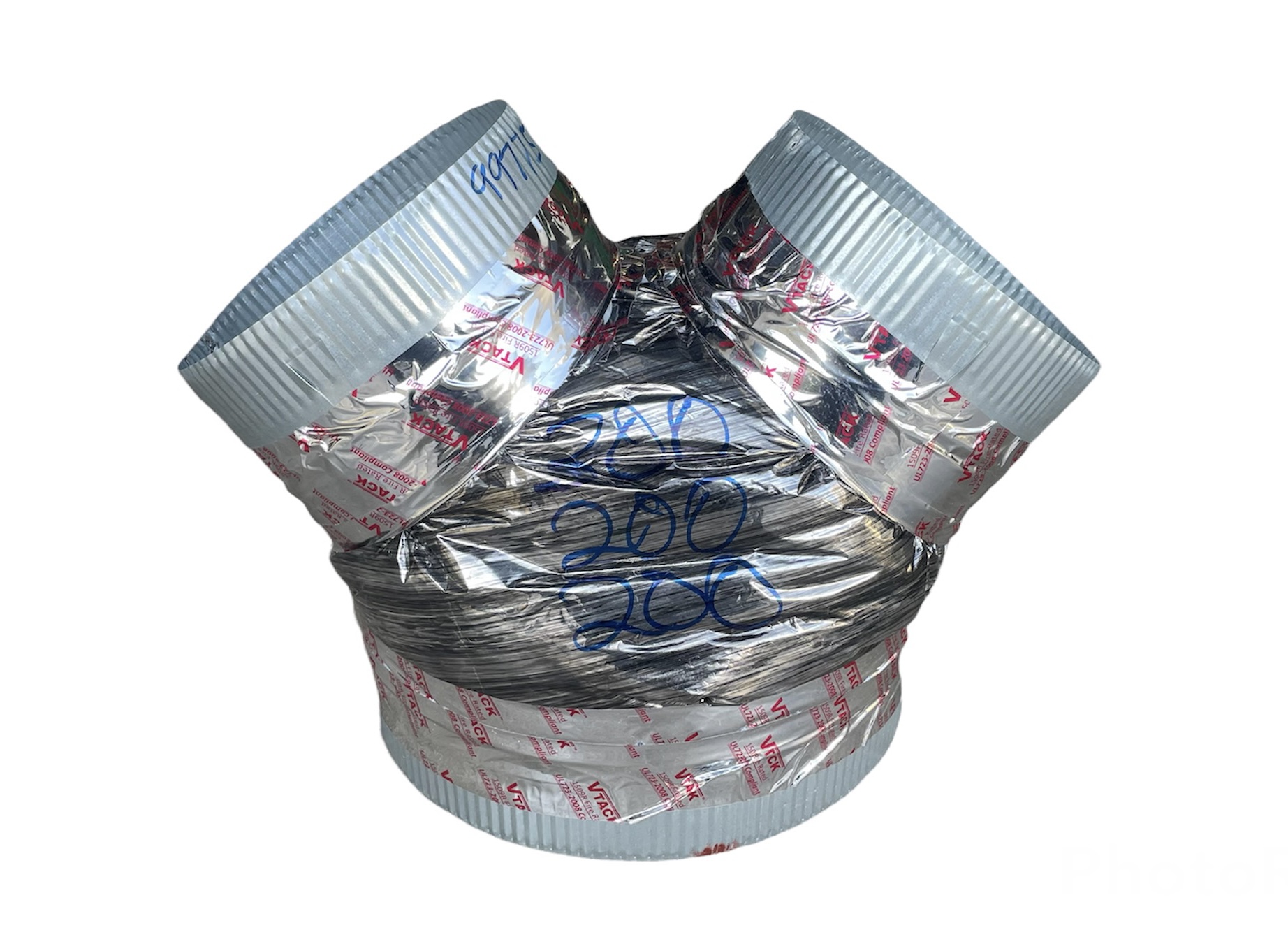

Supa-Y-Piece

• Available in any variation of the following diameter collars:
250/300/350/400/450/500/550

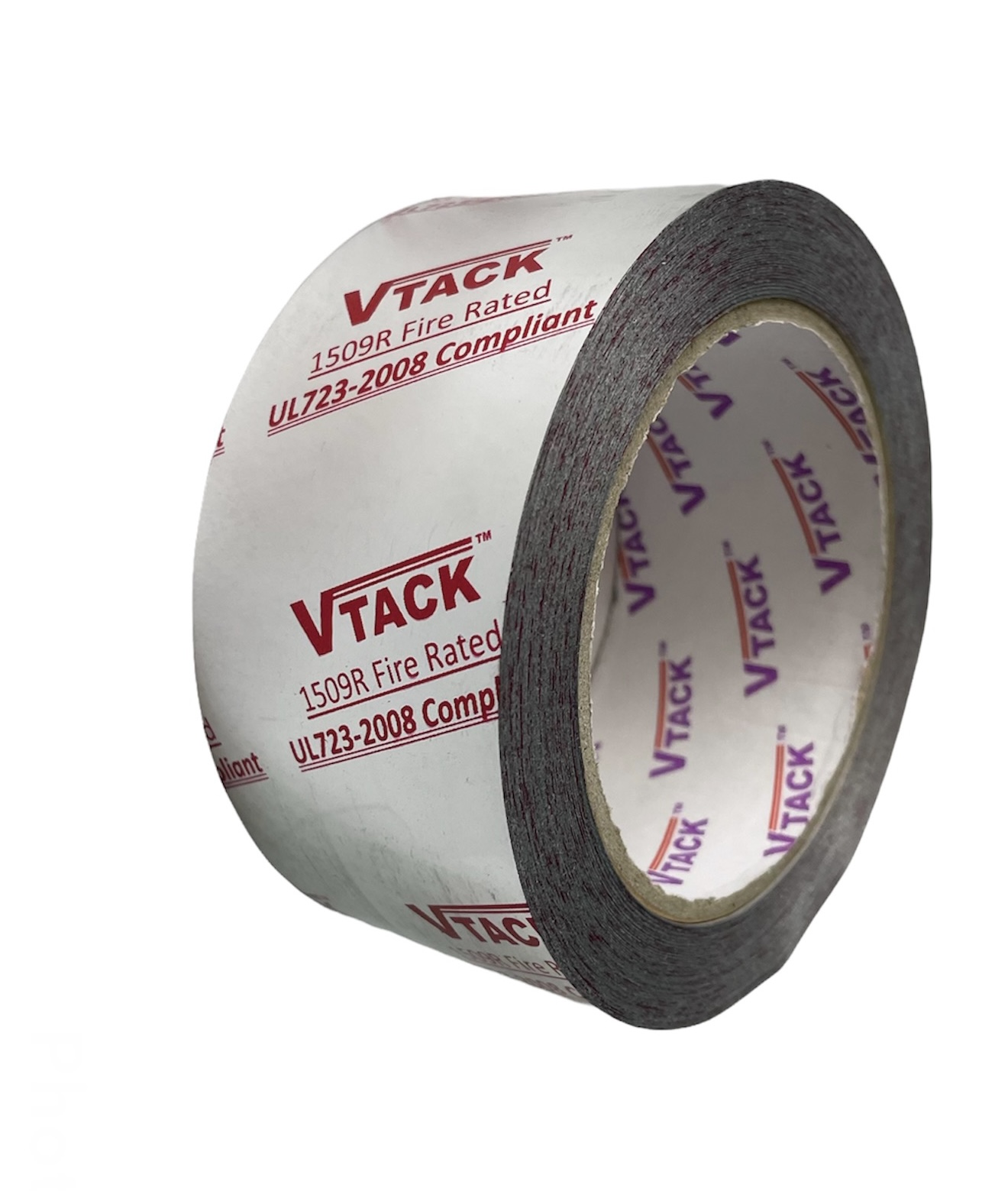

V Tape

• High Tack metalized foil tape
• 50m x 48mm

DUCT BEND

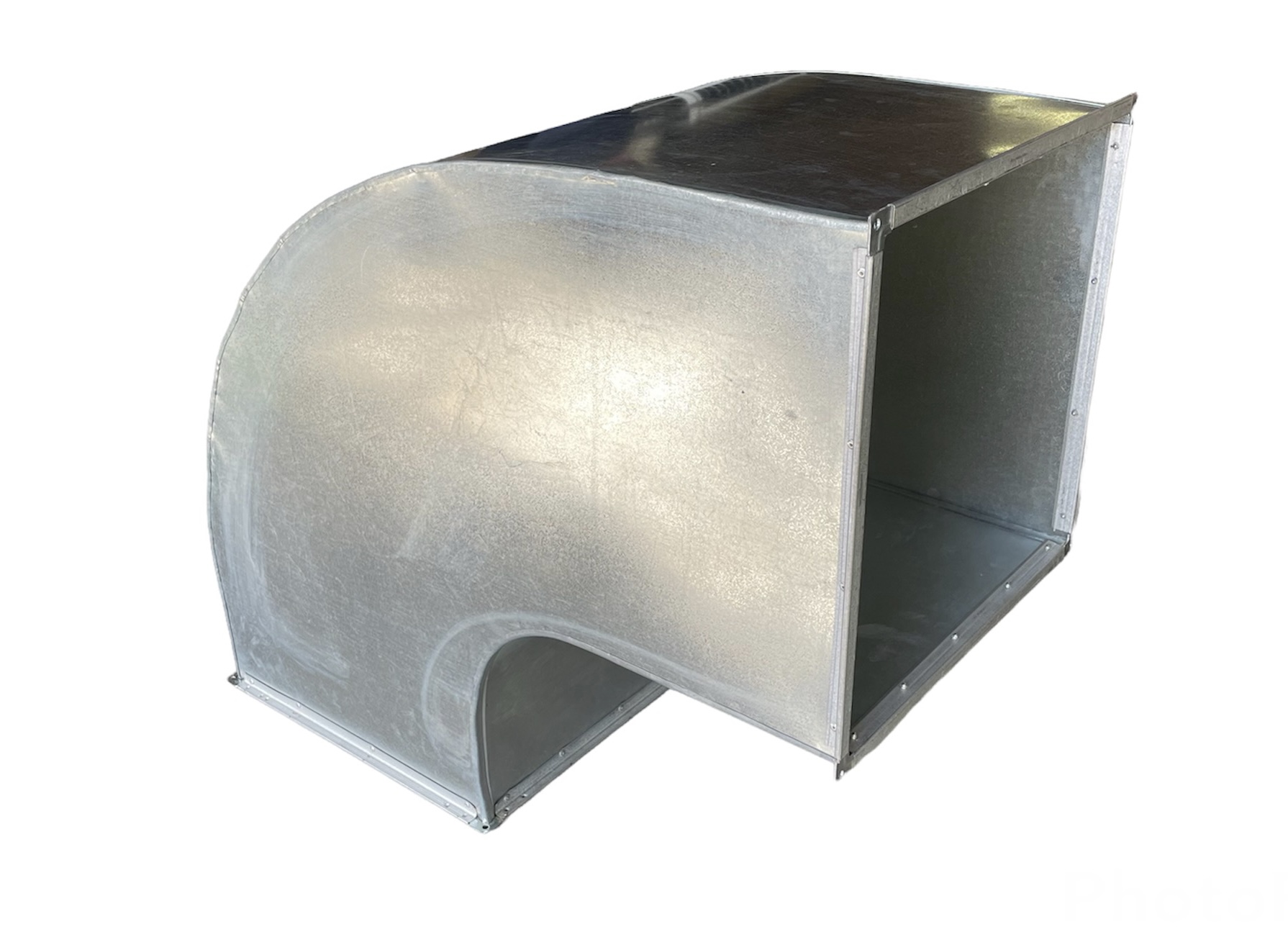

Duct Bend 90

• 545 x 545
• 690 x 690
• 585 x 1170
• Comes standard with one flange

DUCT SET

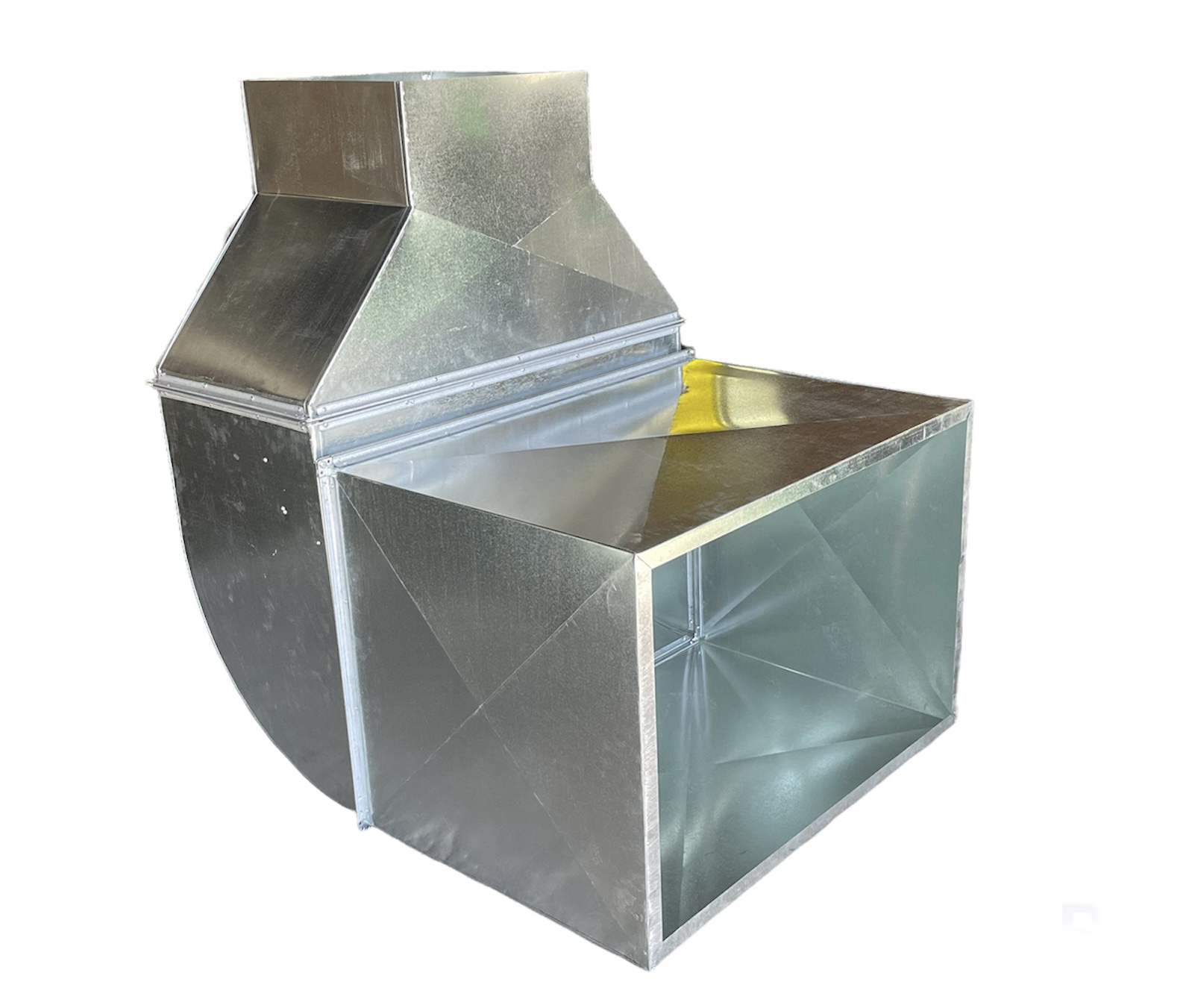

Duct Set – Wall Mount

4 sizes based to suite D cooler size:
D095
D125/D160
D195/D230/D255/L240
D400/D500

• Transformer piece below cooler
• Transformation bend
• Straight section to go through the wall and to
house Supply Air Grill

DUCT SET

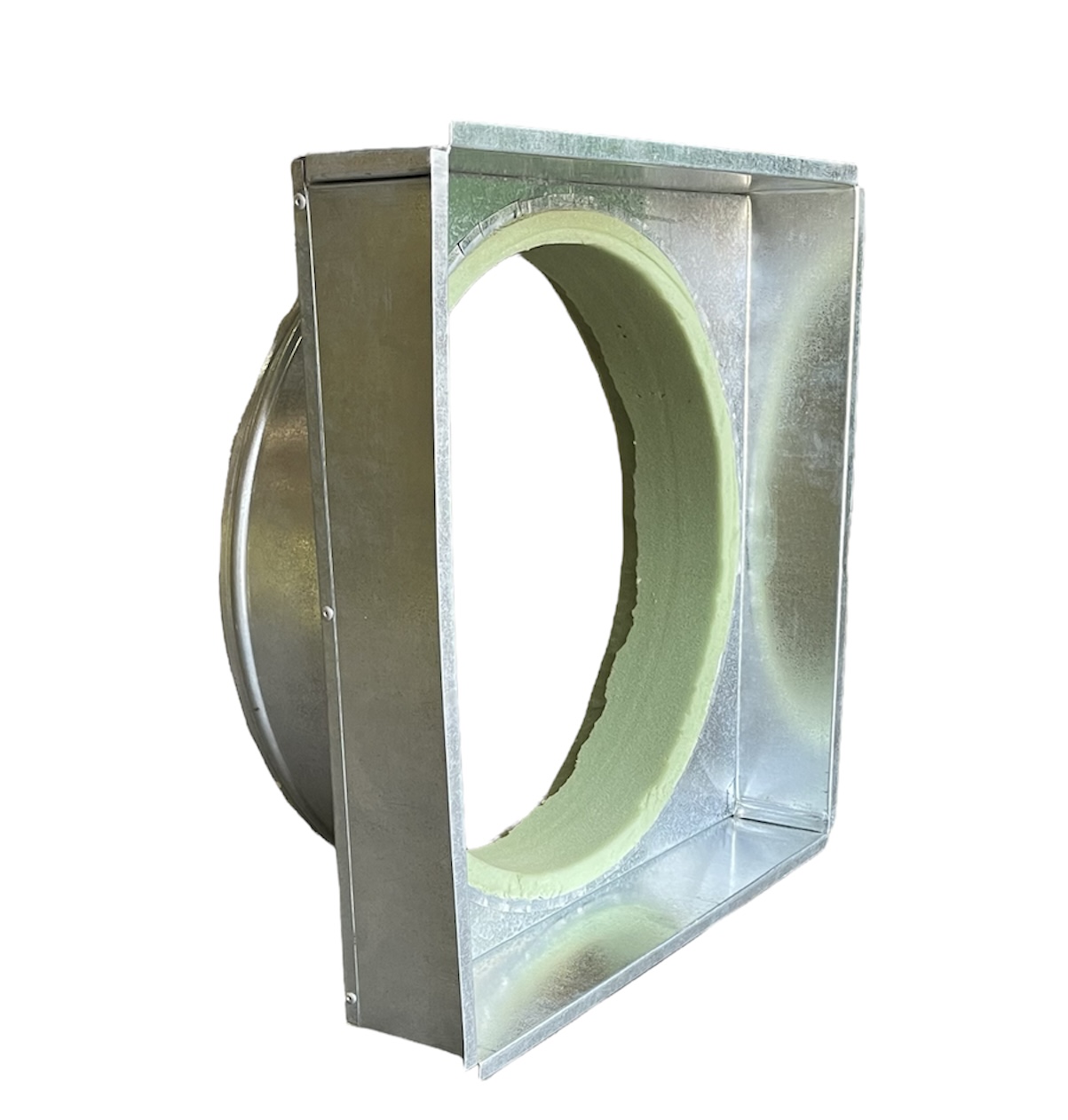

Duct Adaptor for S100

• or wall-mounted S100
Requires Supply Air Grille 587 x 587

DUCT ADAPTOR FLEXIBLE

Flexible Connector for S240 / Top Dis

• Square to round connector for joining
528mm diam cooler spigot to 690 x 690 flange

• Allows easy removal for servicing of cooler

FIXINGS

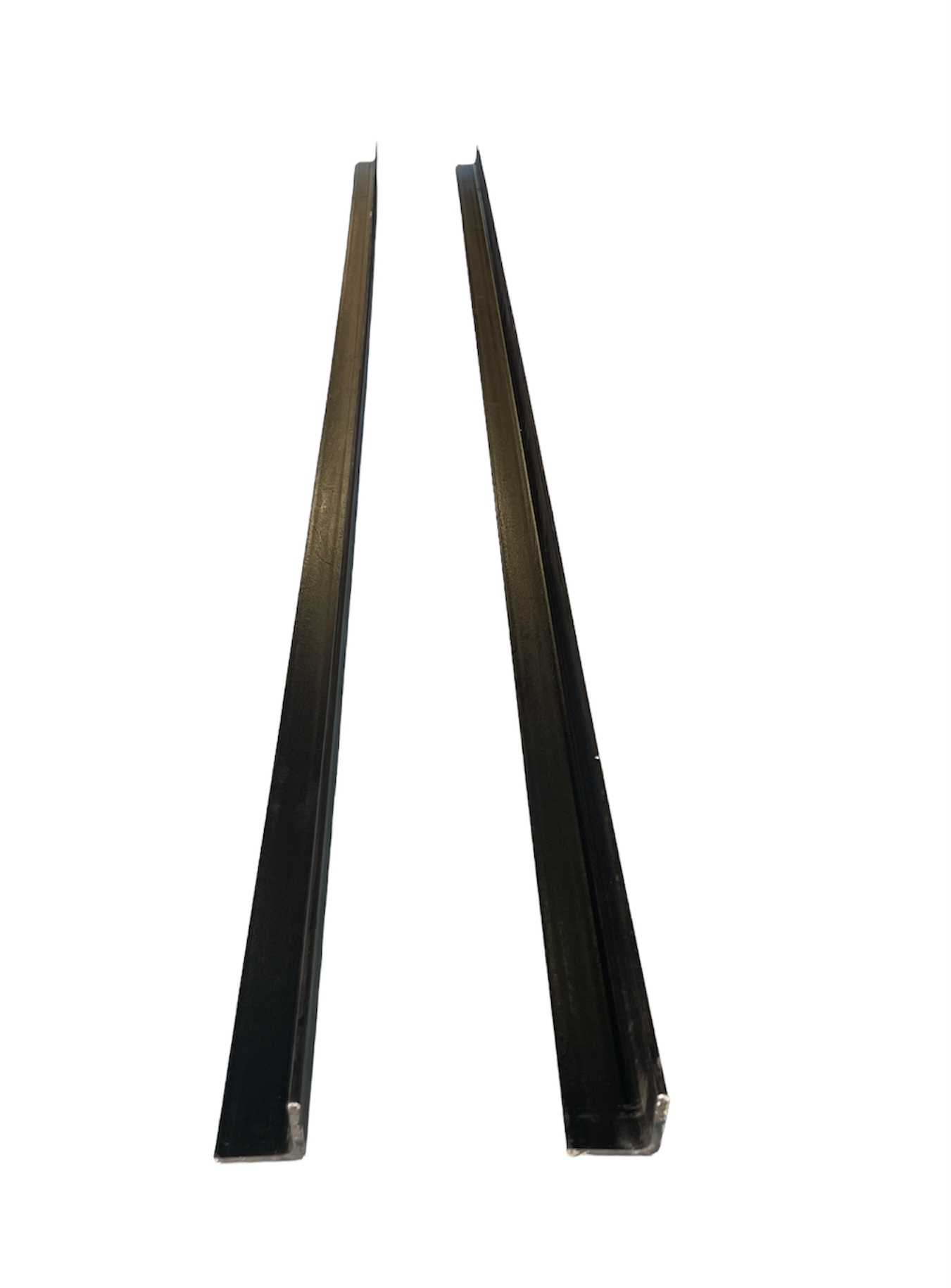

Angle Iron 40 x 40 x 5

• For fixing dropper duct to Sheeted Roof
• Angle iron to span from Purlin to Purlin
• Supplied in 2 x 2000 lengths

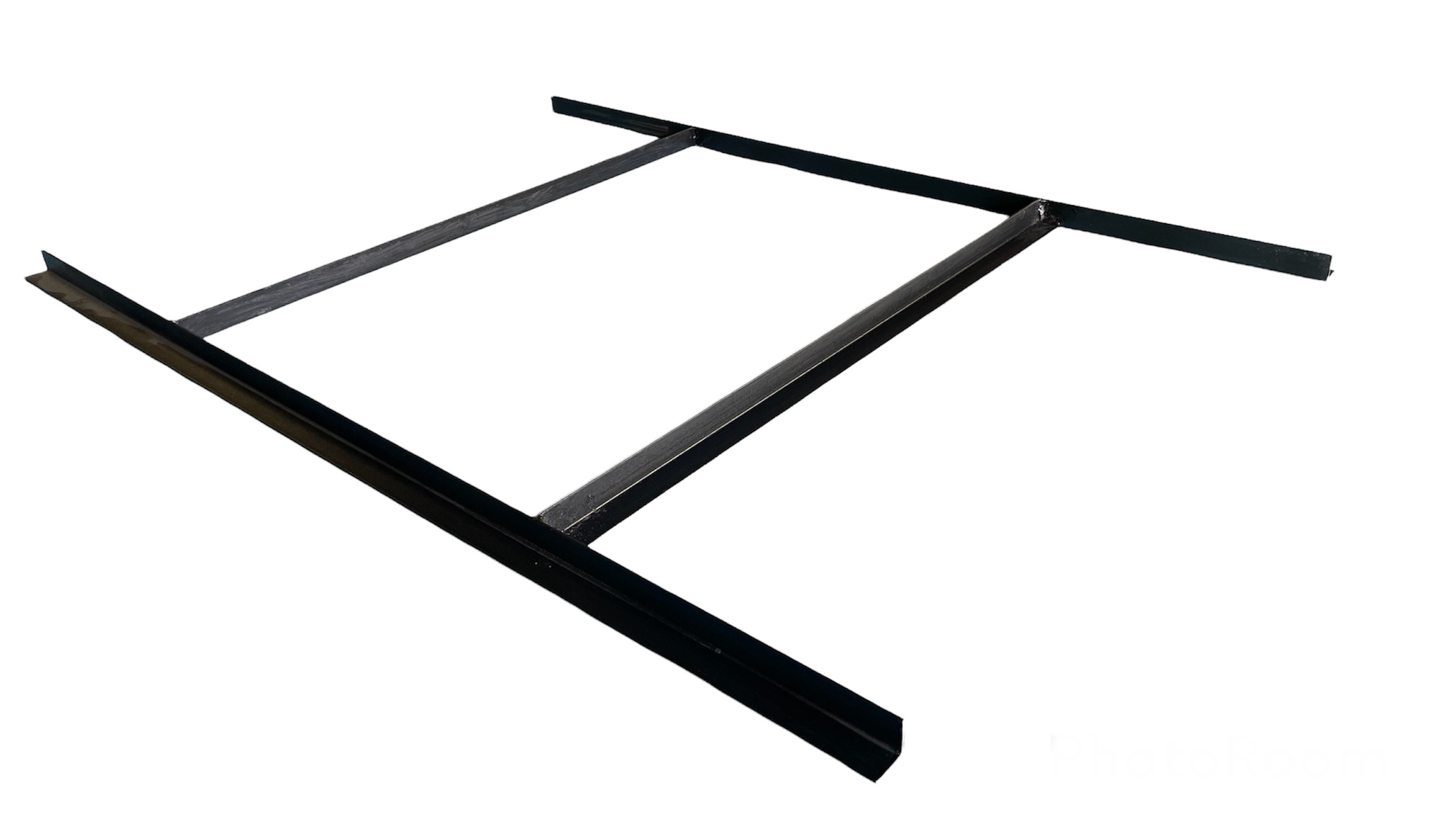

Mounting kit 1200 x 800 x 550

• For fixing dropper duct to Tiled Roof
• Mounting kit is fixed to Roof Trusses

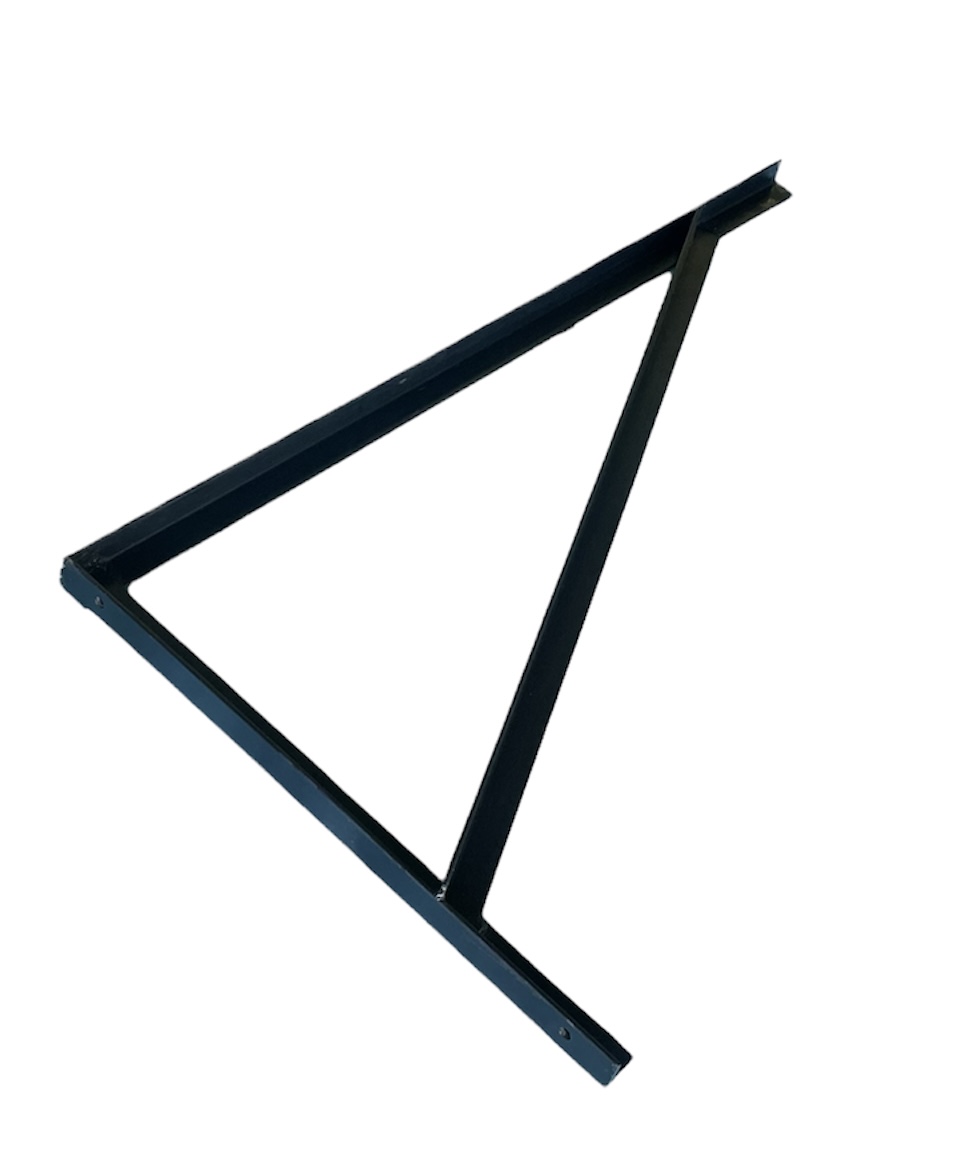

Mounting Bracket x 2

• For supporting S240 or Top Discharge coolers higher than floor level

FLASHINGS

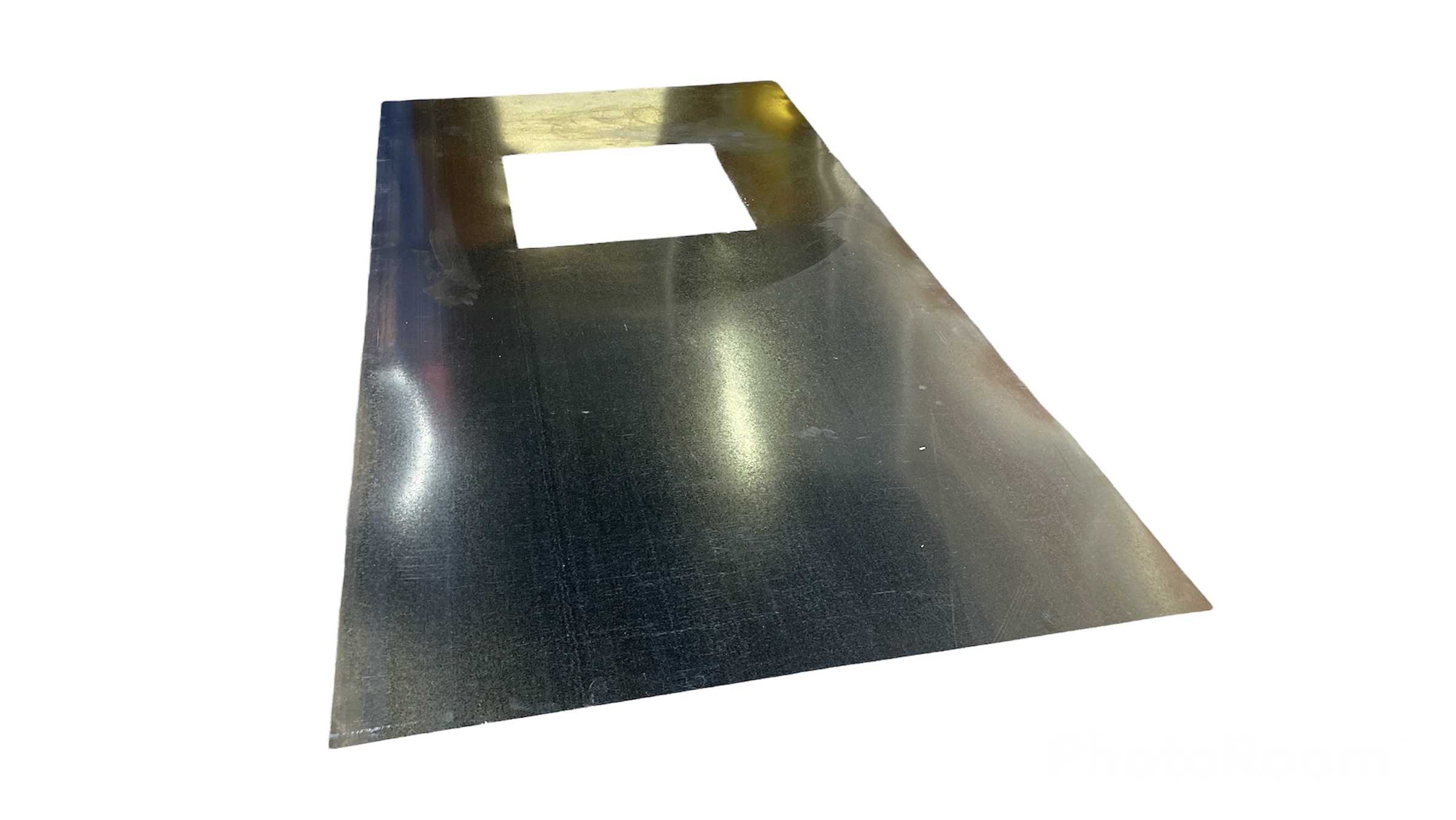

Galv Sheet 2450 x 1225 x 0.6mm

• Soaker sheets for flashing on sheeted roof
• Hole for sheet over dropper, then overlap until fitting under ridge flashing

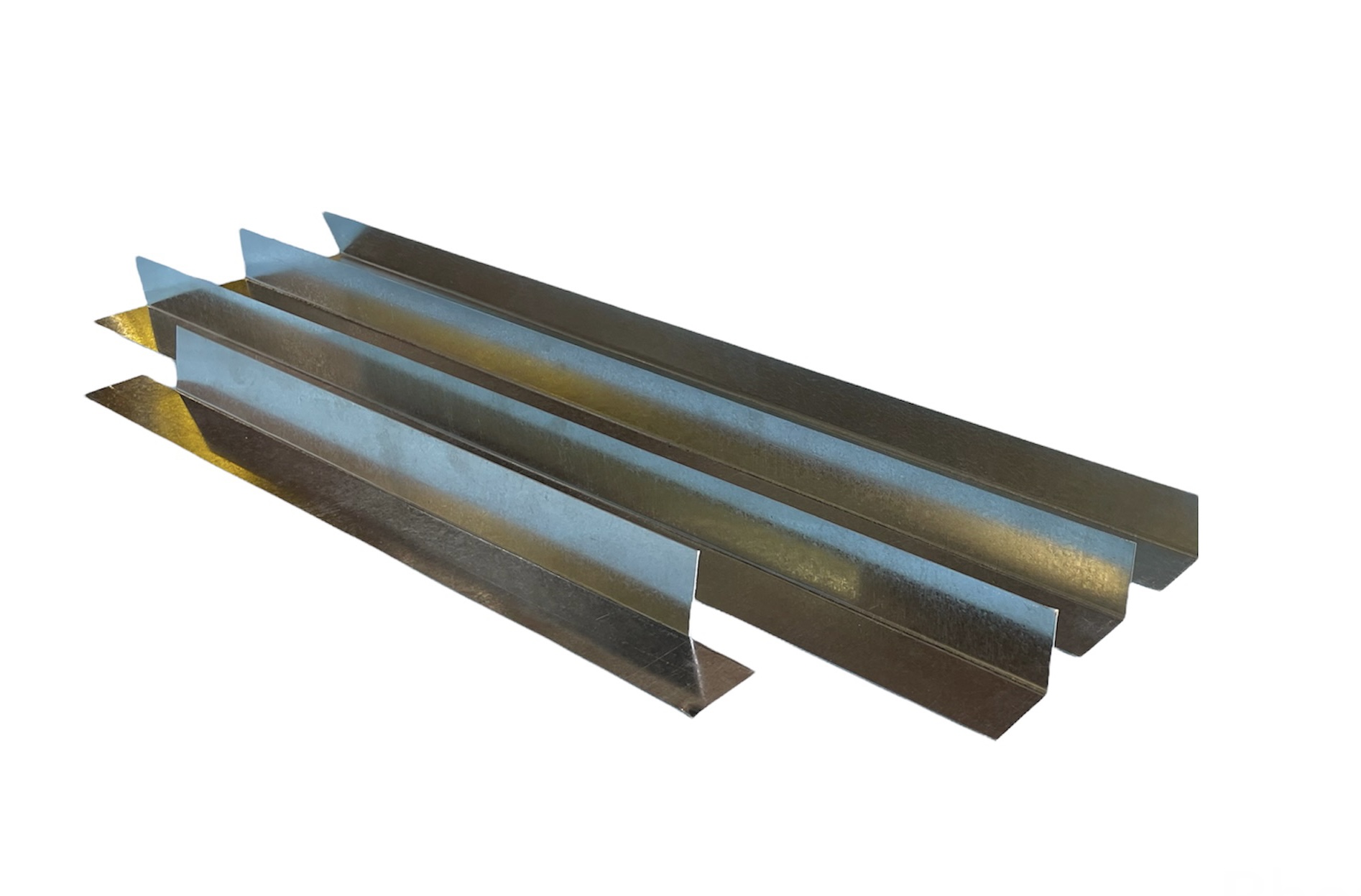

Flashing Closure Angles Set

• For flashing on sheeted roof
• Closes and seals space between dropper duct and Galv. sheet

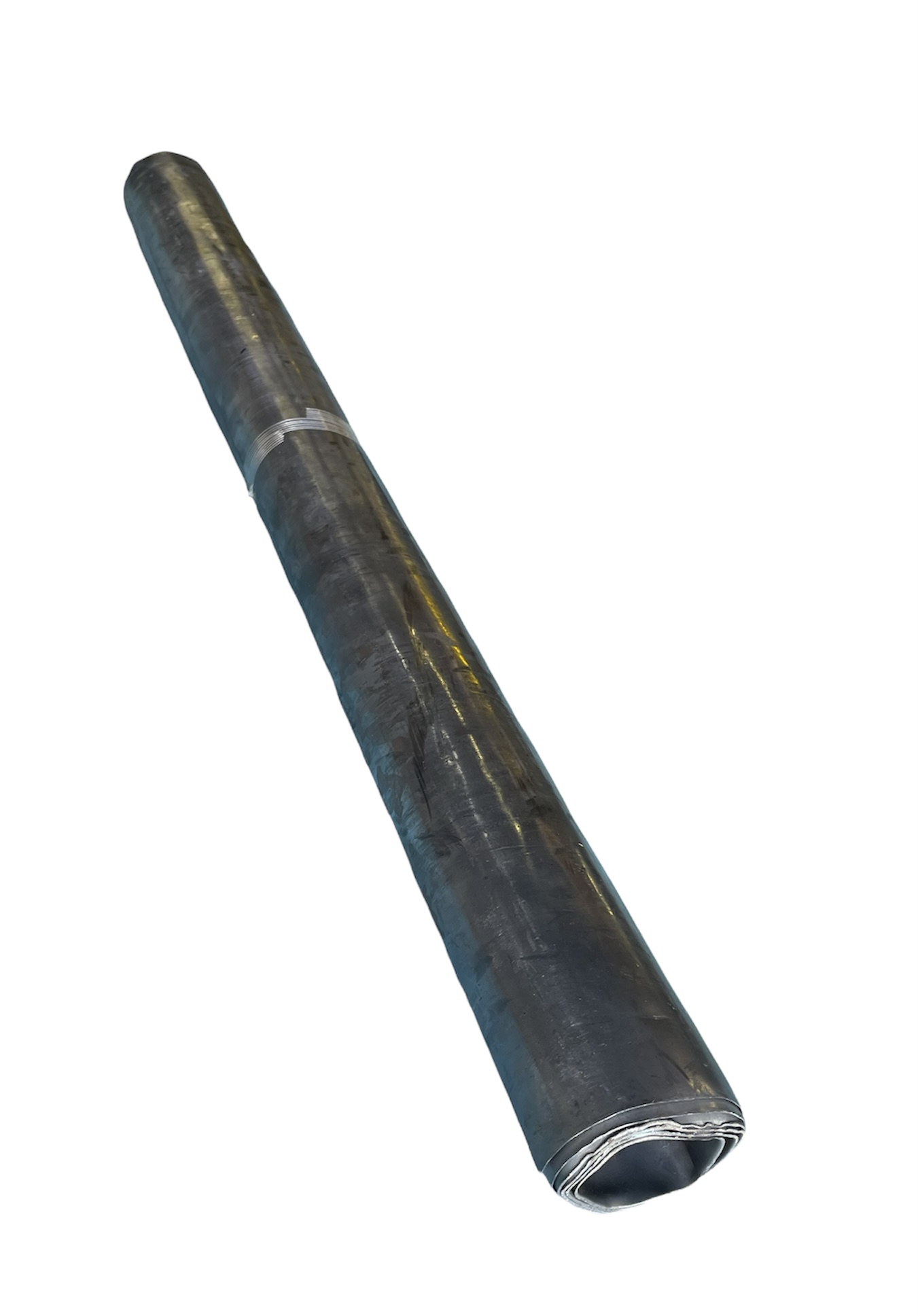

Lead Sheet 1200 x 900 x 1mm

• For flashing on Tiled Roof
• Lead sheet is used to seal around dropper duct and forms to shape of roof tiles

SEALER

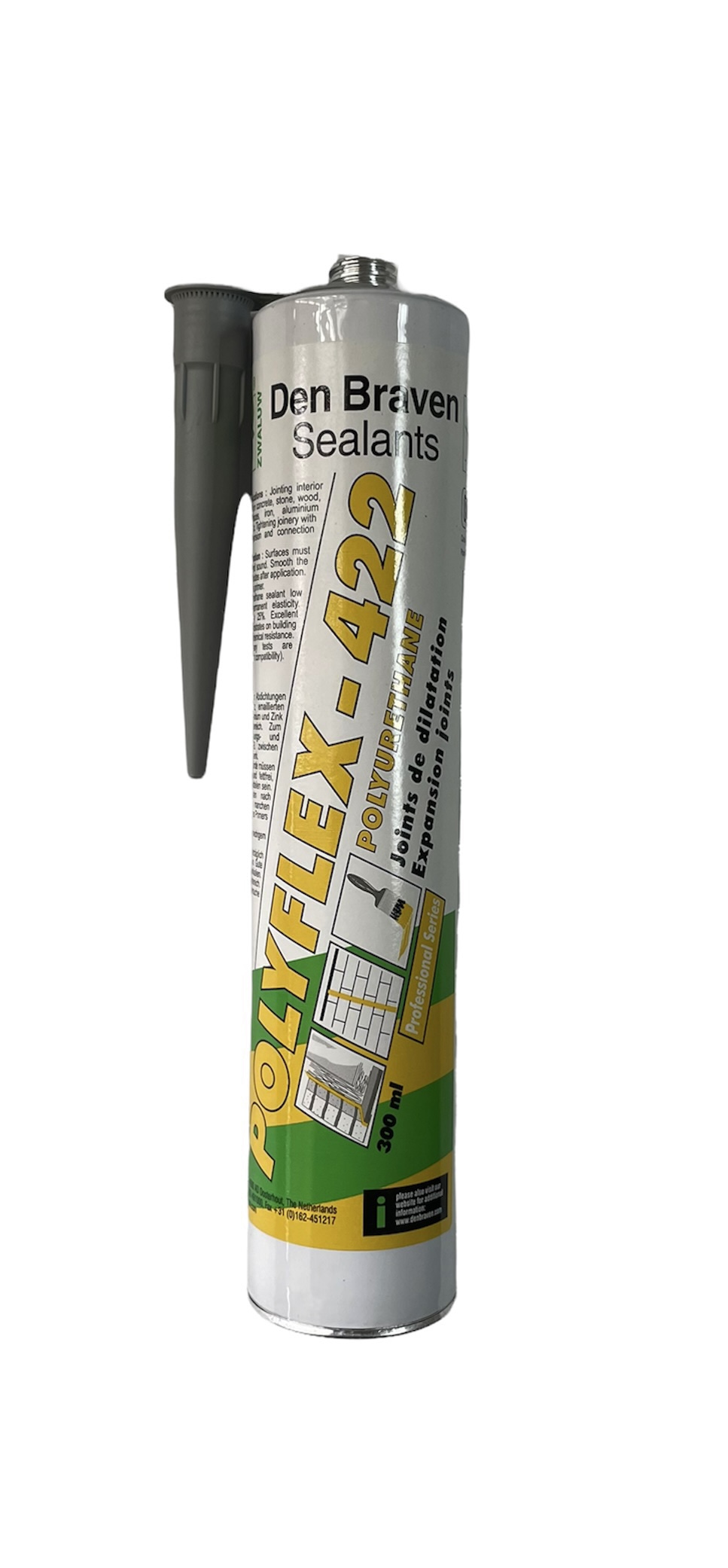

Sealer (Polyurethane based)

• For all roof types sealing
• Polyurethane-based is highly durable in the South African sun.

SUPPLY AND GRILLE

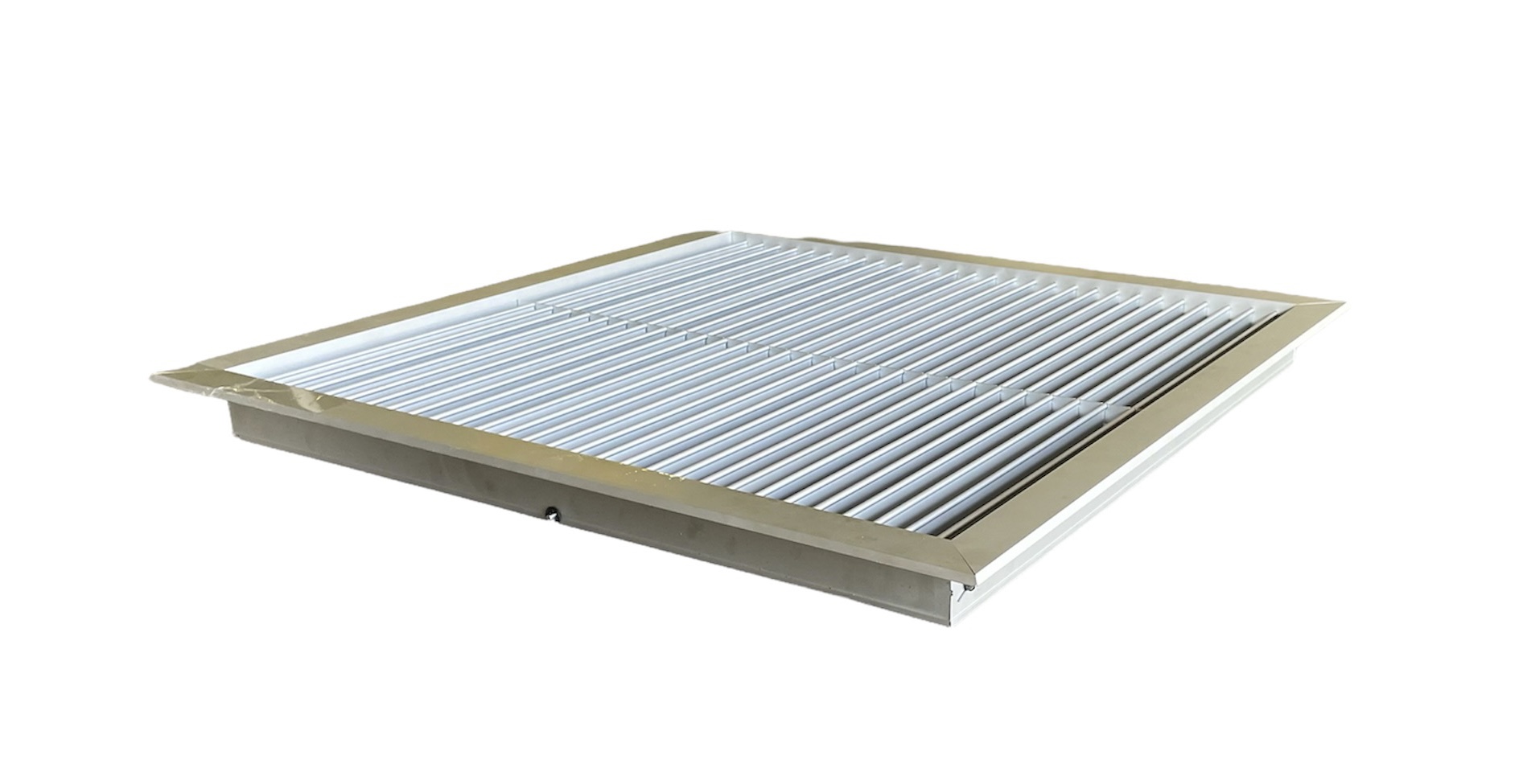

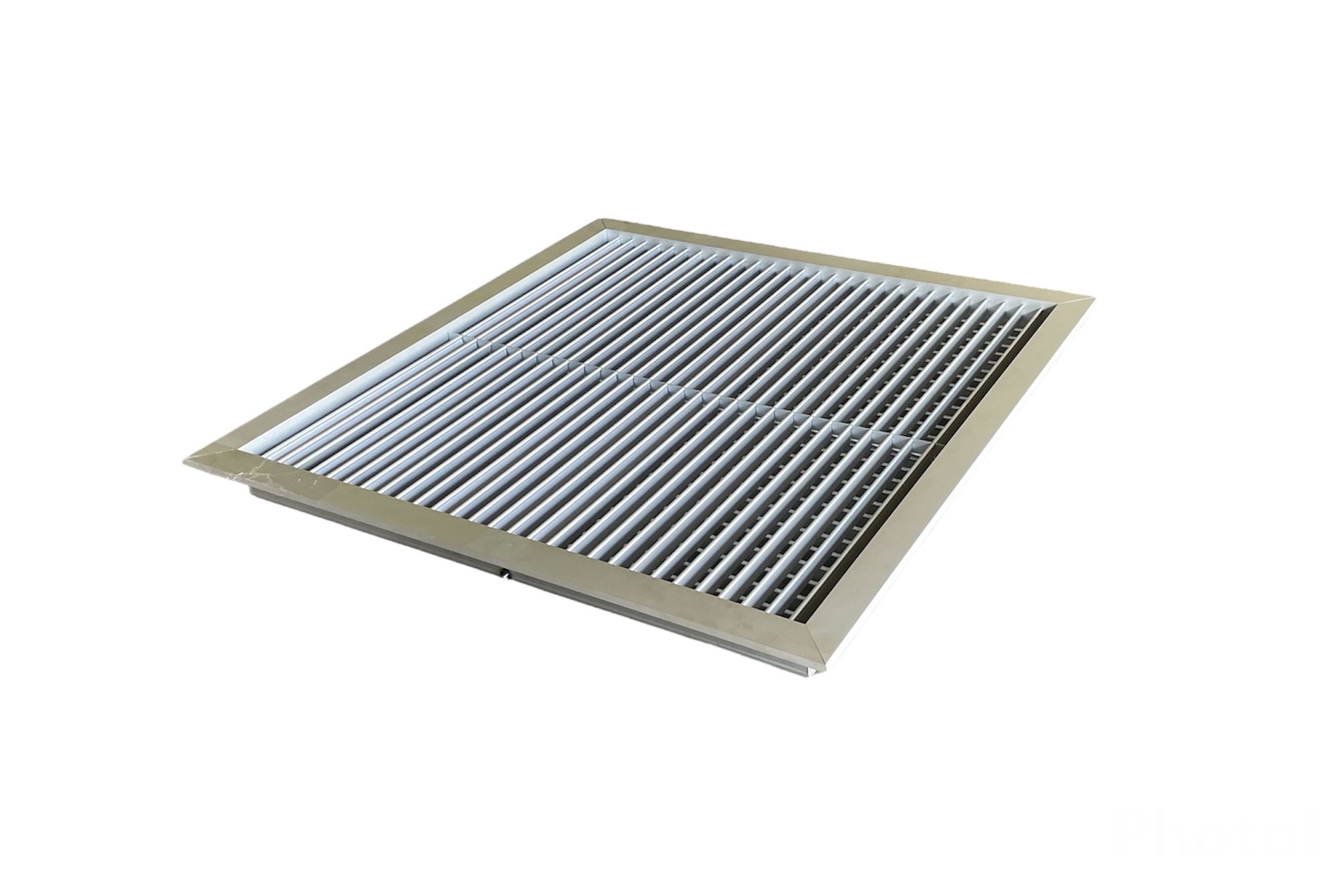

Supply Air Grille

• Double Deflection
• Natural Anodised
• No OBD

• Available in standard sizes for Duct Sets
587 x 587*
730 x 580*
775 x 730*
1075 x 730*
1575 x 1075*
*Opening sizes
