S100
| Cool Breeze S100
|
| Airflow = 2.15 m3/s (free air) |
| Airflow = 7 740 cm/h (free air) |
| Motor = 600w |
| Power Consumption = 0.8 Kw |
| Pad Size = 2 x 930h x 275w x 75mm
1 x 930h x 840w x 75mm |
| Cooler is low-profile designed to mount up against a wall and use S100 Duct Adaptor and Supply Air Grille (optional extra items) |
S240

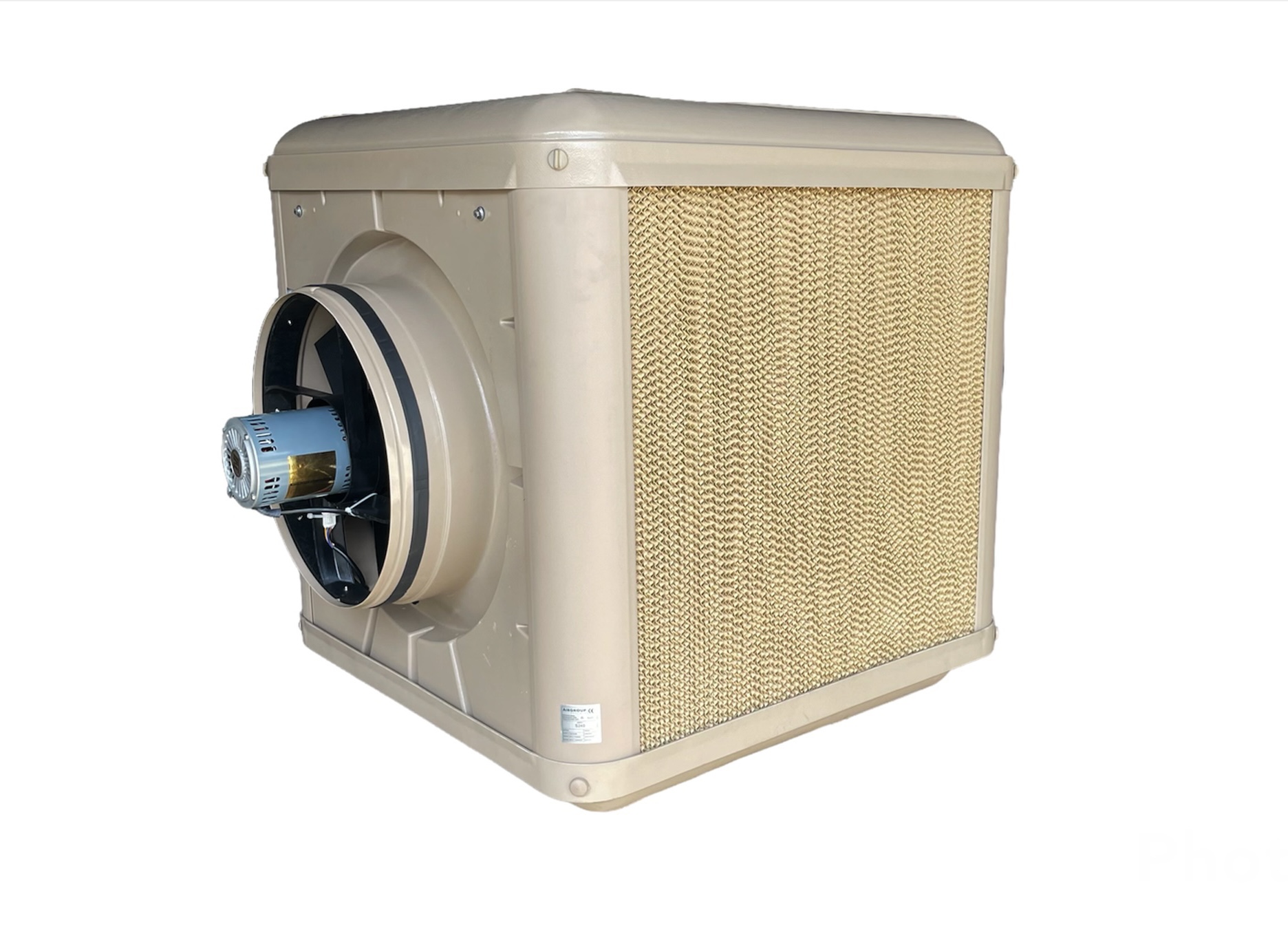

| Cool Breeze S240
|
| Airflow = 4.20 m3/s (free air) |
| Airflow = 15 120 cm/h (free air) |
| Motor = 1000w |
| Power Consumption = 1.32 Kw |
| Pad Size = 3 x 950h x 830w x 100mm |
| · Cooler can be mounted on the floor
or on wall brackets (extra item – 2 required) · Advisable to use Flexible connector to 690×690 flange to facilitate easy servicing of cooler when ducting is in place
|
FULL SPECS – S SERIES (SIDE DISCHARGE)
|
MODELS |
S100 |
S240 |
|||
|
Airflow |
cm/s |
2.15 |
4.20 |
||
|
|
cm/h |
7 740 |
15 120 |
||
|
Motor |
Voltage (50 Hz) |
220 – 240 (50 Hz) |
|||
|
|
CSR Single phase |
600 |
1000 |
||
|
|
Capacitor |
30 uF |
|||
|
|
Thermal overload prot. |
Yes |
|||
|
|
Power – Amps |
3.6 |
6.0 |
||
|
|
Power – Kw |
0.8 |
1.32 |
||
|
|
RPM – low / high |
750/1200 |
850/1370 |
||
|
Fan |
Auswing II 35º Pitch |
X |
|
||
|
|
Auswing II 40º Pitch |
|
|
||
|
|
PowerFlow Fixed Pitch |
|
X |
||
|
|
Diameter (mm) |
524 |
|||
|
Pump |
Voltage (50 Hz) |
220 – 240 |
|||
|
|
Thermal overload UL cert. |
Yes |
|||
|
|
Insulation |
“F” Class |
|||
|
|
Performance (litres/minute) |
29.5 |
|||
|
|
Power |
0.44 Amps |
|||
|
|
RPM |
2550 |
|||
|
Water |
Inlet connection |
½ Inch BSP |
|||
|
|
Drain |
40mm |
40mm |
||
|
|
Sump capacity |
5 – 8 litres |
10 – 12 litres |
||
|
|
Water level |
Hall Effect Sensor |
|||
|
Filter Media |
Size (mm) |
930h x 840w x 1 930h x 270w x 2 |
950h x 830w x 3 |
||
|
|
Thickness (mm) |
75 |
100 |
||
|
Size |
Length x Width (mm) |
1070 x 525 |
1130 x 1130 |
||
|
|
Height (mm) |
1120 |
1150 |
||
|
|
Outlet diameter (mm) |
528 |
528 |
||
|
|
Duct useable size (mm) |
587×587 |
690×690 |
||
|
Shipping weight (kg) |
40 |
65 |
|||
|
Operating weight (kg) |
53 |
75 |
|||
|
Colours |
Beige |
Available ex-stock in South Africa |
|||
|
|
Red, Green, Grey |
Available as special order from Australia |
|||
