CASCADE KITS
Use 1 controller to control up to 5 coolers
Cascade Kit – 2007
• For all MRU PC Board coolers

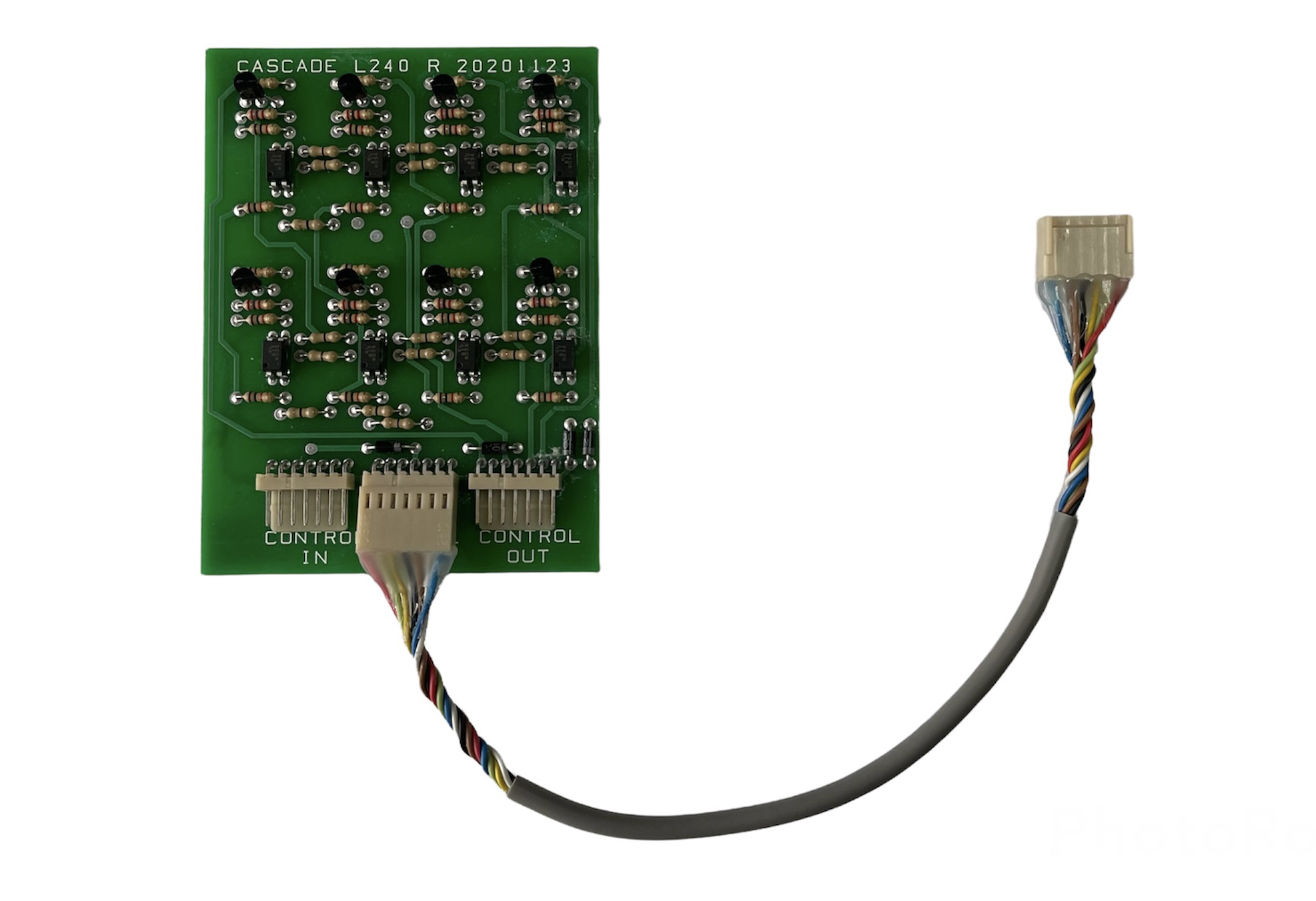

Cascade Kit – L240 R
• For all L240 R coolers
CONTROLLERS
Control Pack QA
Multi-speed automatic controller (for MRU PC B)
• Cool / Fan / Exhaust
• LCD Display
• Auto temperature setting
• 100 Fan speed settings
• Count-down timer
Control Pack QM
10 Speed manual controller (for MRU PC B)
• Cool / Fan / Exhaust
• LED Display
• 10 Fan speed settings

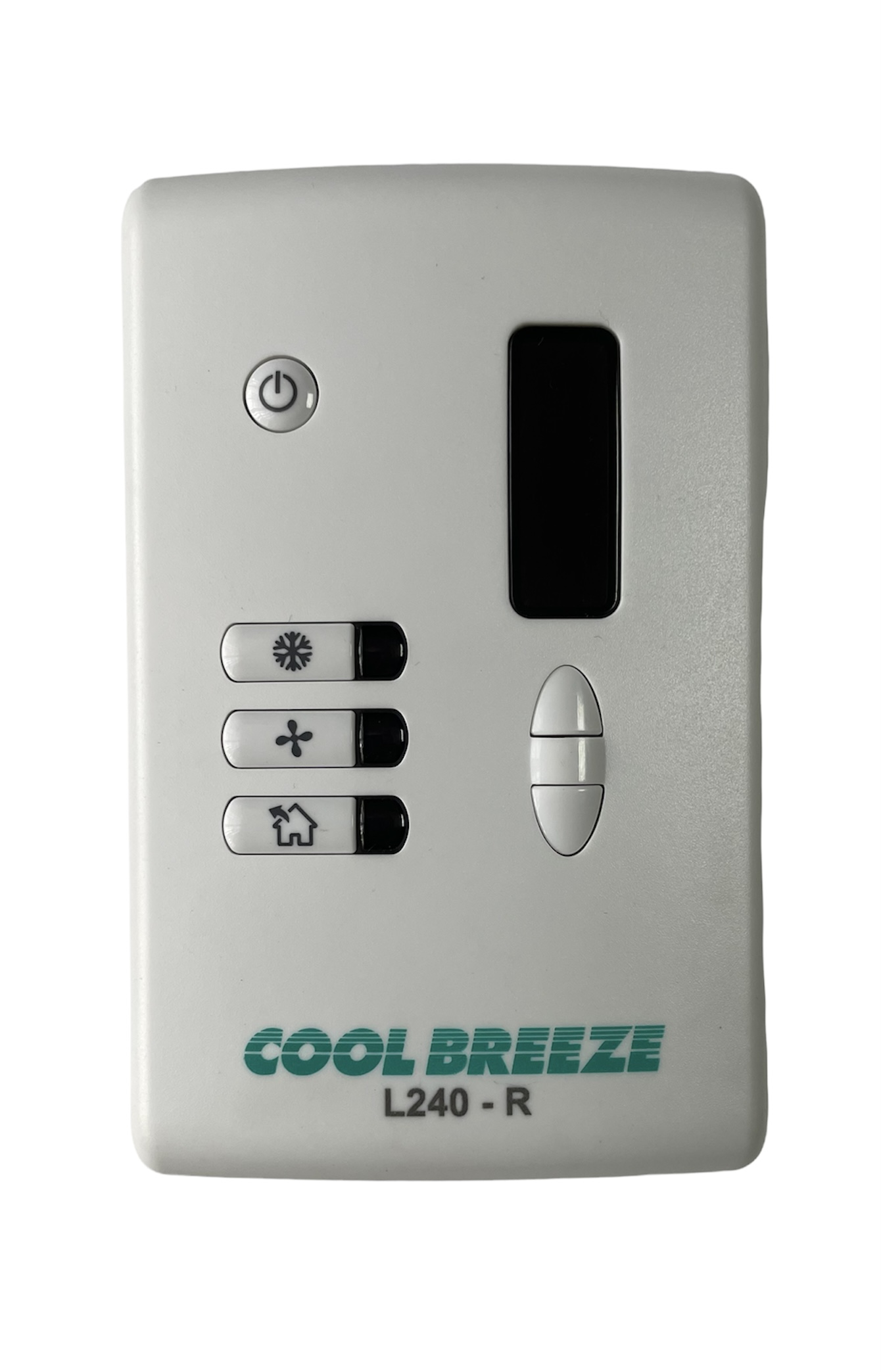

Control Pack L240 – 2 Speed R
For all L240 2-speed coolers (new & older type)
• Cool / Fan / Exhaust
• LED Display2Speed–Low/High
• Mains power fail Auto-Restart option
• Can be used on both L240 2 Speed
• Reversible and Non-reversible coolers
• Not for use with older 1-speed L240

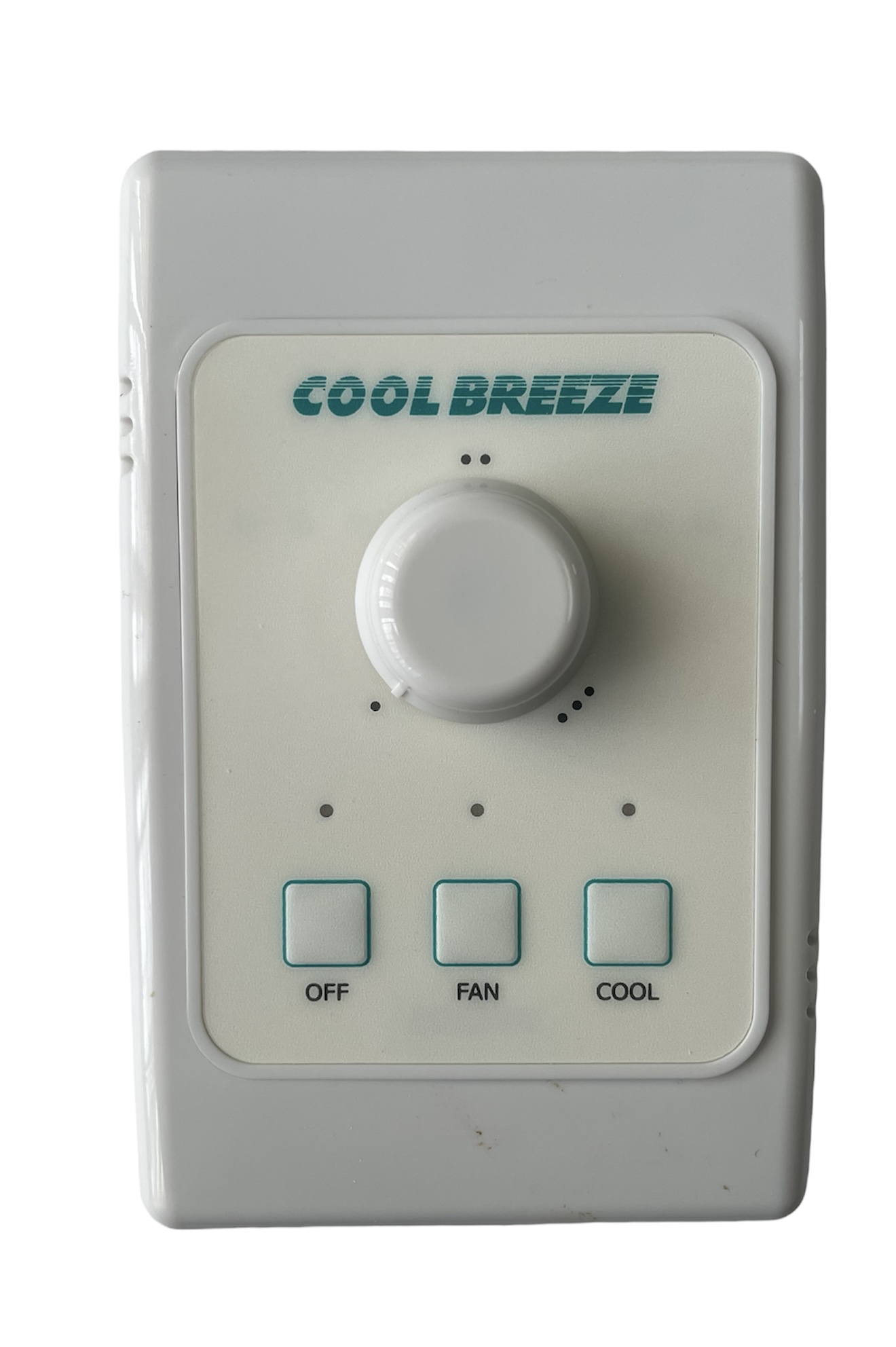

Control Pack CP R
• For use only with Roof Unit Board CF (found on older type Twin Fan coolers)
CONTROL CABLE

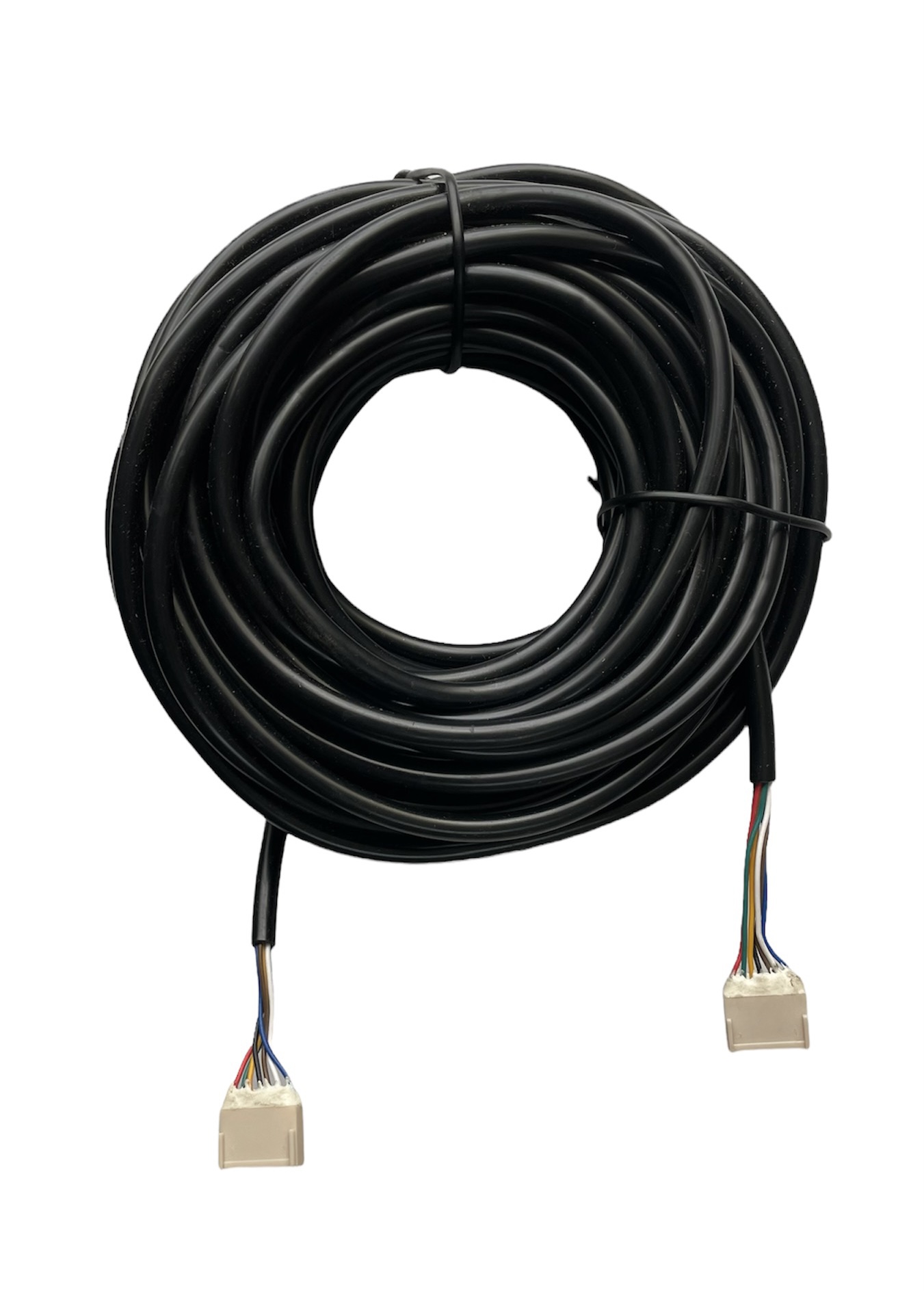

Control Cable replacement 10m
• Standard for all Cool Breeze coolers
CORNER PACKS

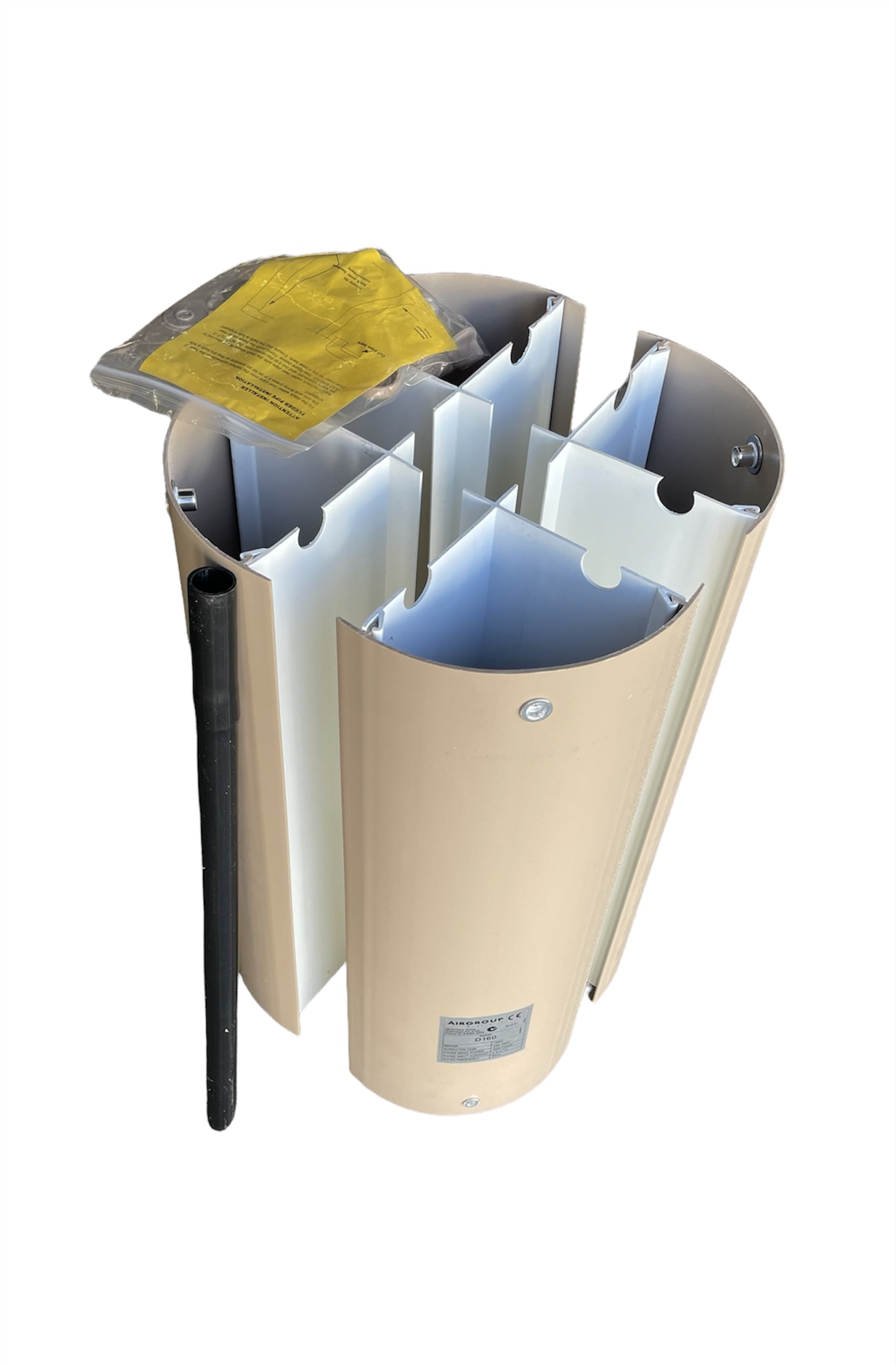

Corner Packs
• Include 4 x corner posts, riser pipe, fixing pack
• Available for
D095, D125, D160, D195, D230, D255
D400, D500
L240
S240, S100

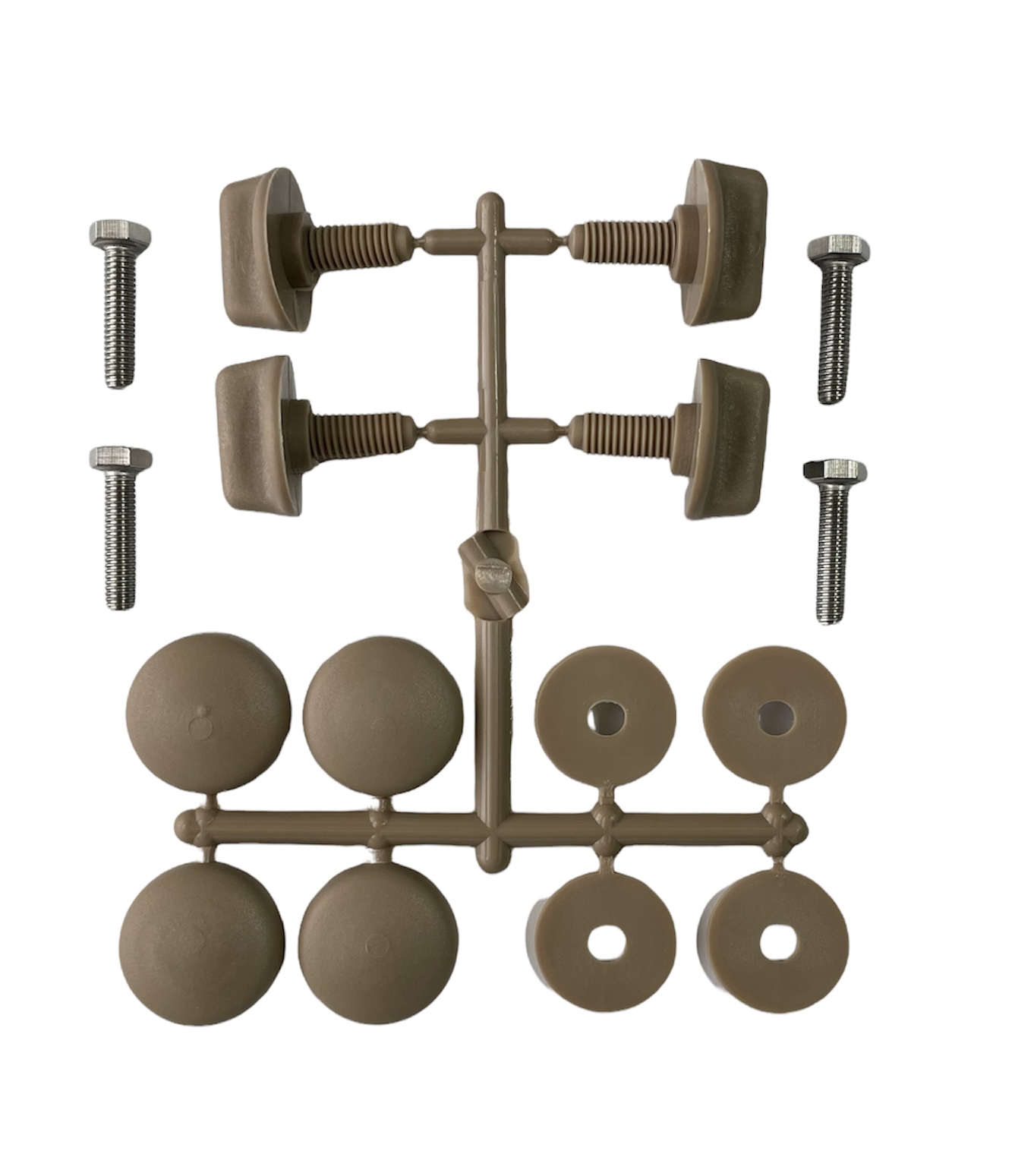

Corner Fixing Pack
• For all current Cool Breeze coolers
• Older type fixing with 8 stainless steel bolts available by request.
DUMP VALVE

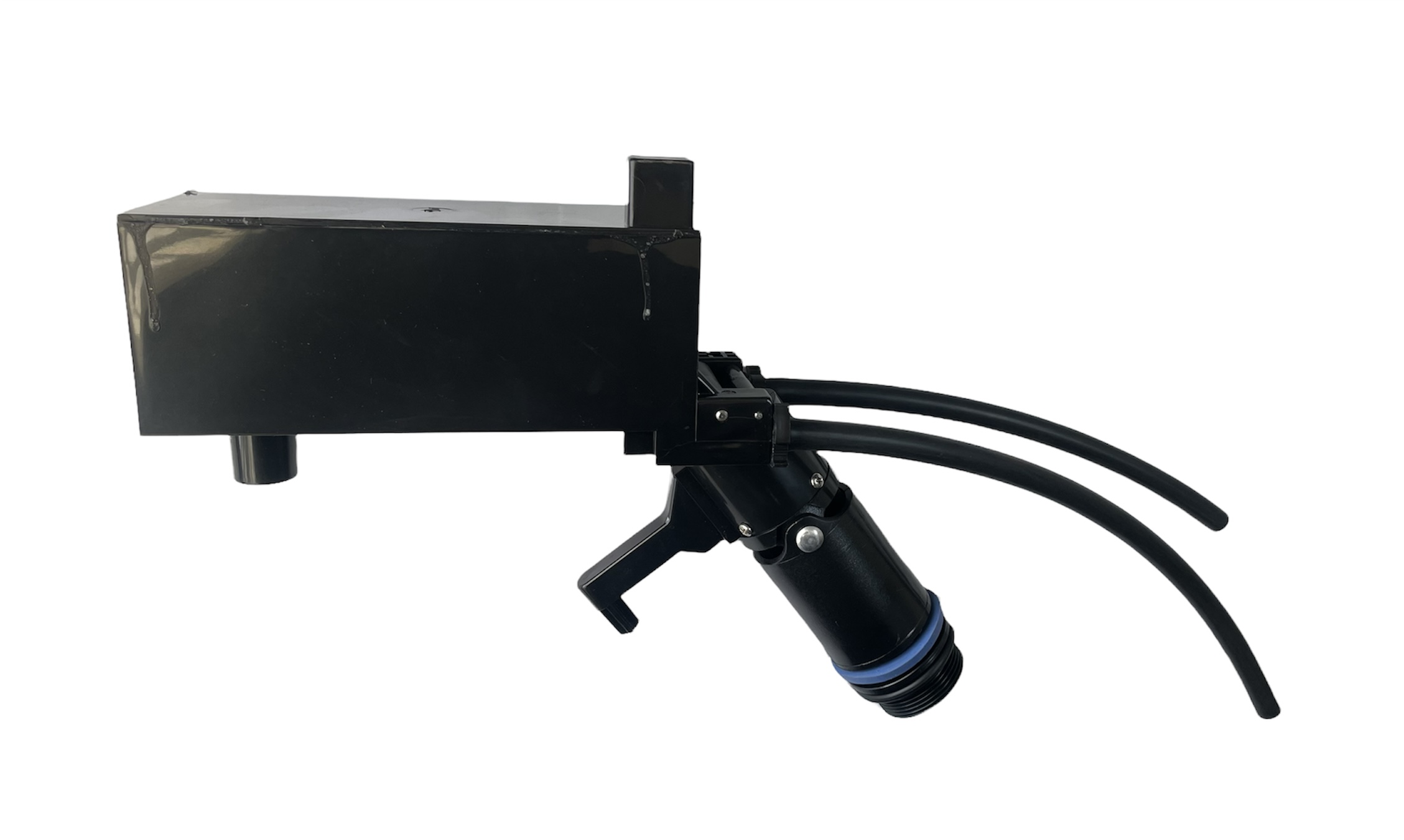

Dump Valve / Overflow Unit – Counter Weight
• For coolers with MRU, barbed solenoid, MS Float valve

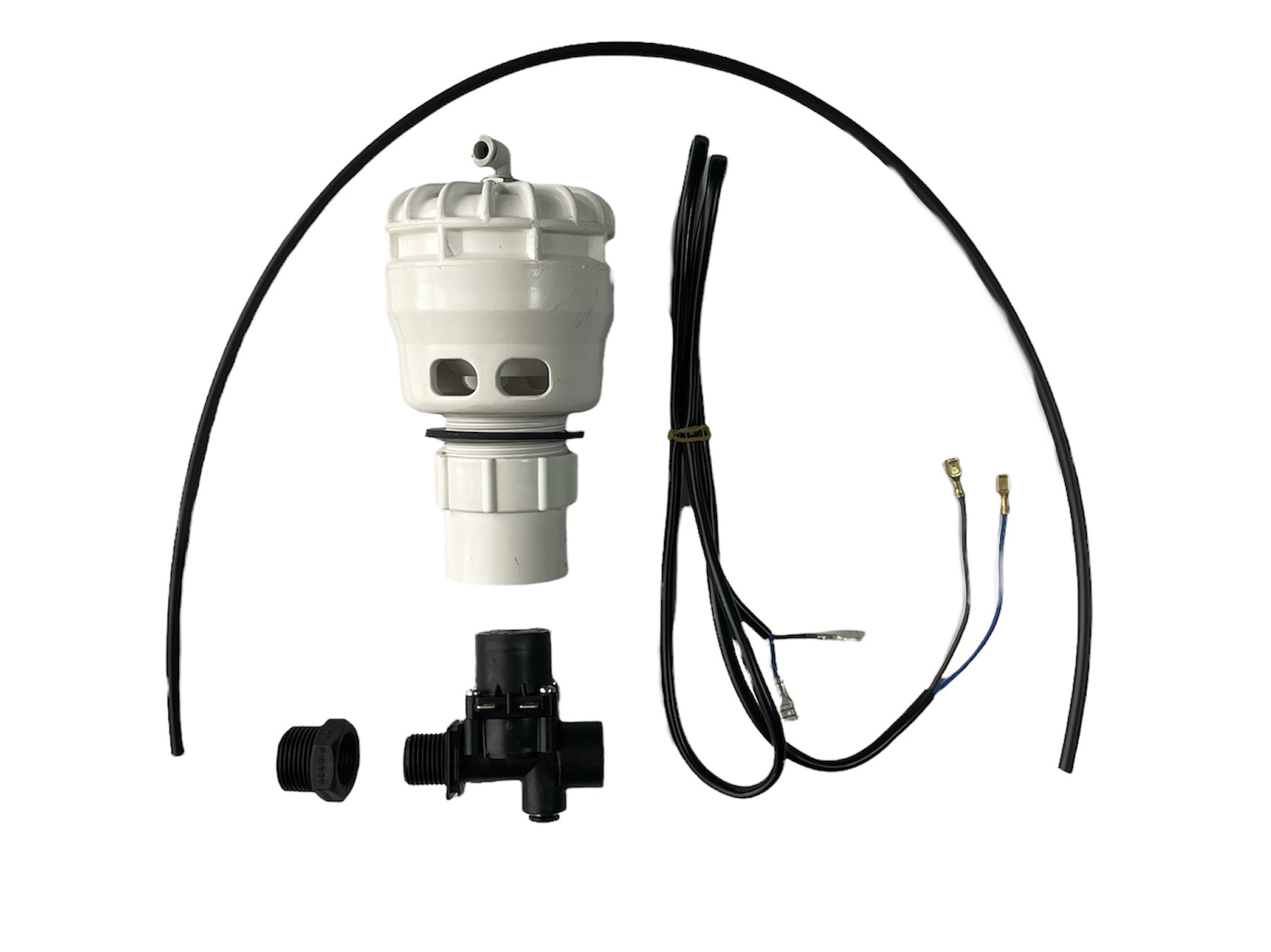

Dump Valve 220v Replacement – bleed off
• Replaces 220v dump valves found in older coolers
Dump Valve 220v Replacement – diaphragm
• Replaces 220v dump valves found in older coolers
Dump valve O Ring – round
• Between dump valve and sump

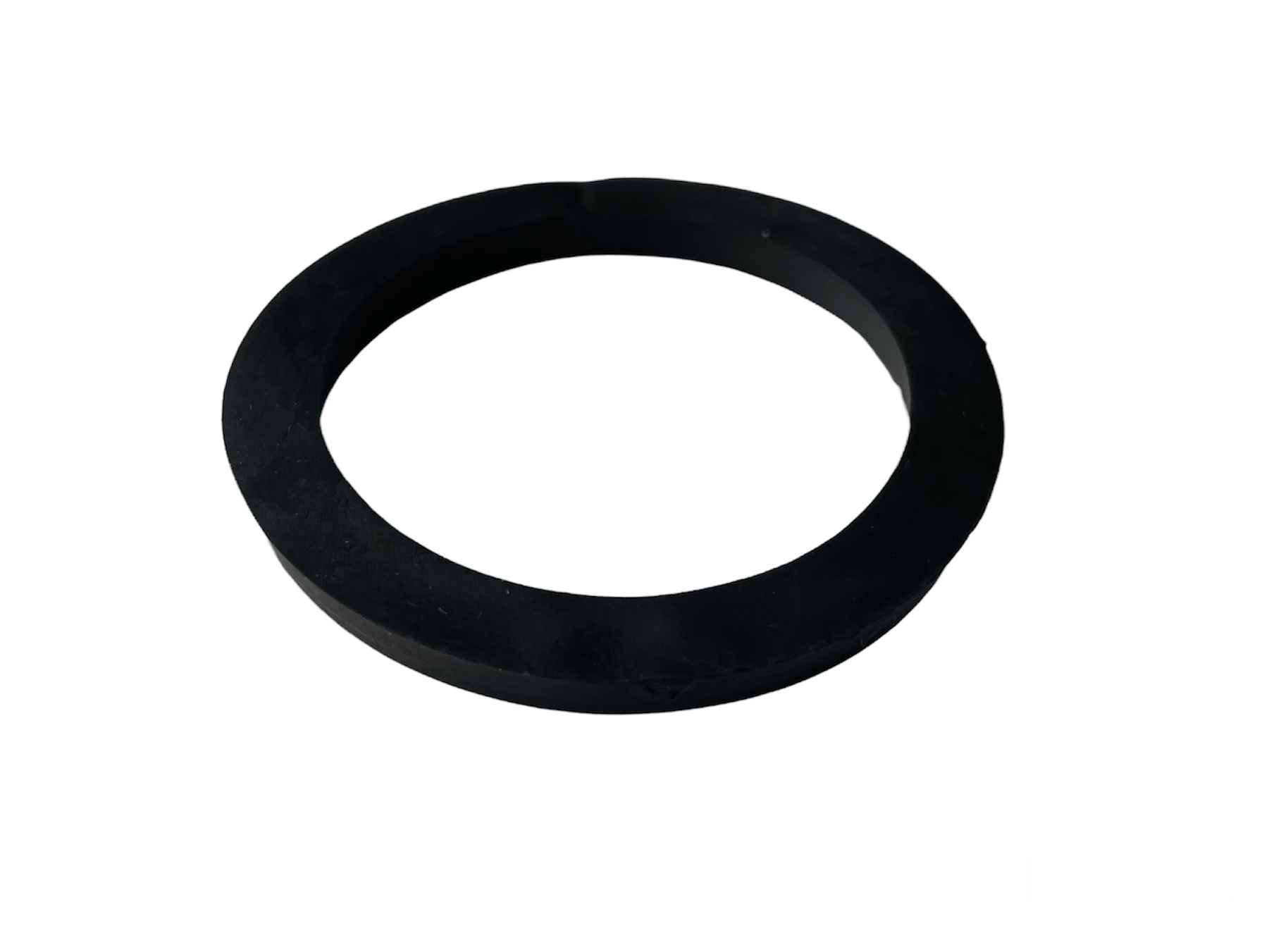

Dump valve O Ring – square black
•Found in older 220v dump valve

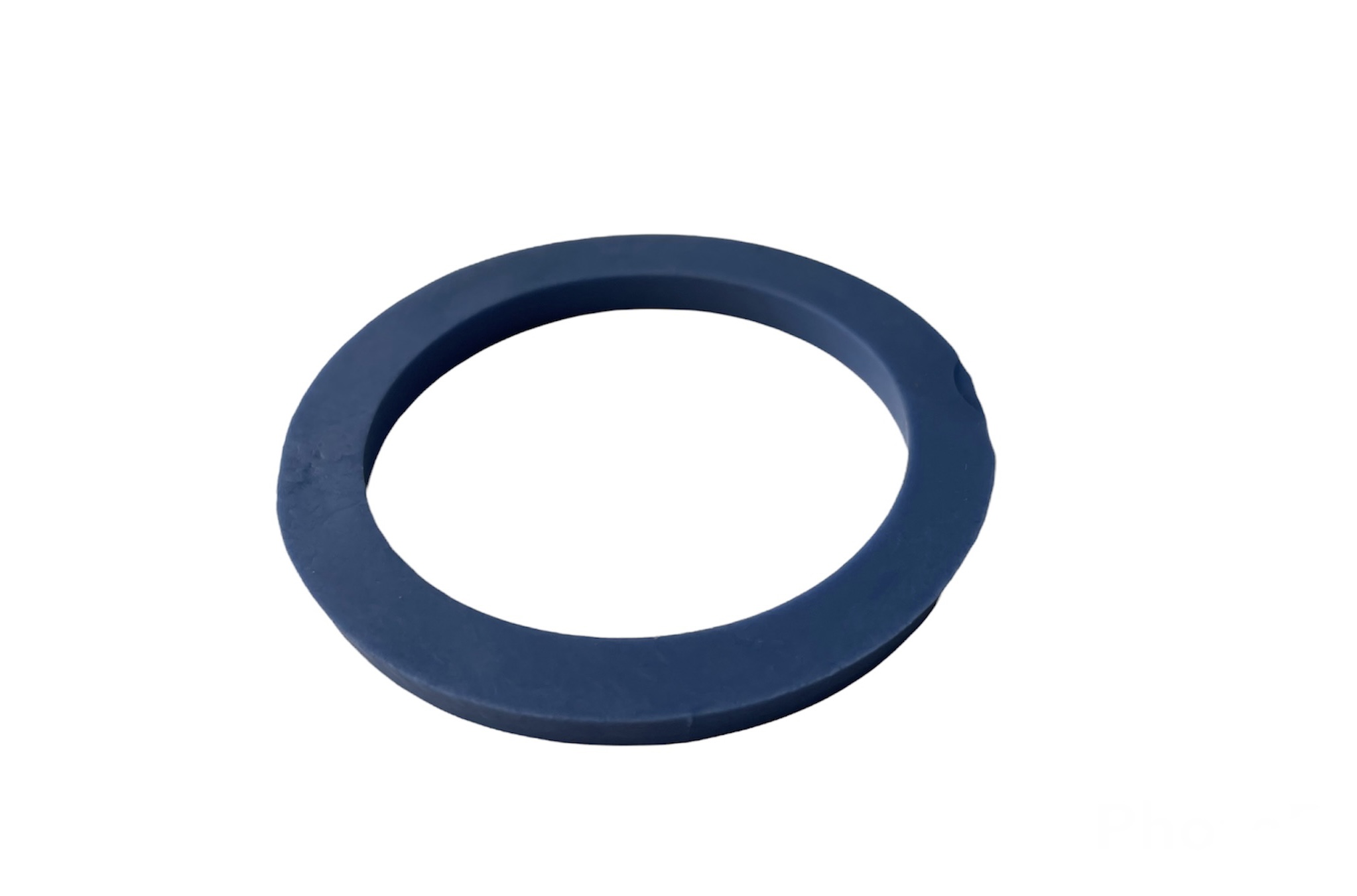

Dump valve O Ring – square blue
•Found in newer Counter Weight dump valve
FAN ASSEMBLY

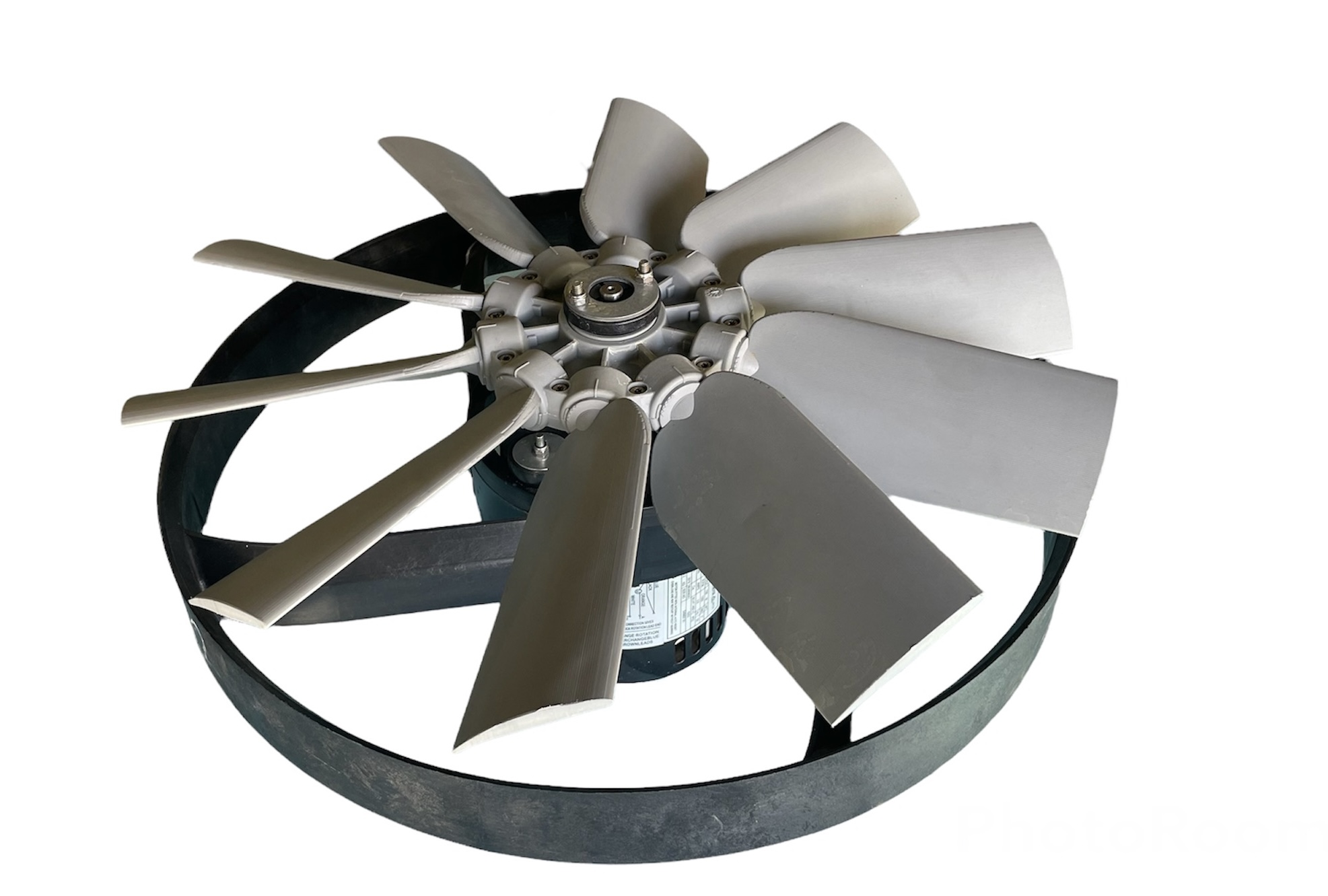

Fan Assembly 600w – Unshrouded
• For S100, old type cooler 080, 105, 130

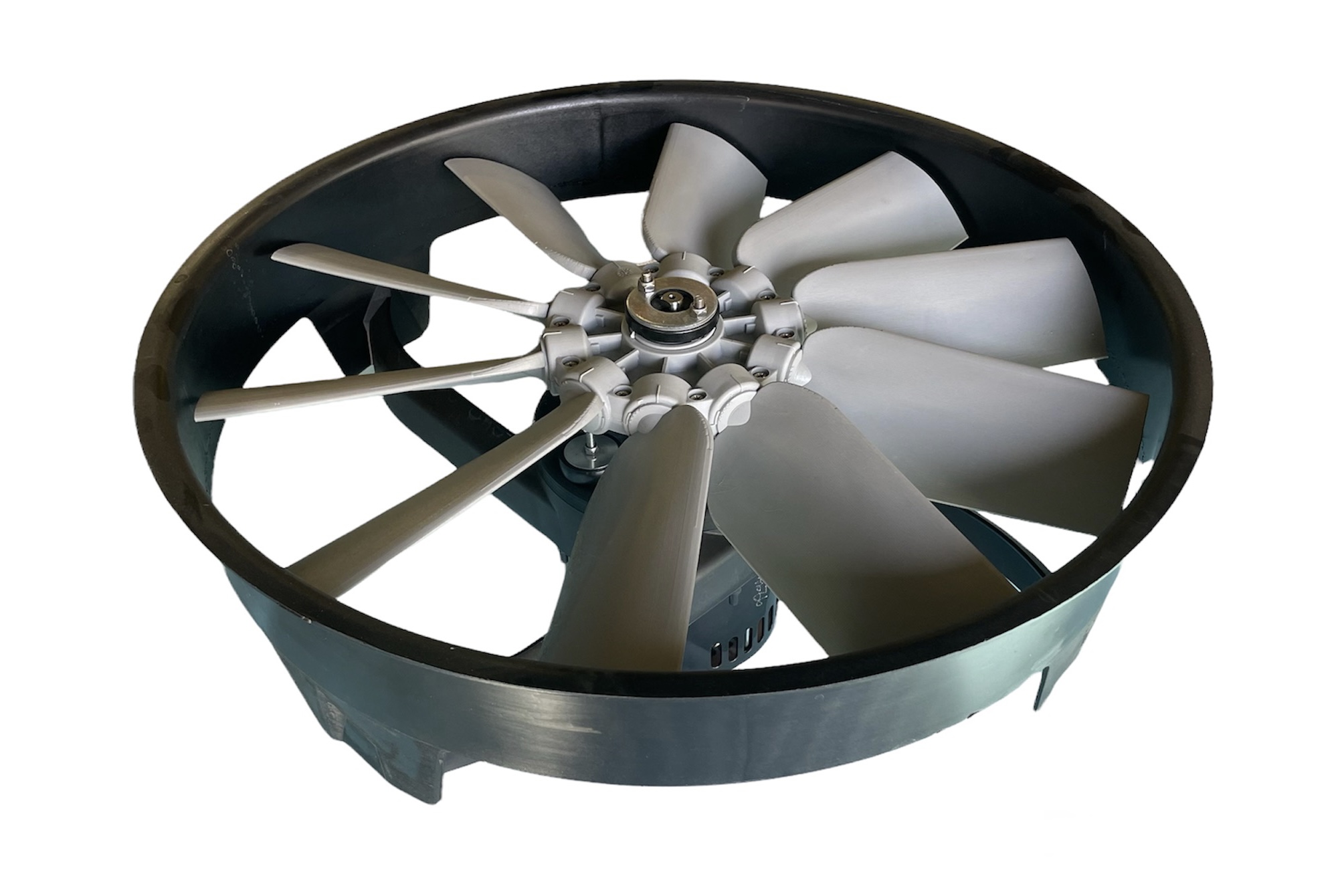

Fan Assembly 600w – Shrouded
•For D095
Fan Assembly 750w – Unshrouded
*For D400, old type 160, 185, 210, S200
Fan Assembly 750w – Shrouded
•For D125, D160

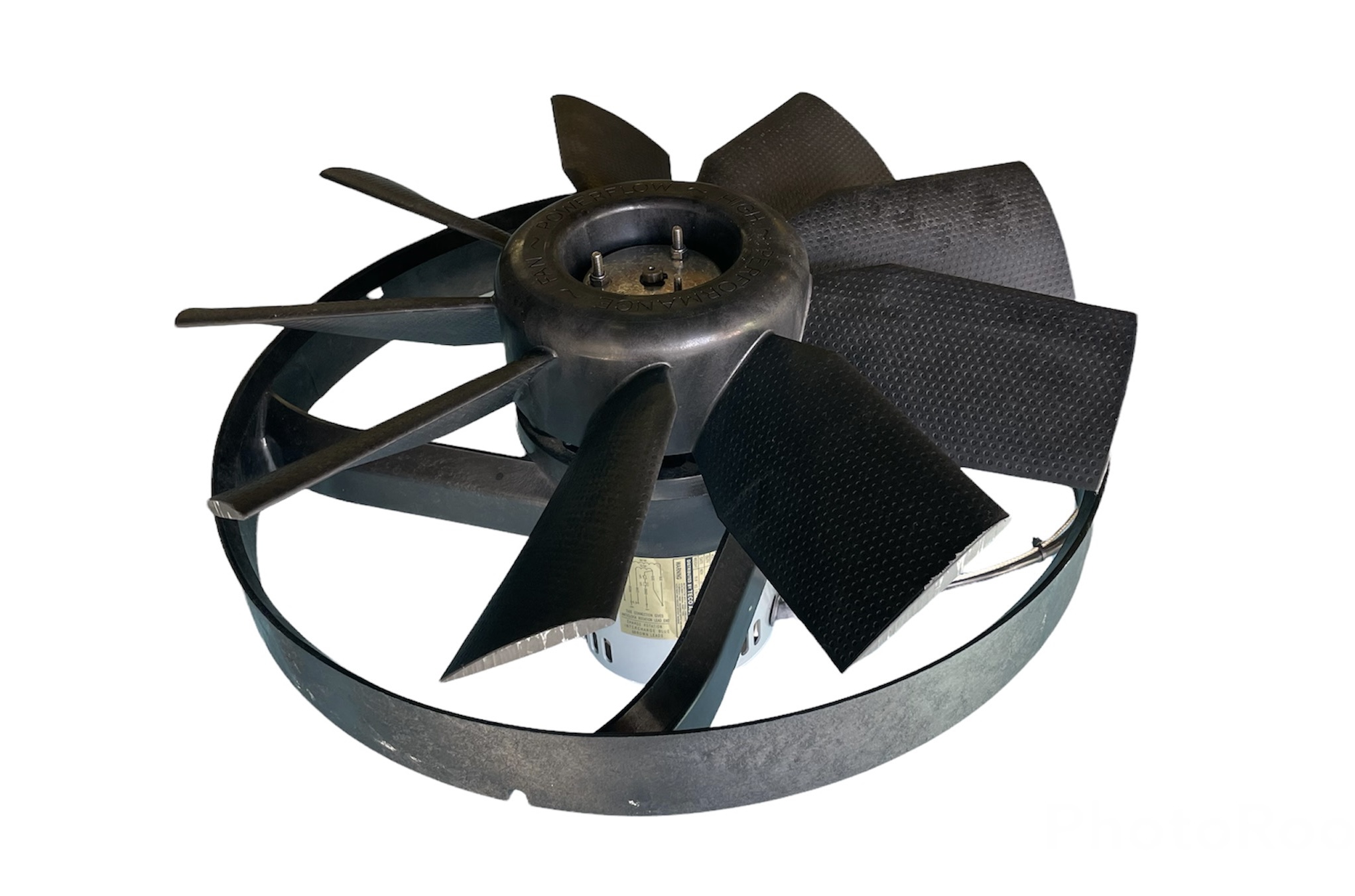

Fan Assembly 1000w – Unshrouded
• For D500, S240, Older single speed L240
Fan Assembly 1000w – Shrouded
•For D195, D230, D255

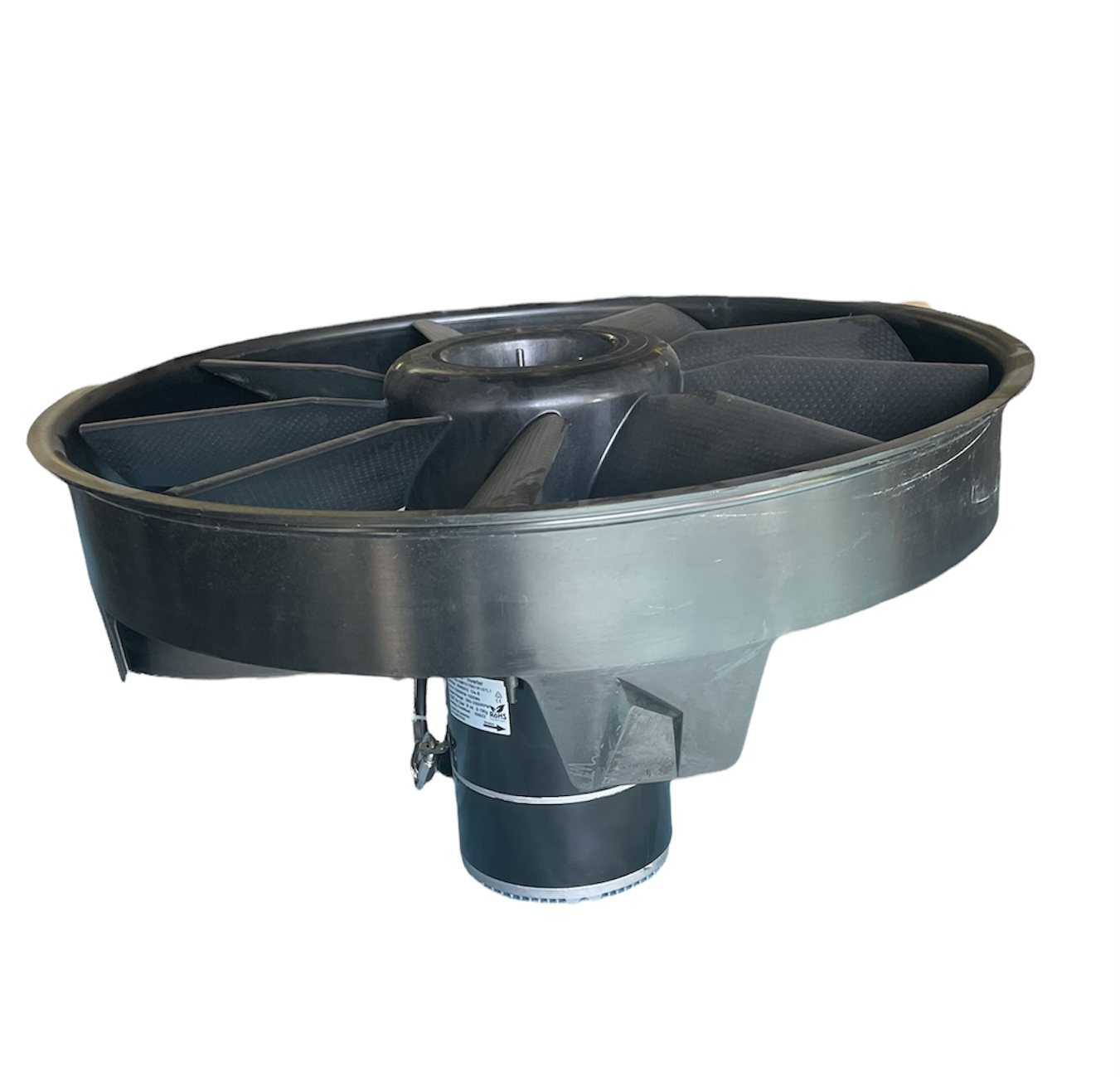

Fan Assembly MAXIMA
• For MAXIMA Inverter coolers
• Can be retro-fitted with inverter PC Board
onto older Cool Breeze MRU type coolers
Fan Assembly 1000w 2 Speed – Unshrouded
• For L240 2 Speed Non-reversible only
Fan Assembly 1000w 2 Speed R – Unshrouded
•For L240 R 2 Speed Reversible only
FAN BLADE

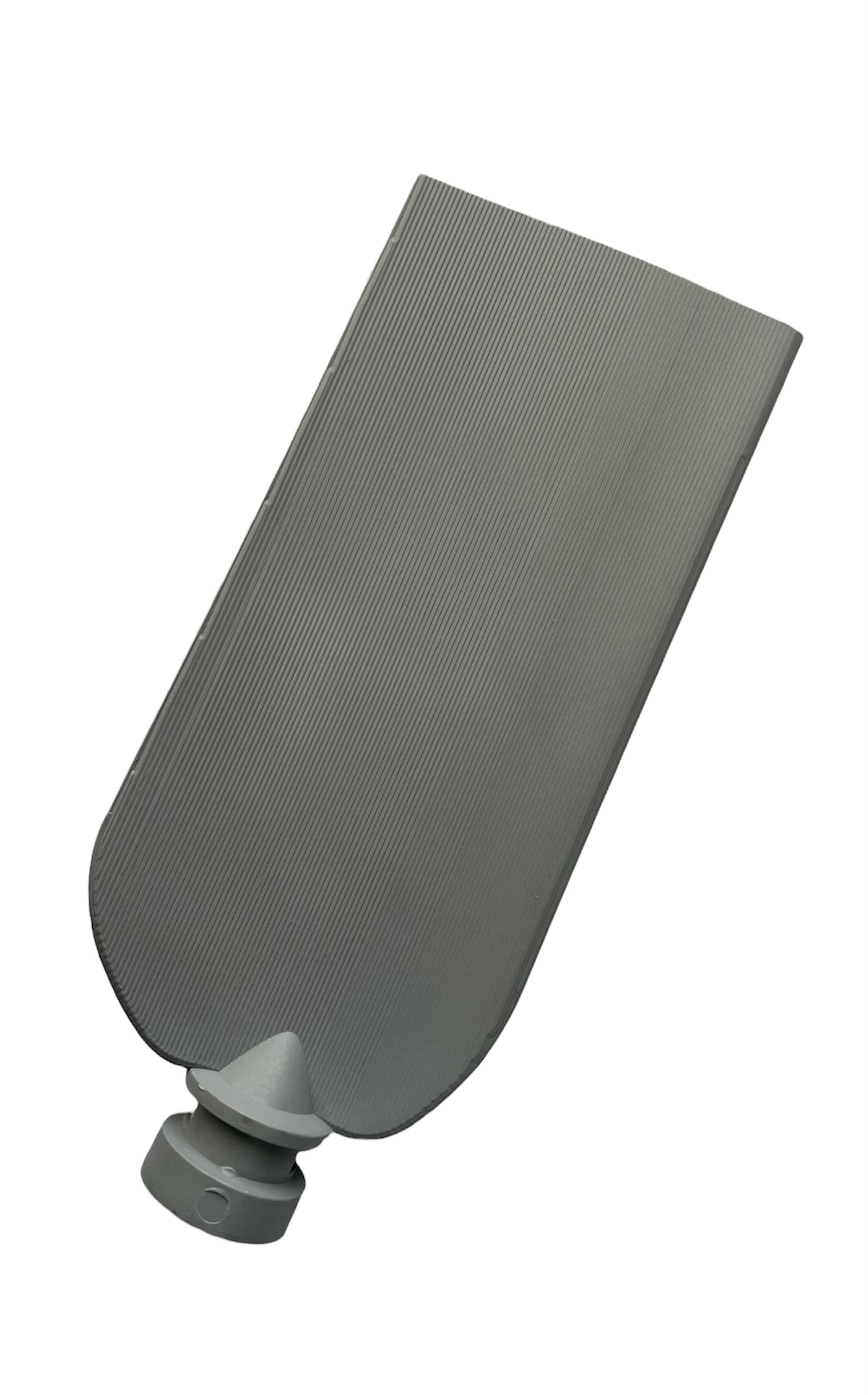

Fan Blade for 518mm Fan Blade for 524mm
• For 10 Blade Grey Impellor only
FAN COLLETS

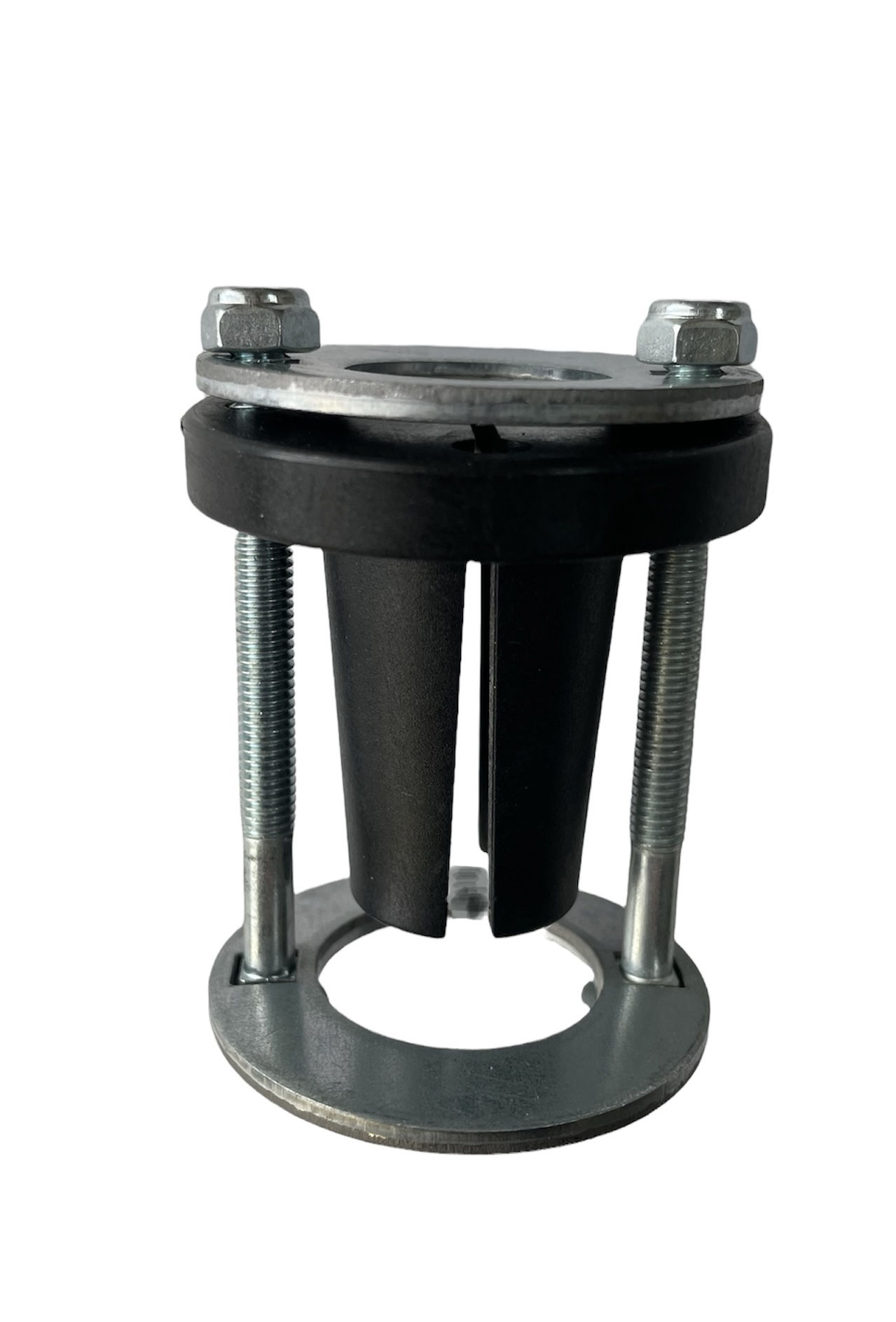

Fan Collet Assembly – 10 Blade
• For 10 Blade Grey Impellor only

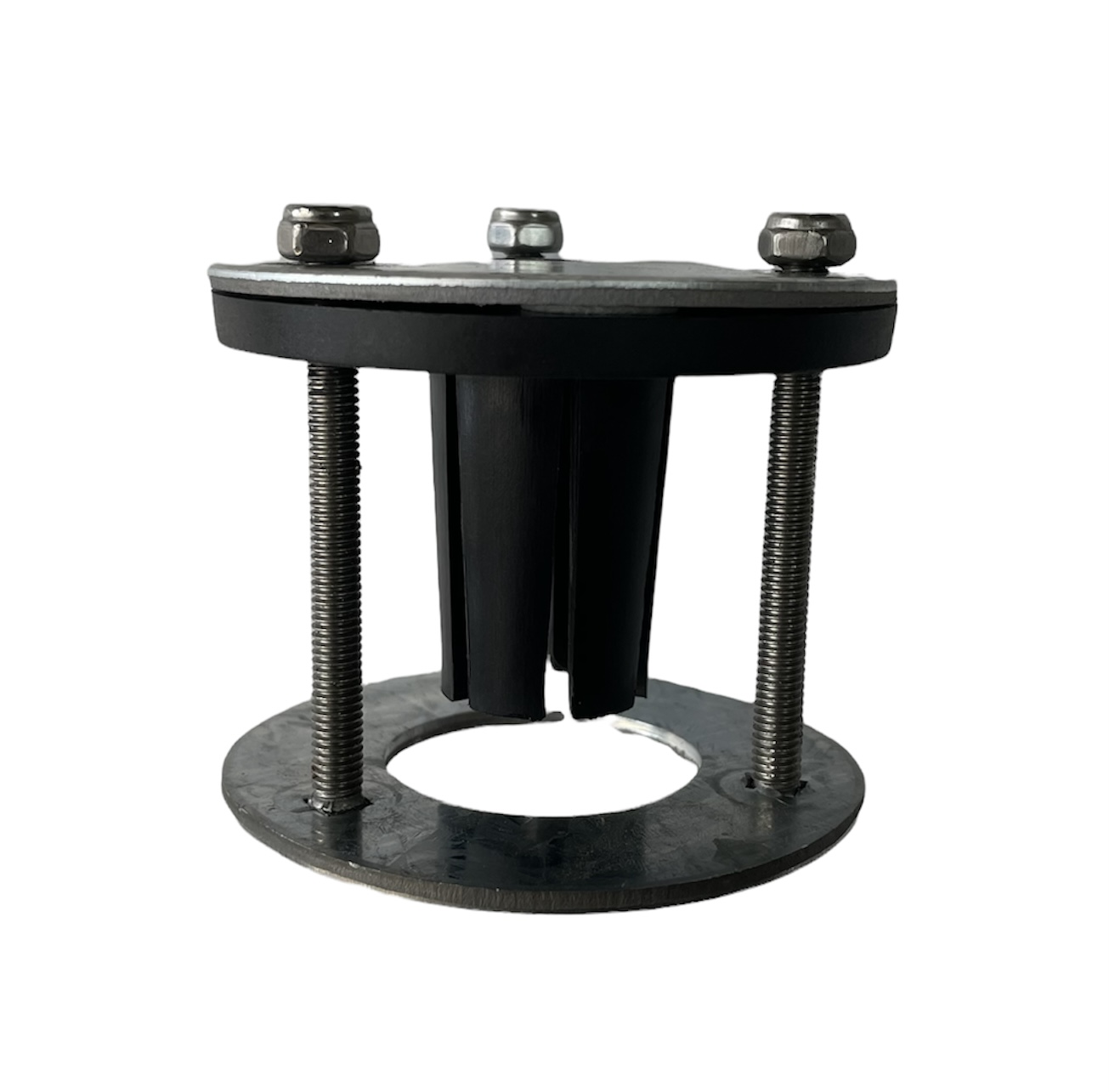

Fan Collet Assembly – 9 Blade
POWERFLOW
• must say POWERFLOW on black fan hub*
FAN HUB

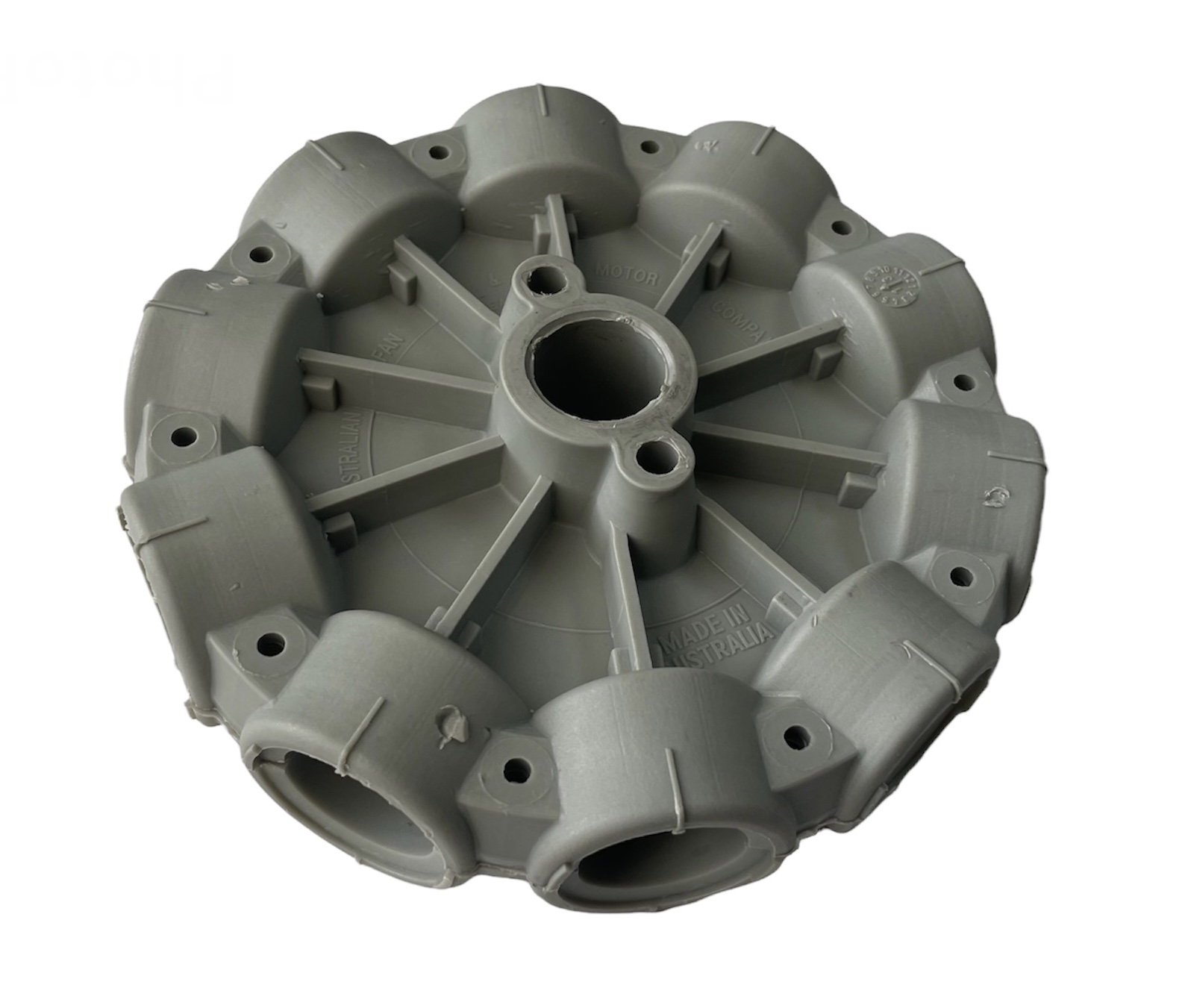

Fan Hub (both halves)
• For 10 Blade Grey Impellor only

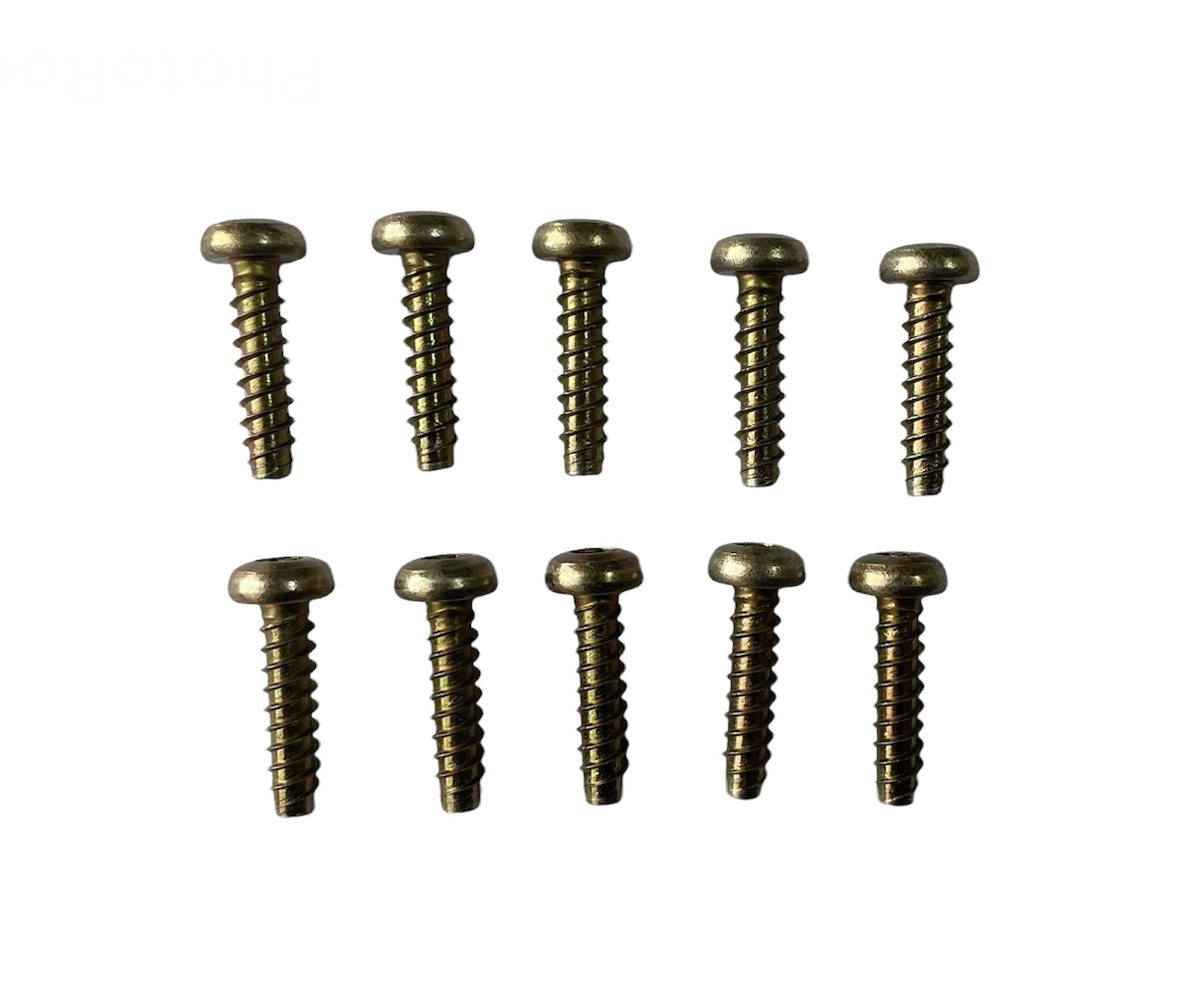

Fan Hub Screws (set of 10)
• For 10 Blade Grey Impellor only
FAN IMPELLERS

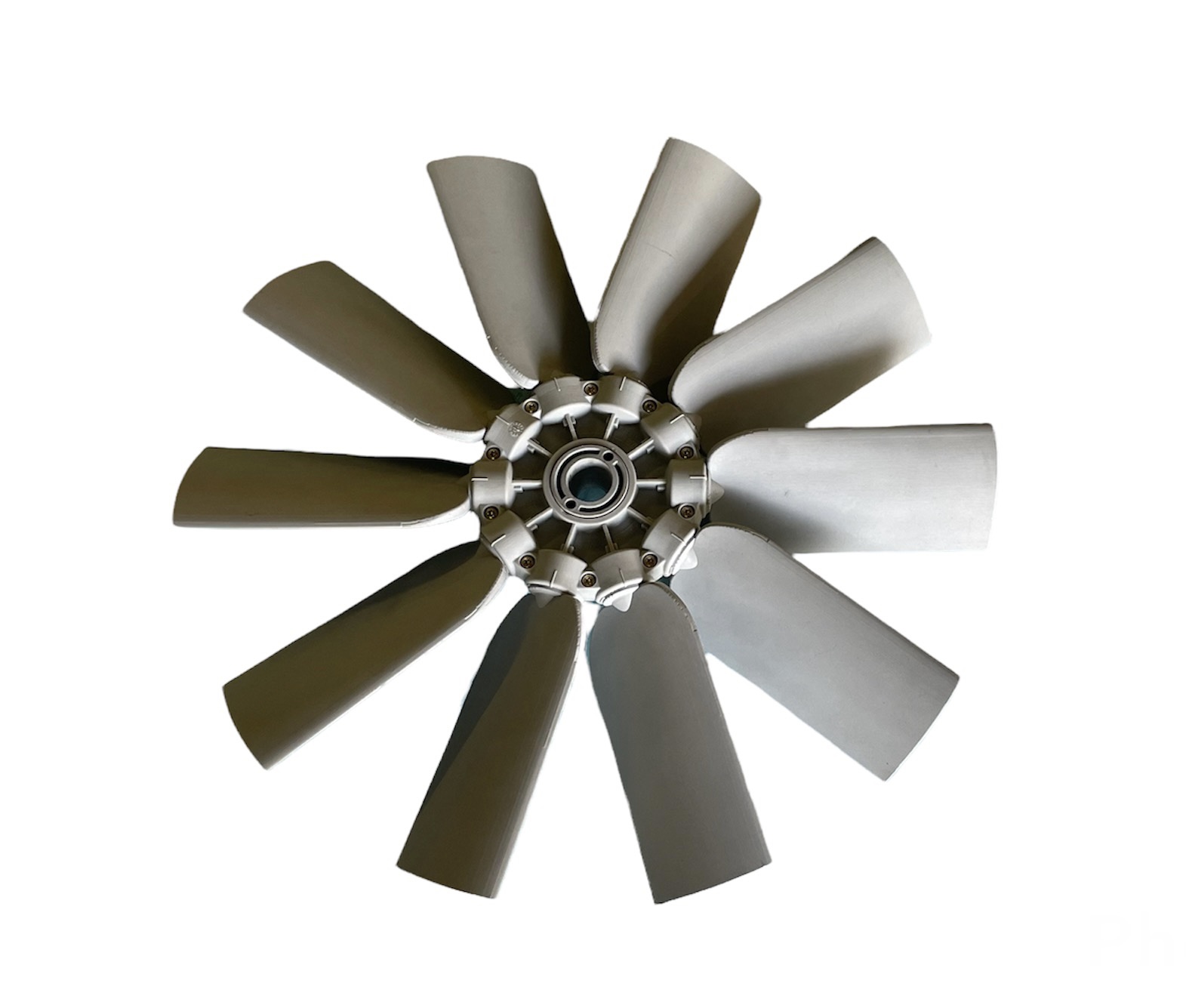

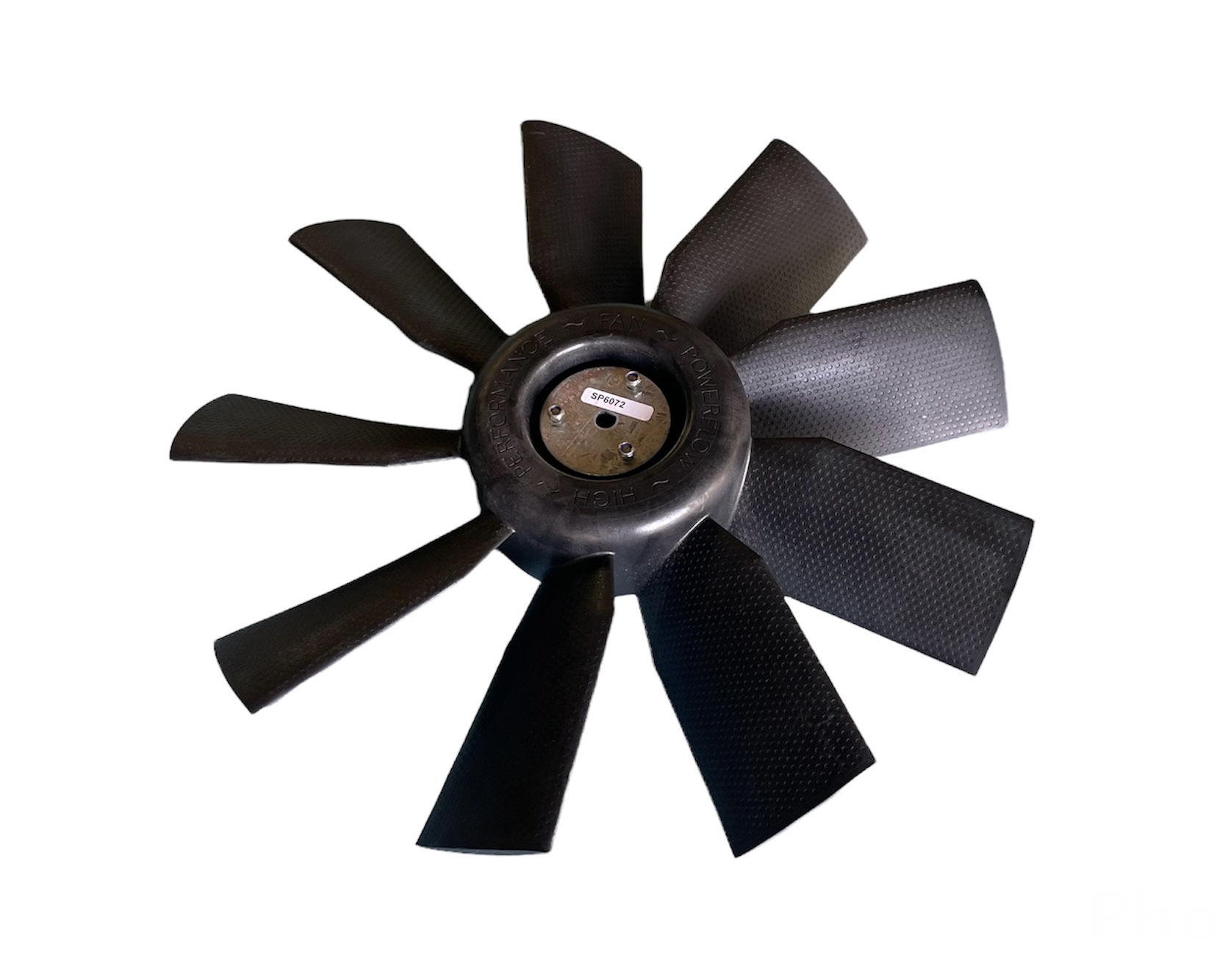

Fan Impellor POWERFLOW 518mm
Fan Impellor POWERFLOW 524mm
• Includes Fan Collet
Fan Impellor 518mm
Fan Impellor 524mm
•Excludes Fan Collet
FLOAT SENSORS

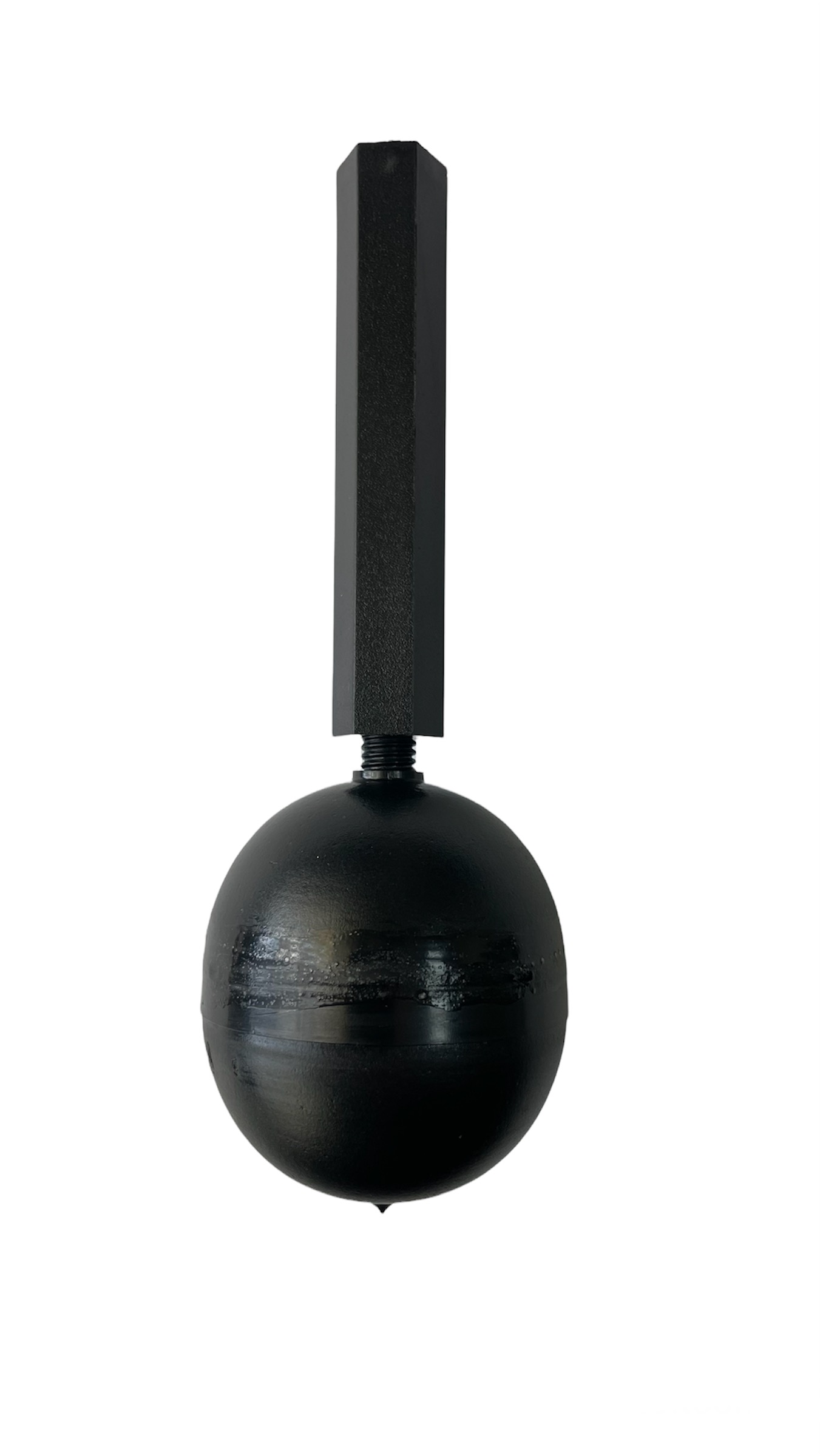

Float Sensor – Float/Magnet only MS/MWL
• For both MWL or MS Float Sensor

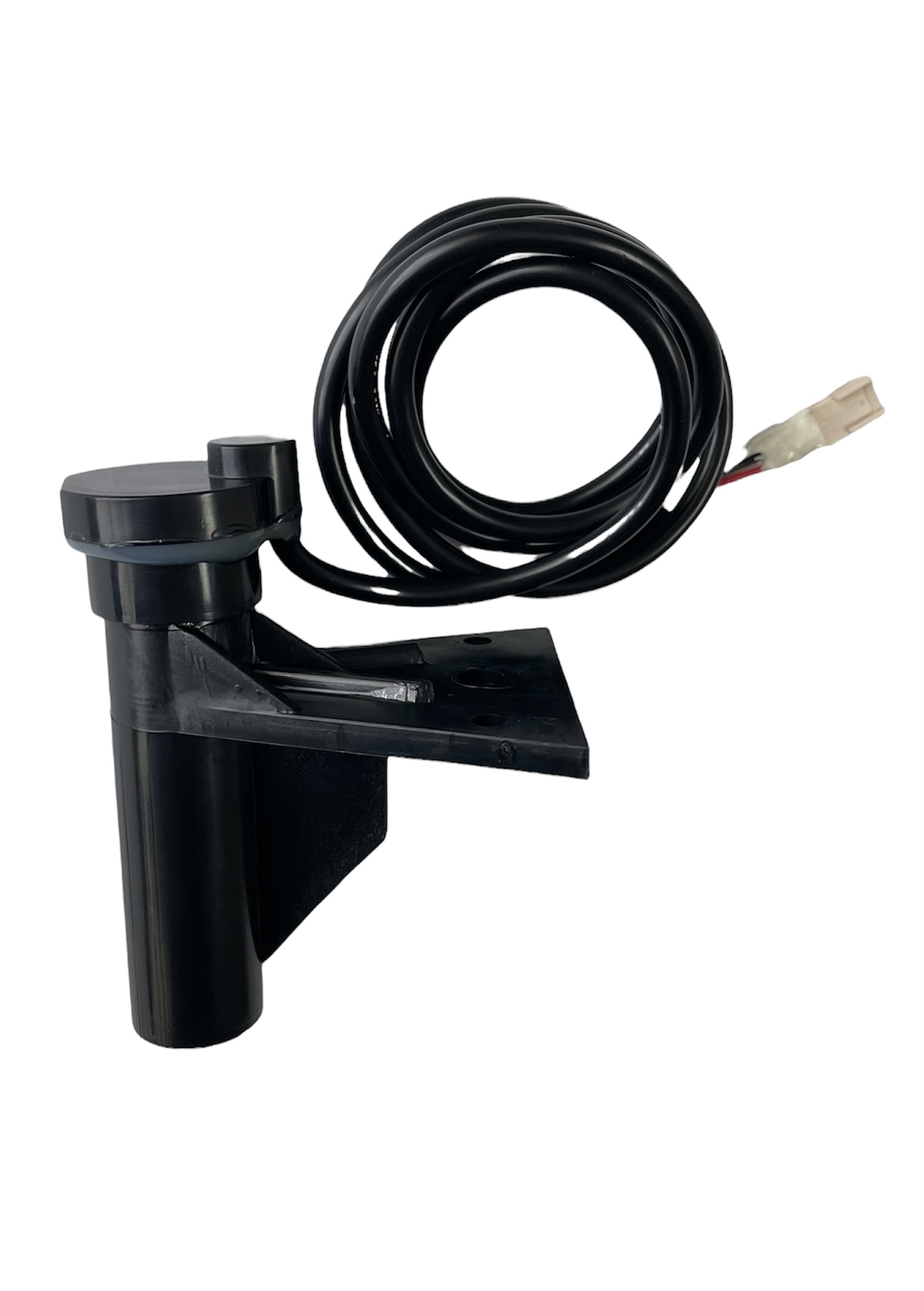

Float Sensor MS – c/w lead
• For all current coolers and L240 R coolers

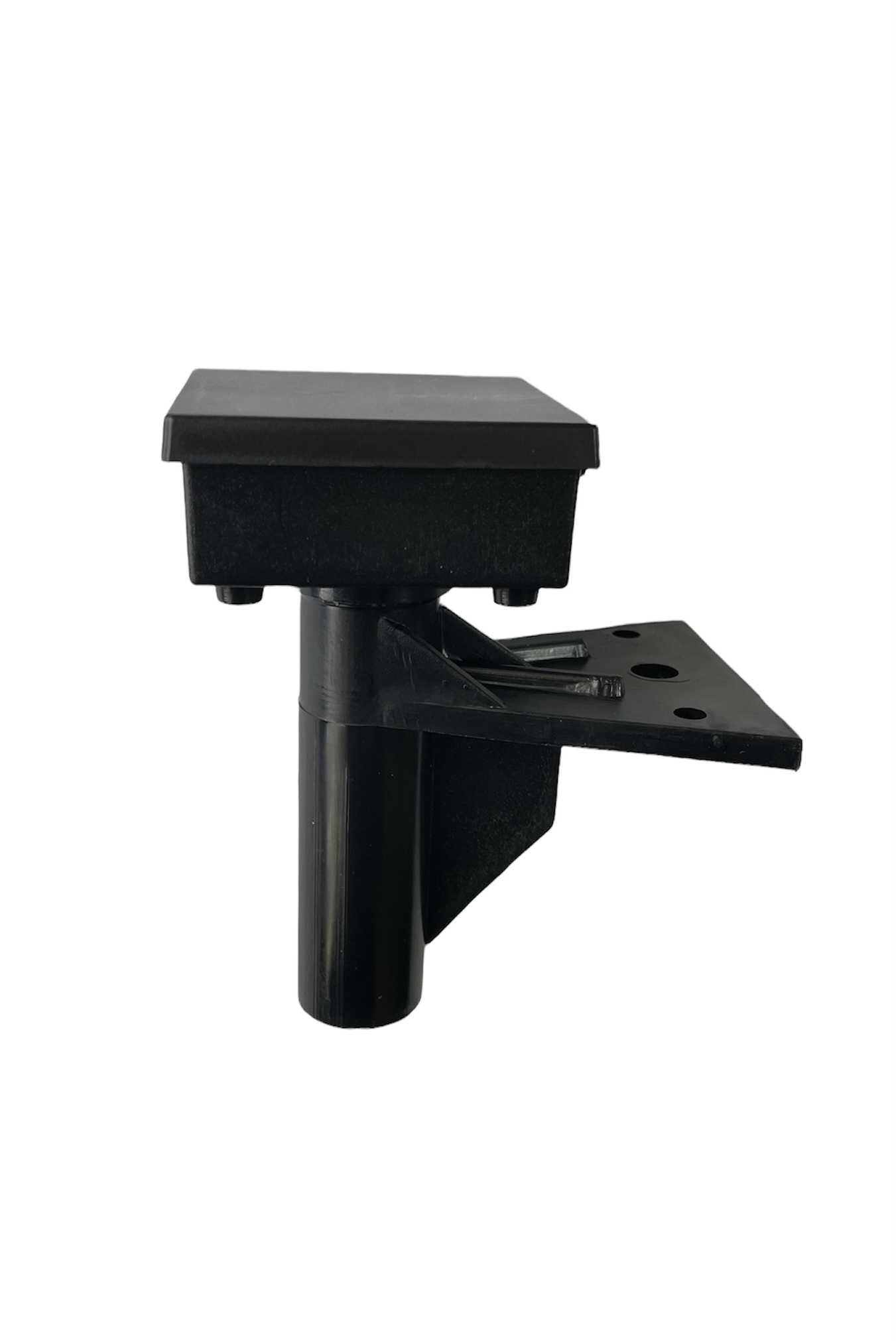

Float Sensor MWL
• For all older L240 non-reversible coolers
• For older type D400, D500
FLOAT VALVES

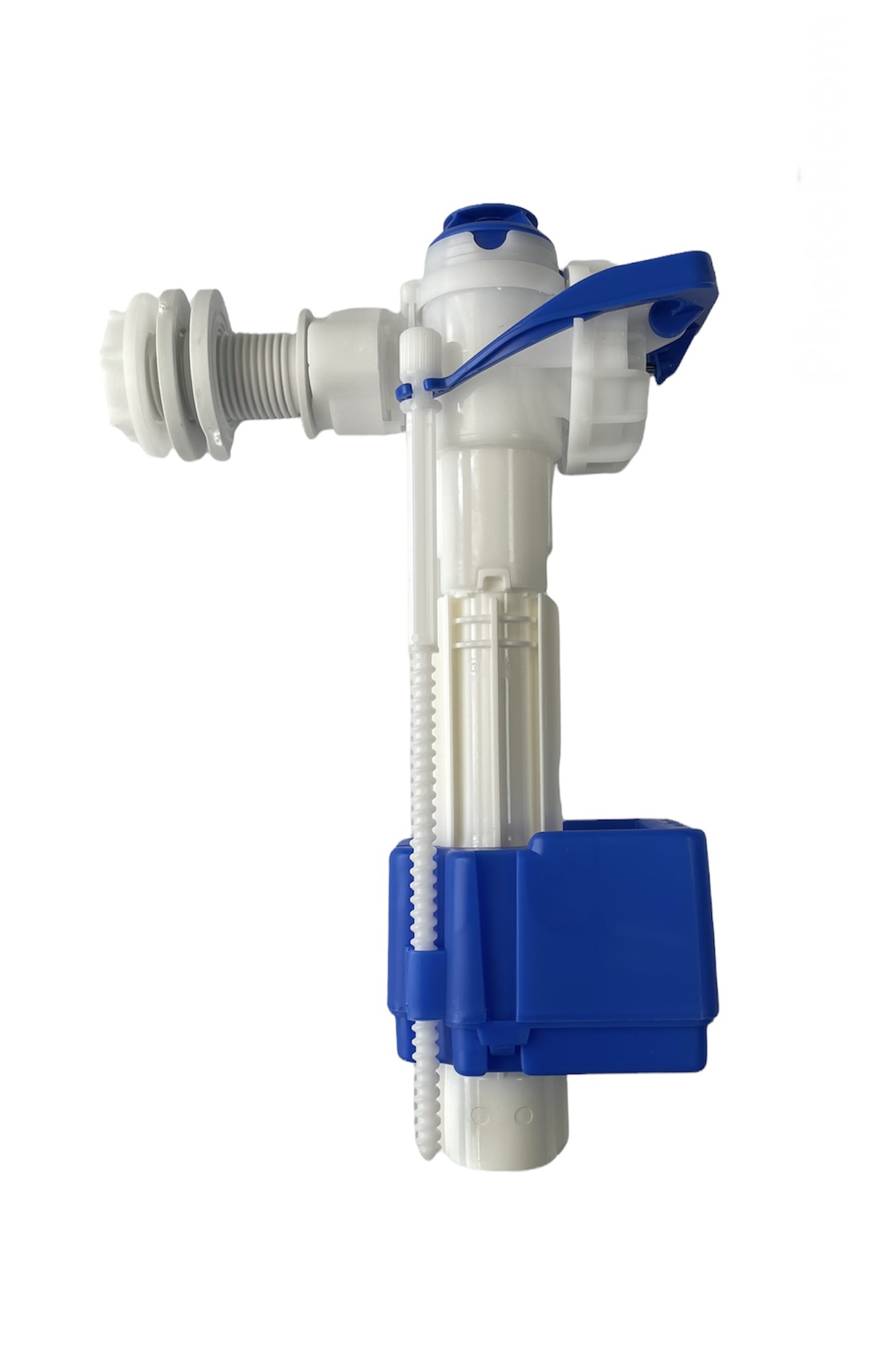

Float Valve Fluid Master 747
• For older type coolers 080, 105, 130, 160, 185, 210
LIDS

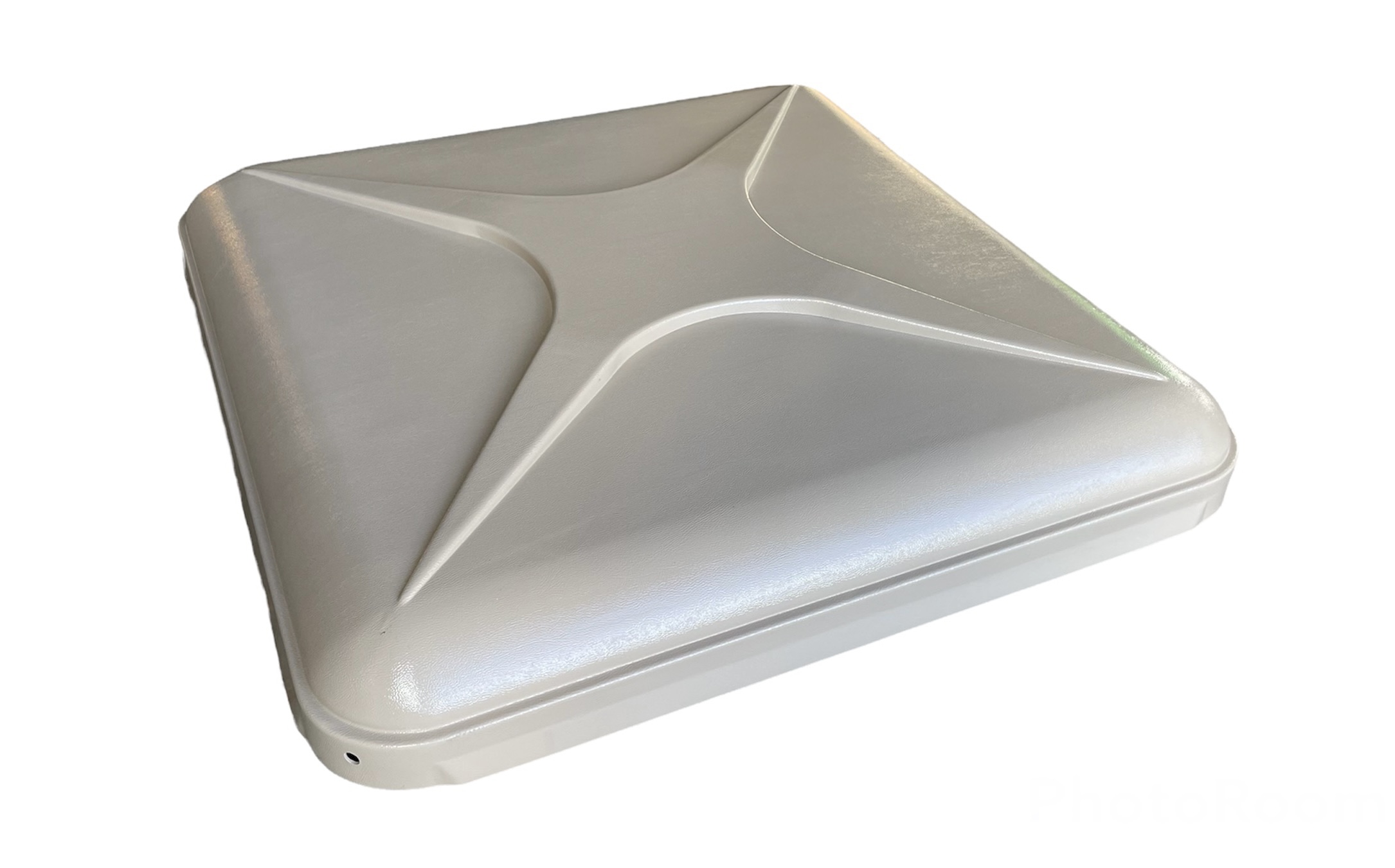

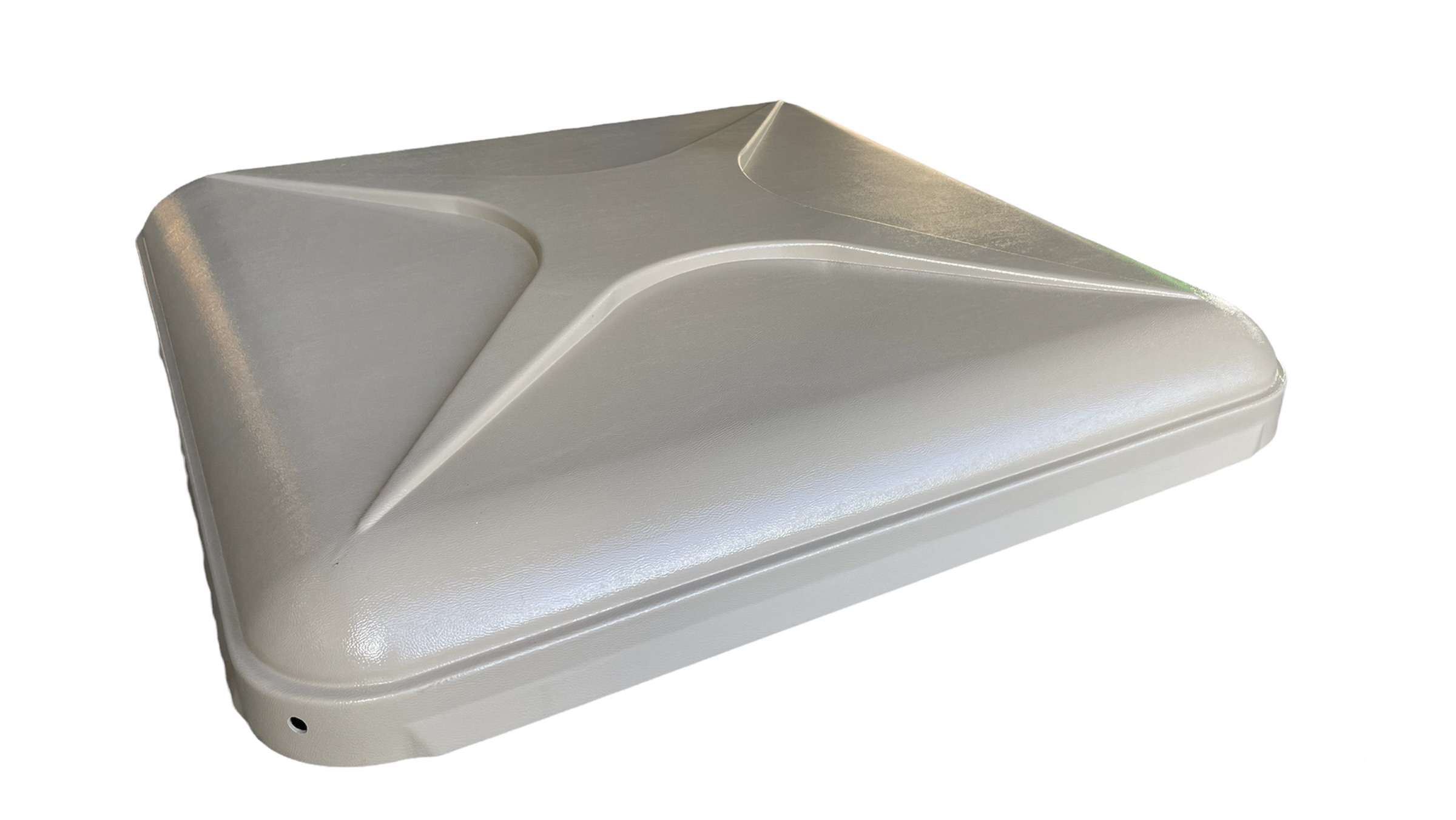

Lid – Large
• For all current coolers and older 160, 185, 210
Lid – Small
• For all current L240 coolers and older 080, 105, 130

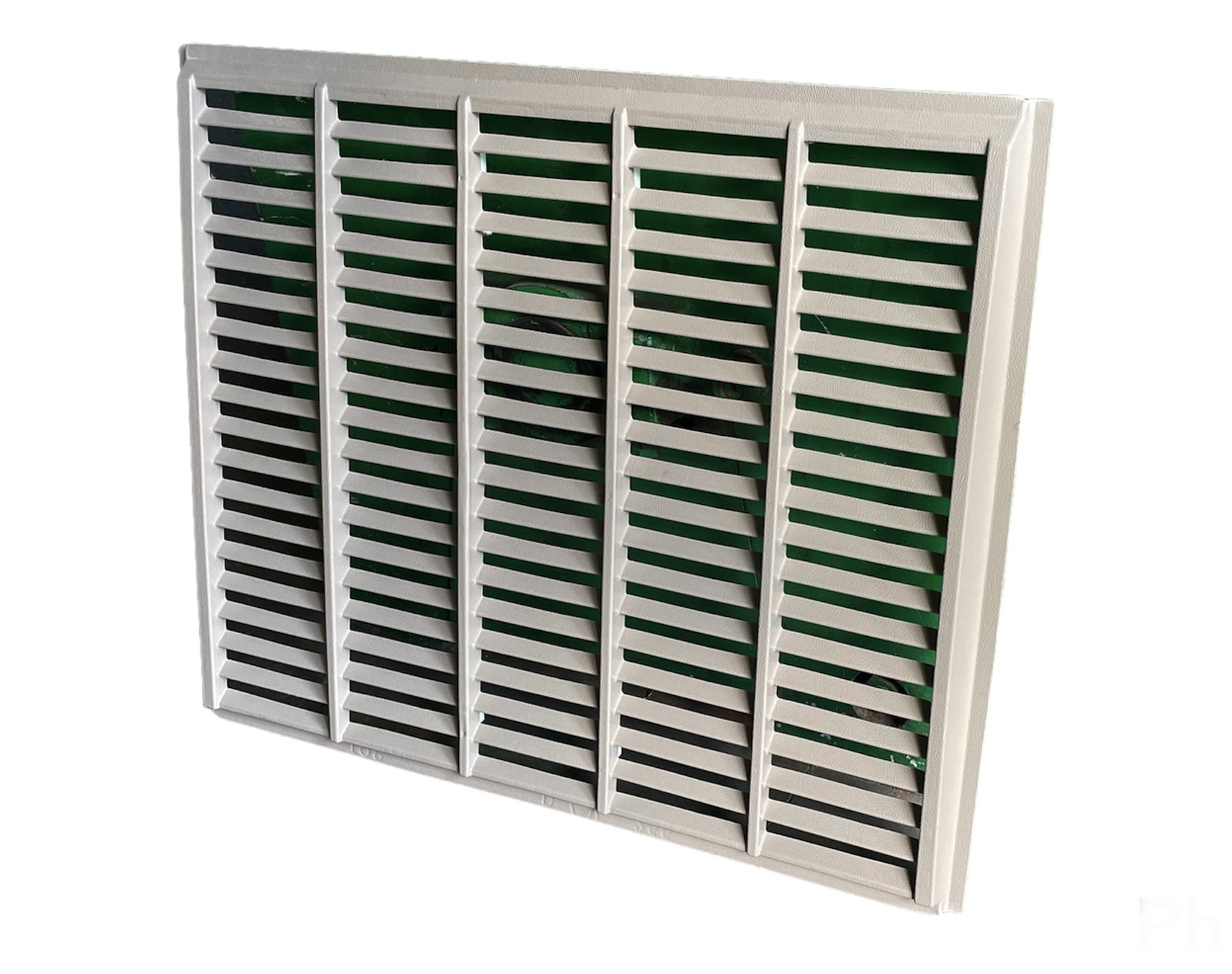

LOUVRE PACKS
Louvre Pack (set of 3, 4 or 6)
• For retro-fitting on most coolers
NOTE: These are for aesthetics (looks) only and have no functional use – coolers can operate normally without louvres (All new coolers sold as standard without Louvre Packs)
MOTORS

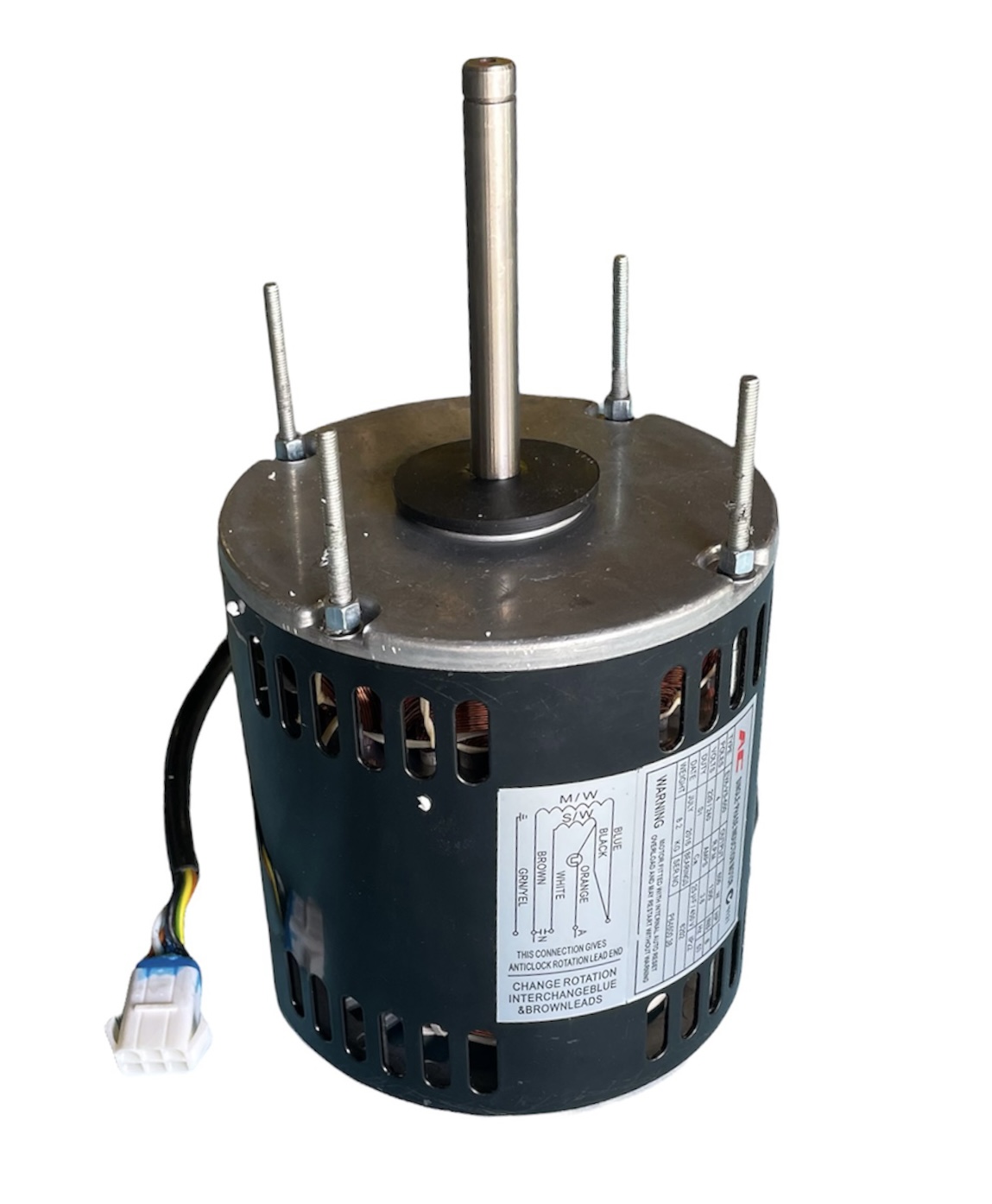

Motor 600w
• For D095, S100 coolers
• For older 080, 105, 130 coolers
Motor 750w
• For D125, D160 coolers
• For older 160, 185, 210 coolers

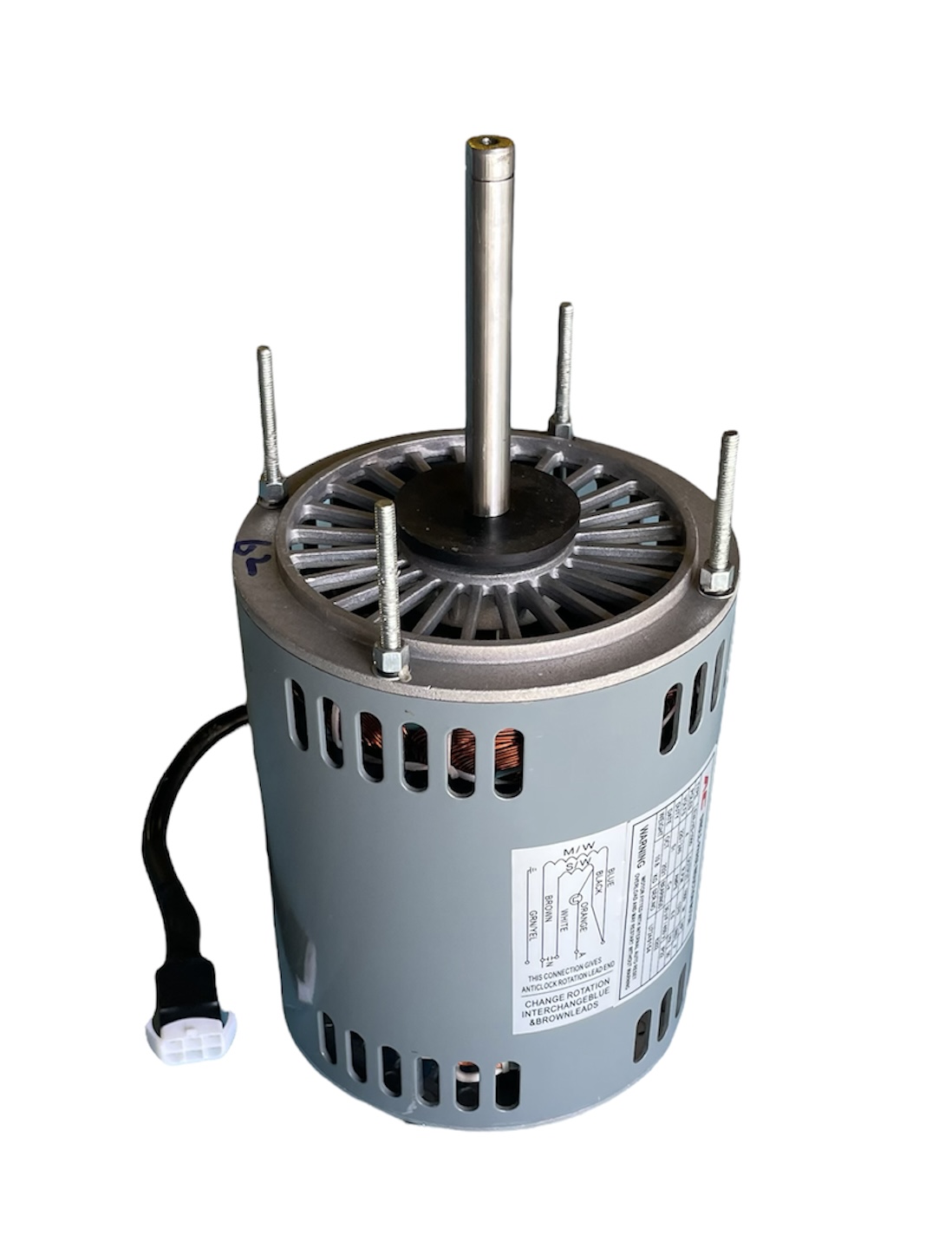

Motor 1000w
• For D195, D230, D255, S240 coolers

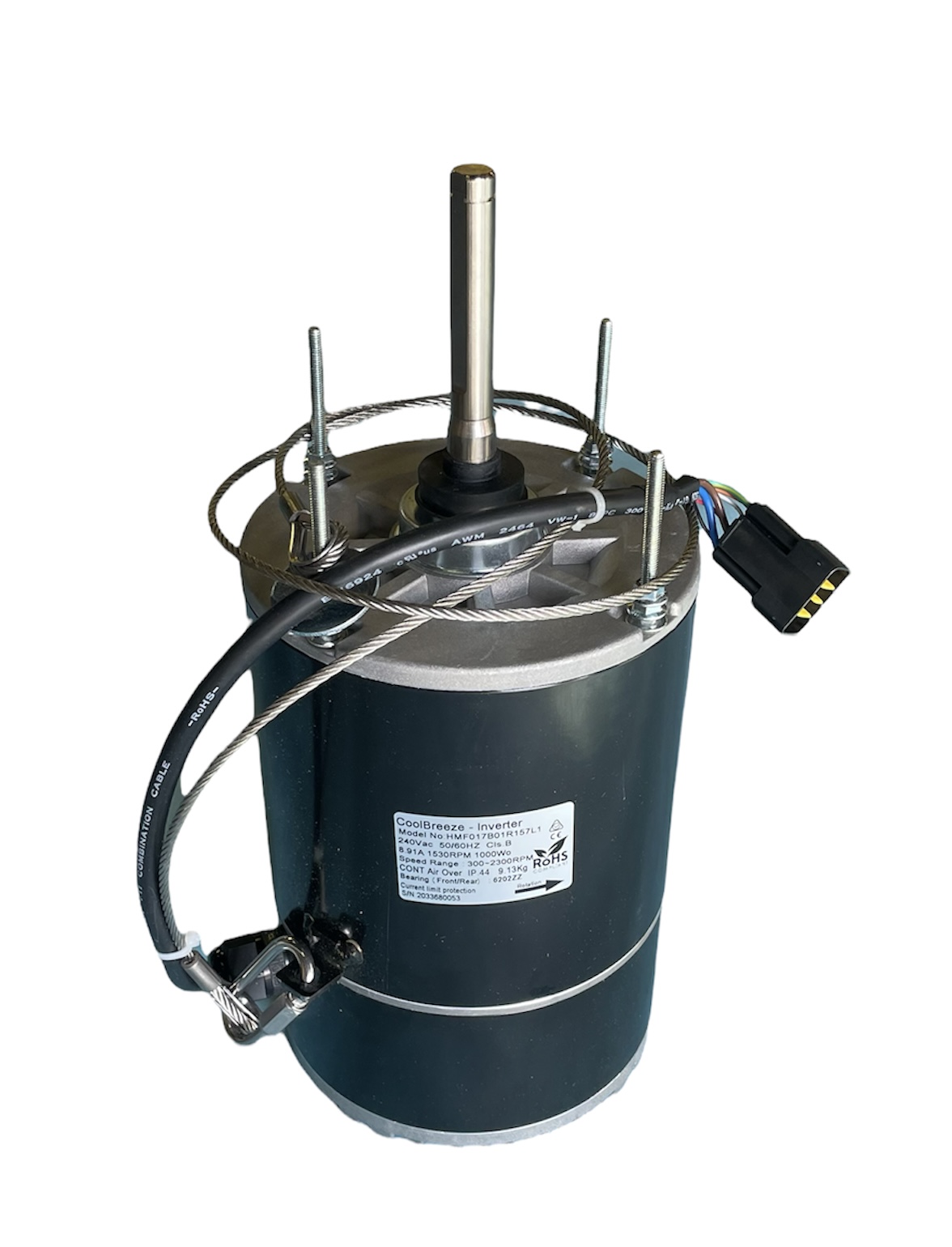

Motor MAXIMA (Inverter)
• For all sizes MAXIMA Inverter coolers
• Can be retro-fitted with inverter PC Board onto older type MRU D type coolers
Motor 1000w 2 Speed (Non-Reversible)
• For Older L240 2 Speed Non-Reversible coolers

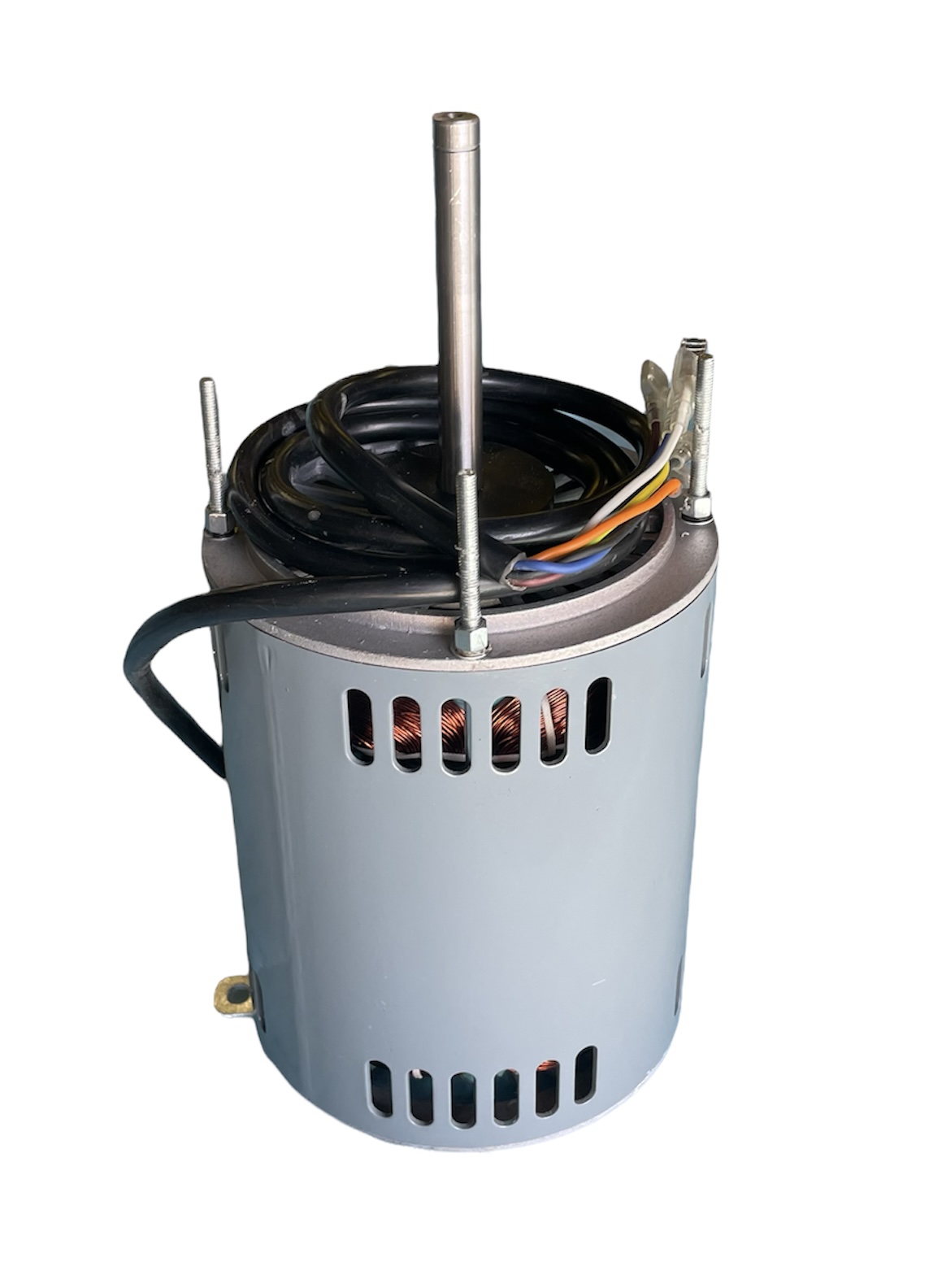

Motor 1000w 2 Speed R (Reversible)
• For new L240 2 Speed Reversible coolers
MOTOR PARTS

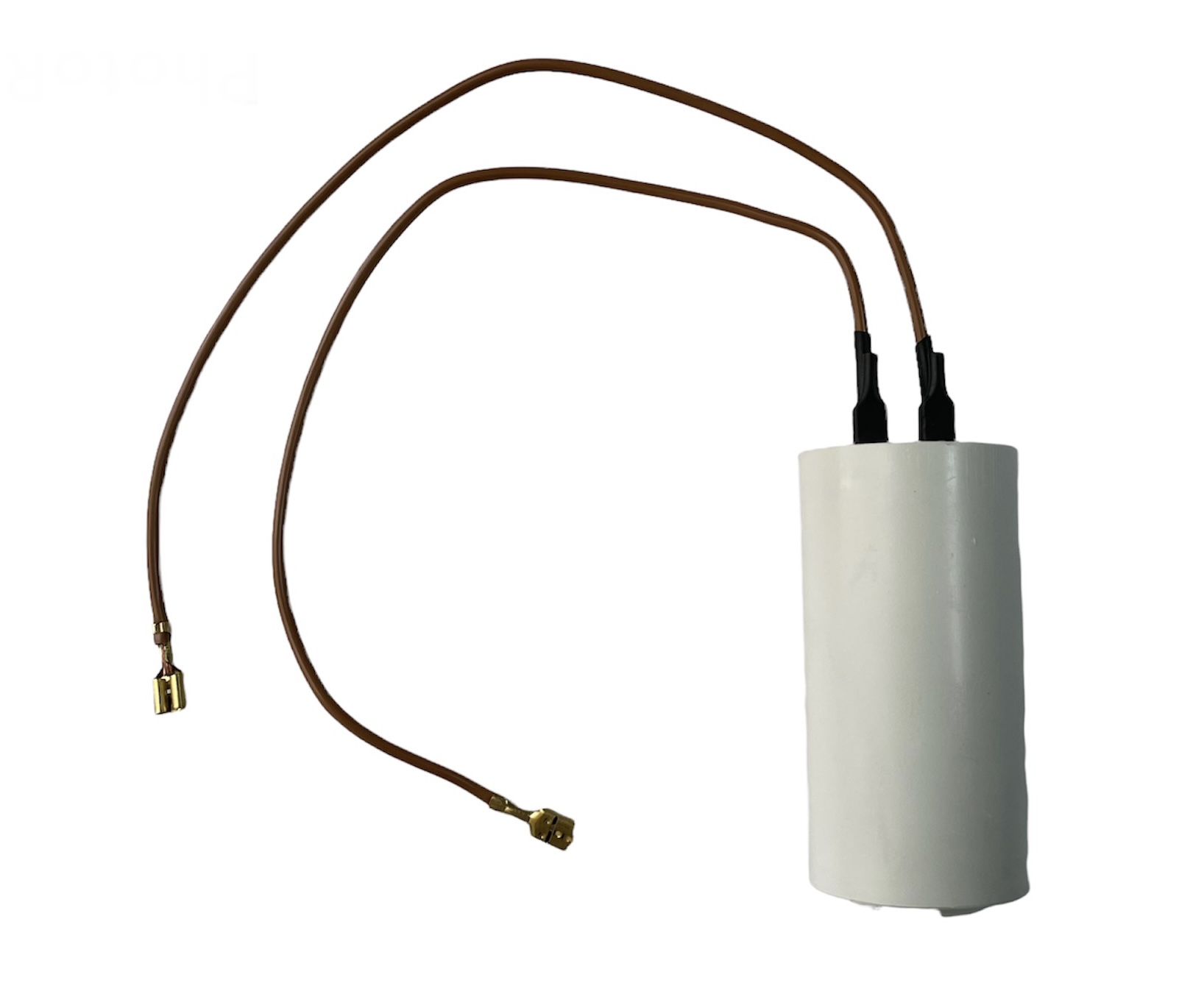

Motor capacitor 30Uf
• For all size motors

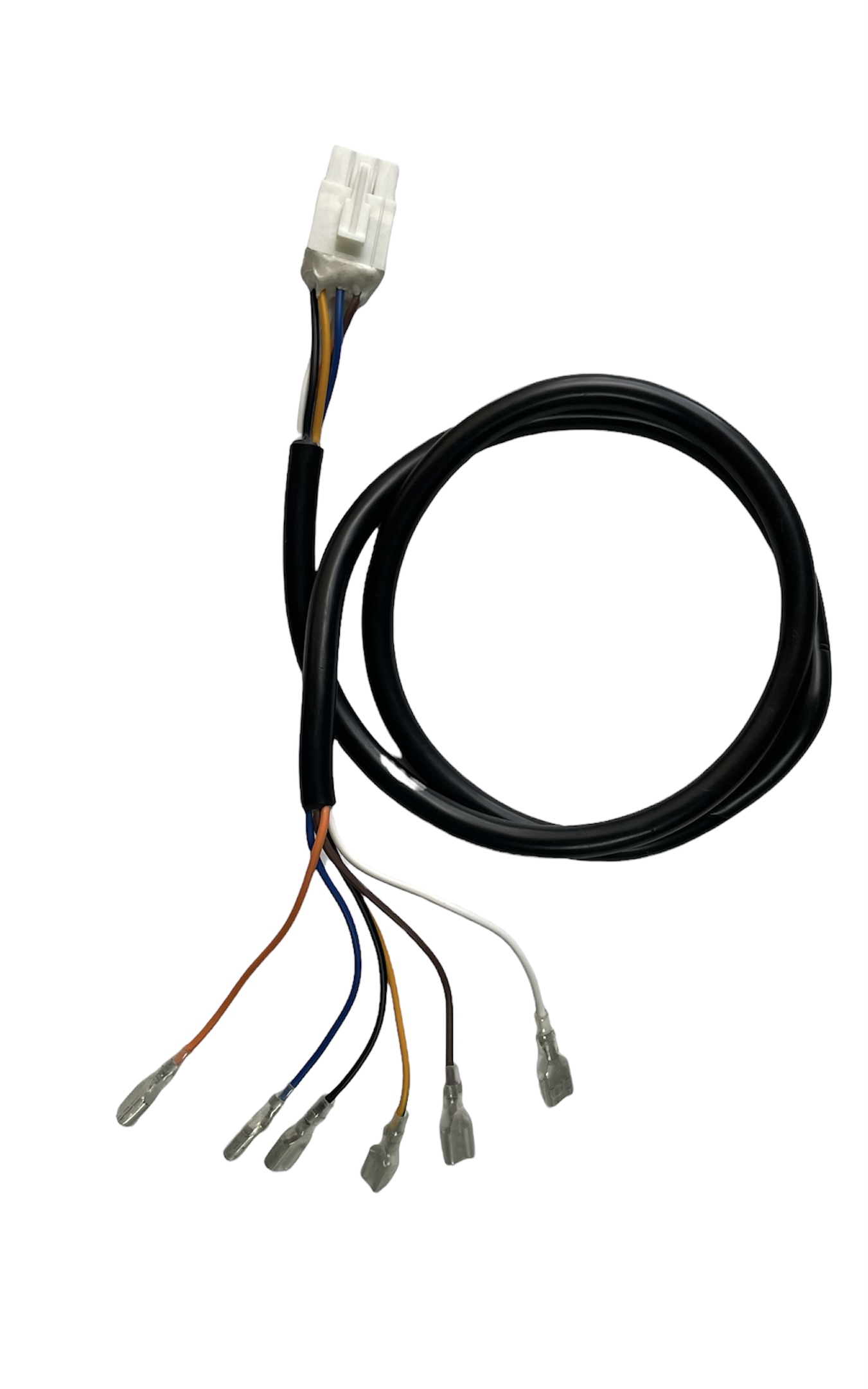

Motor Lead cable
• For all motors (excluding L240) from motor plug to PC Board spade connectors.

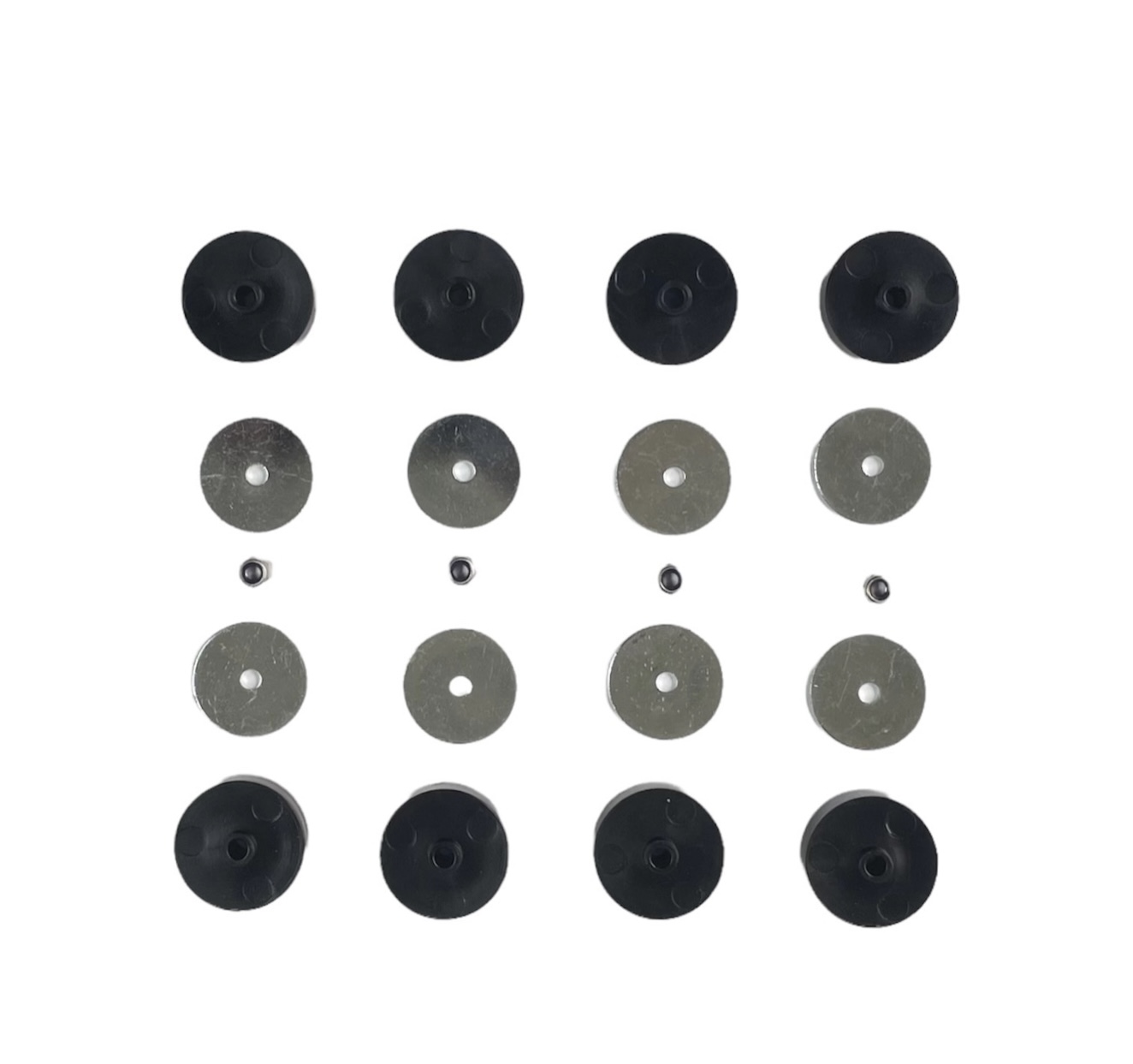

Motor Grommet Kit
• For all Fan assemblies for fixing Motor to Motor Support Ring
MOTOR SUPPORT RINGS

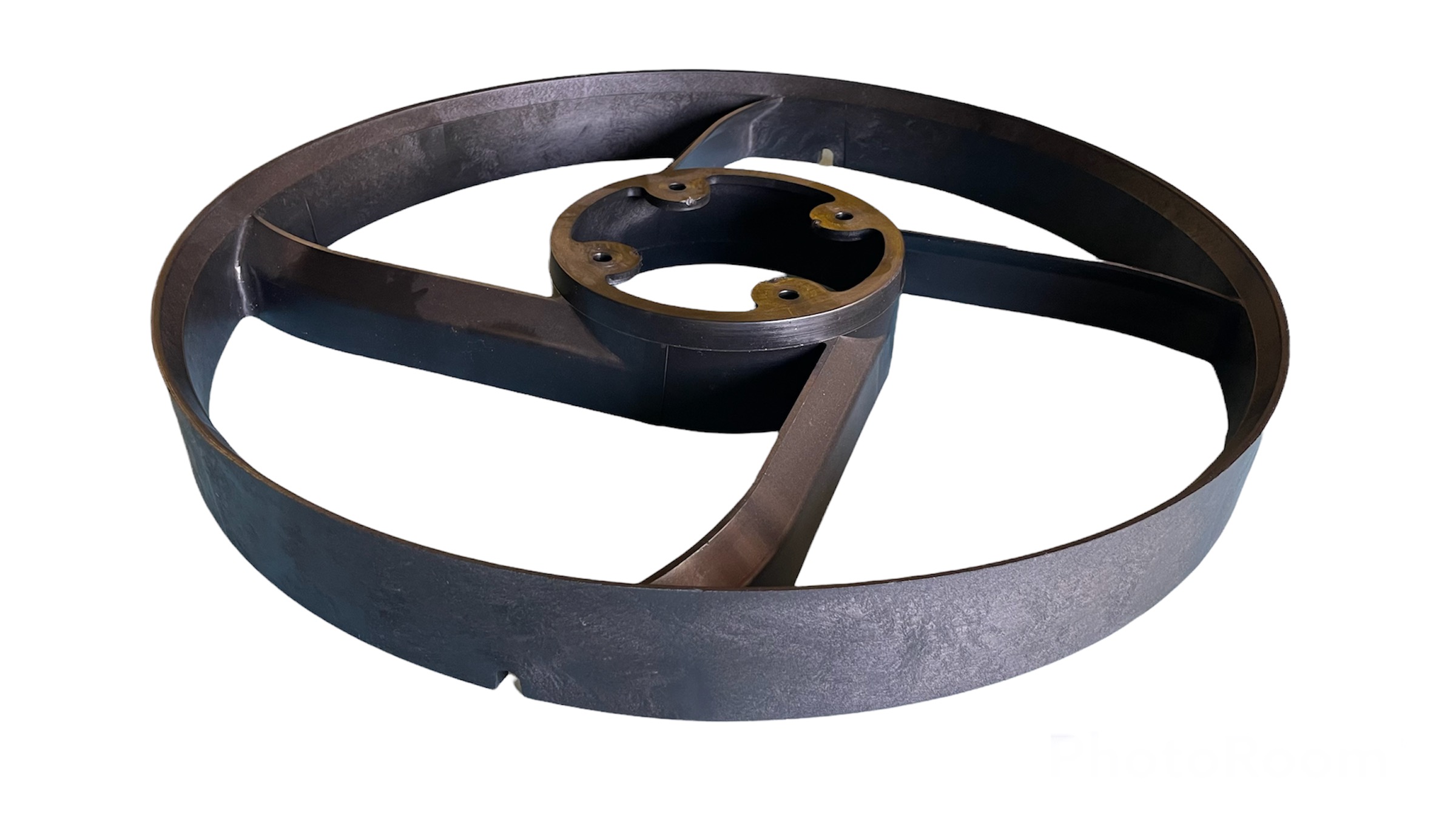

Motor Support Ring – Old type Unshrouded

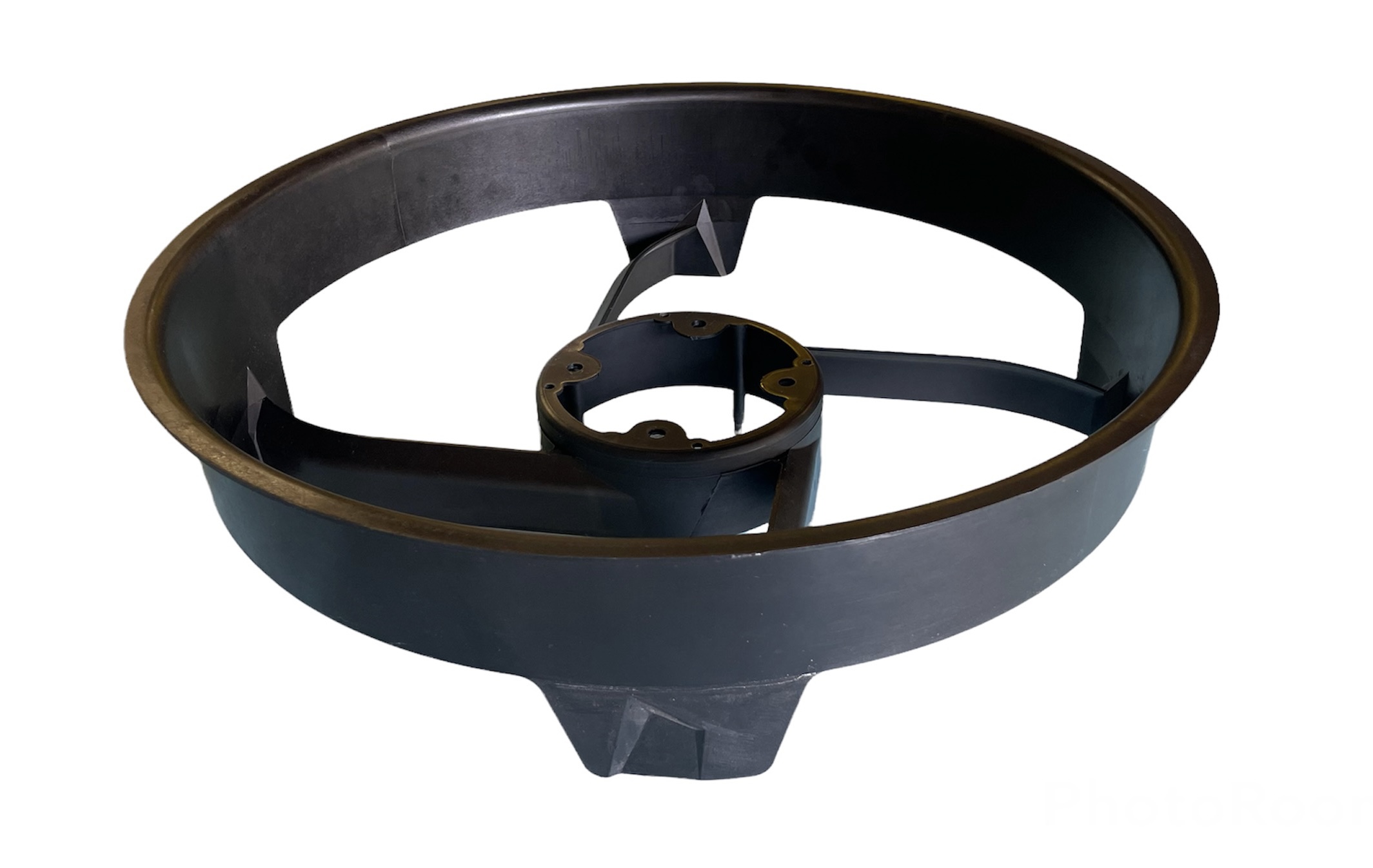

Motor Support Ring – New type Shrouded
ROOF UNIT CONTROL BOARDS

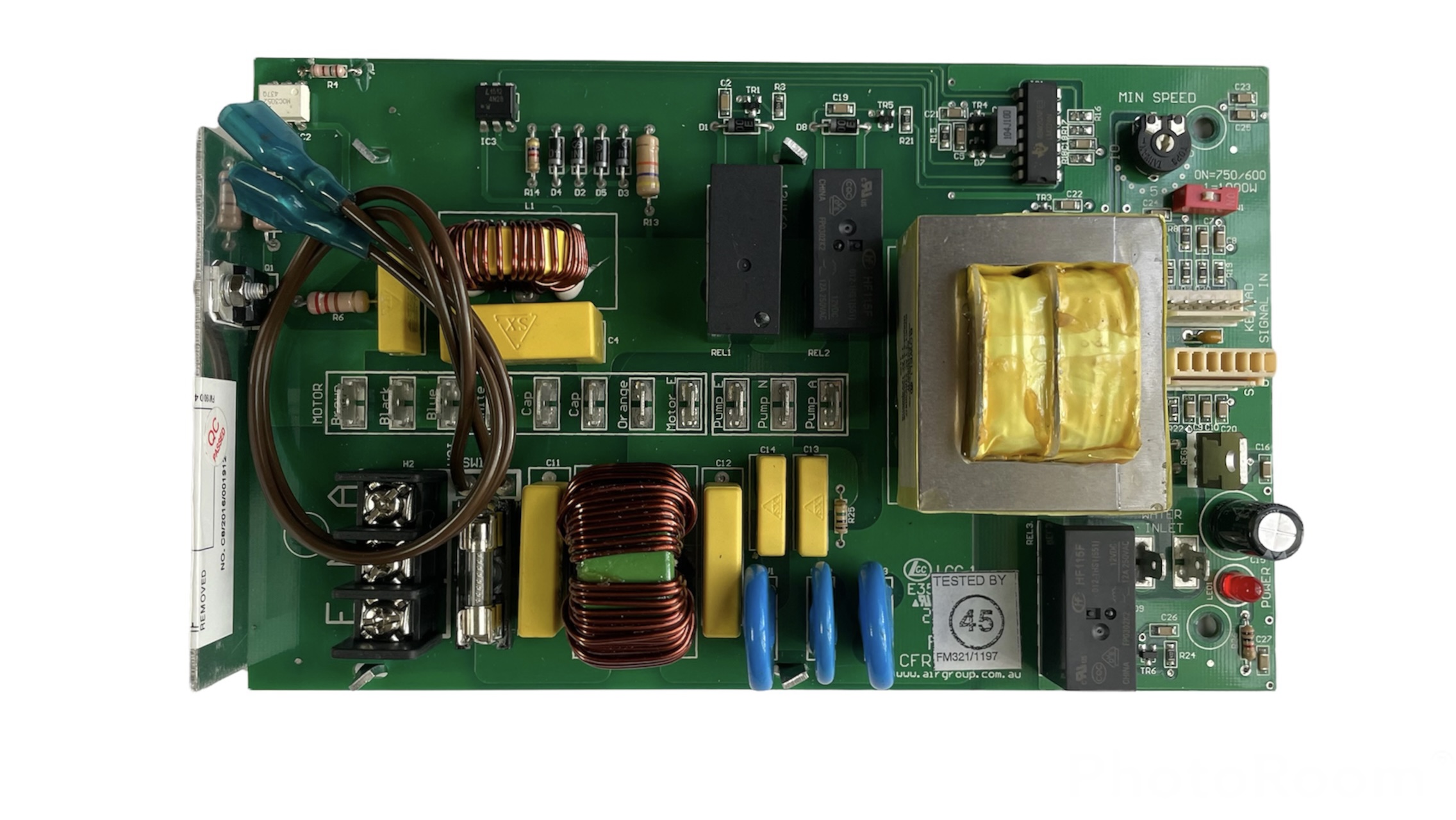

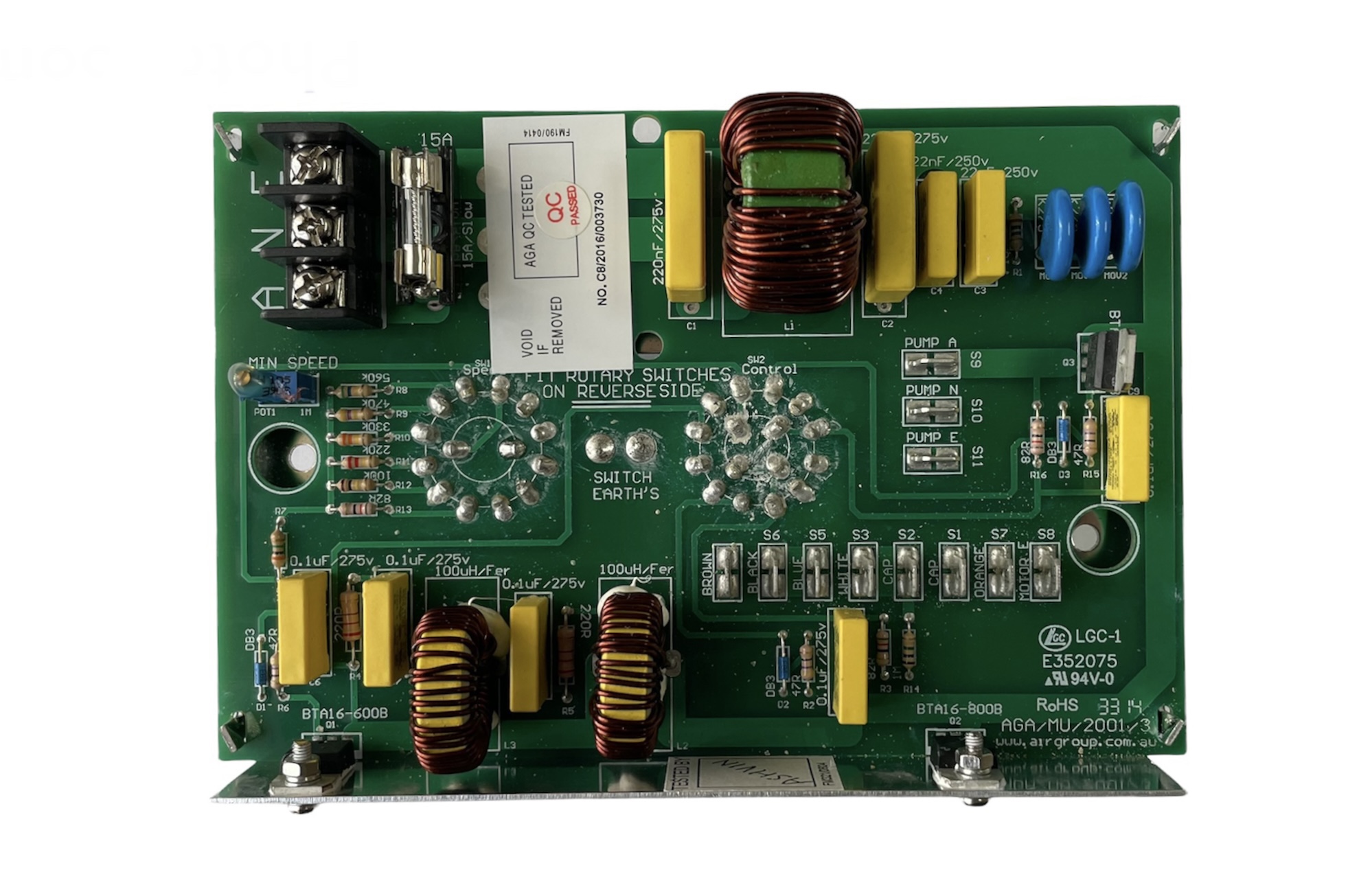

Roof Unit Control Board CF
• For older type Twin Fan Coolers pre-Oct 2007
• Use with Controller CP R only

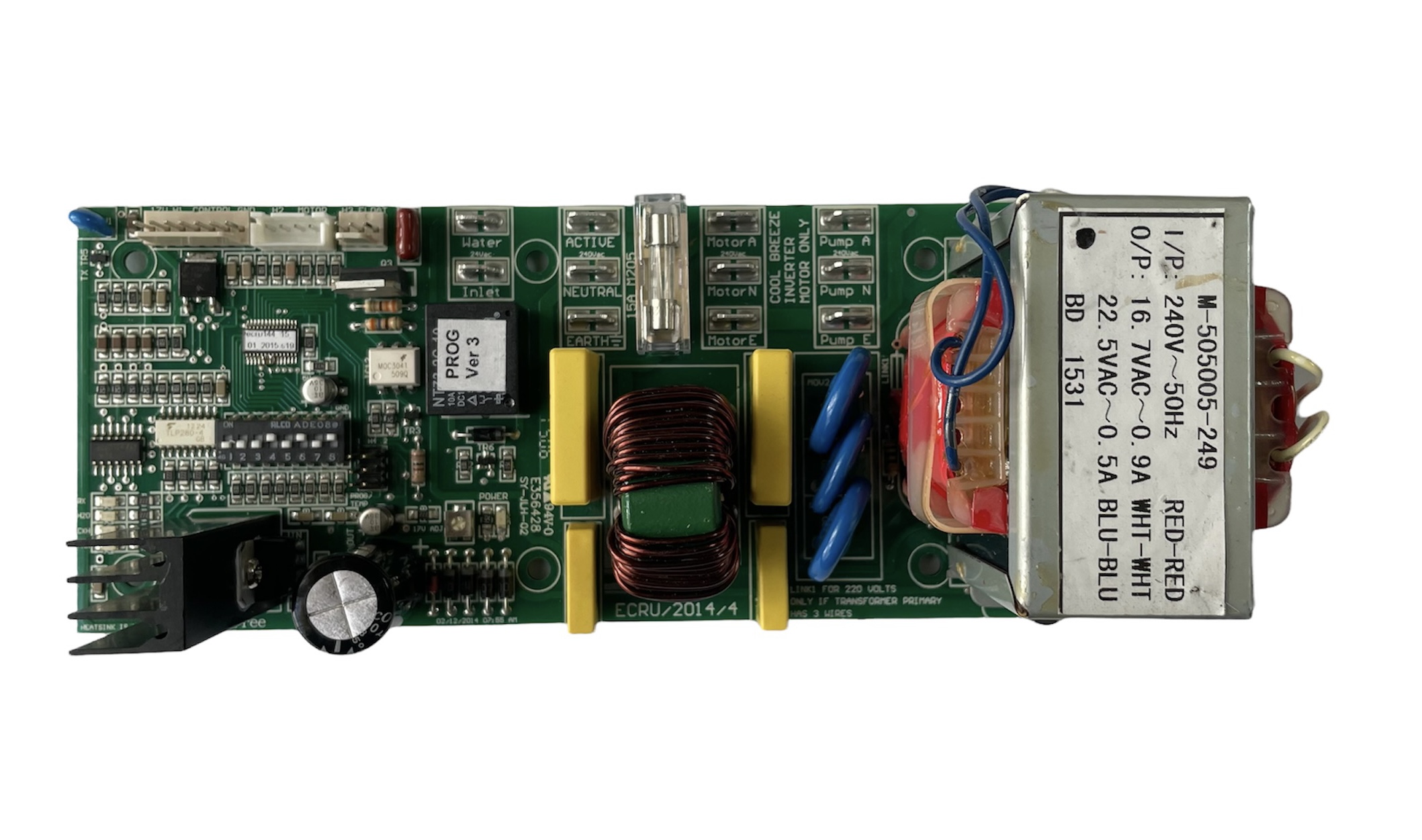

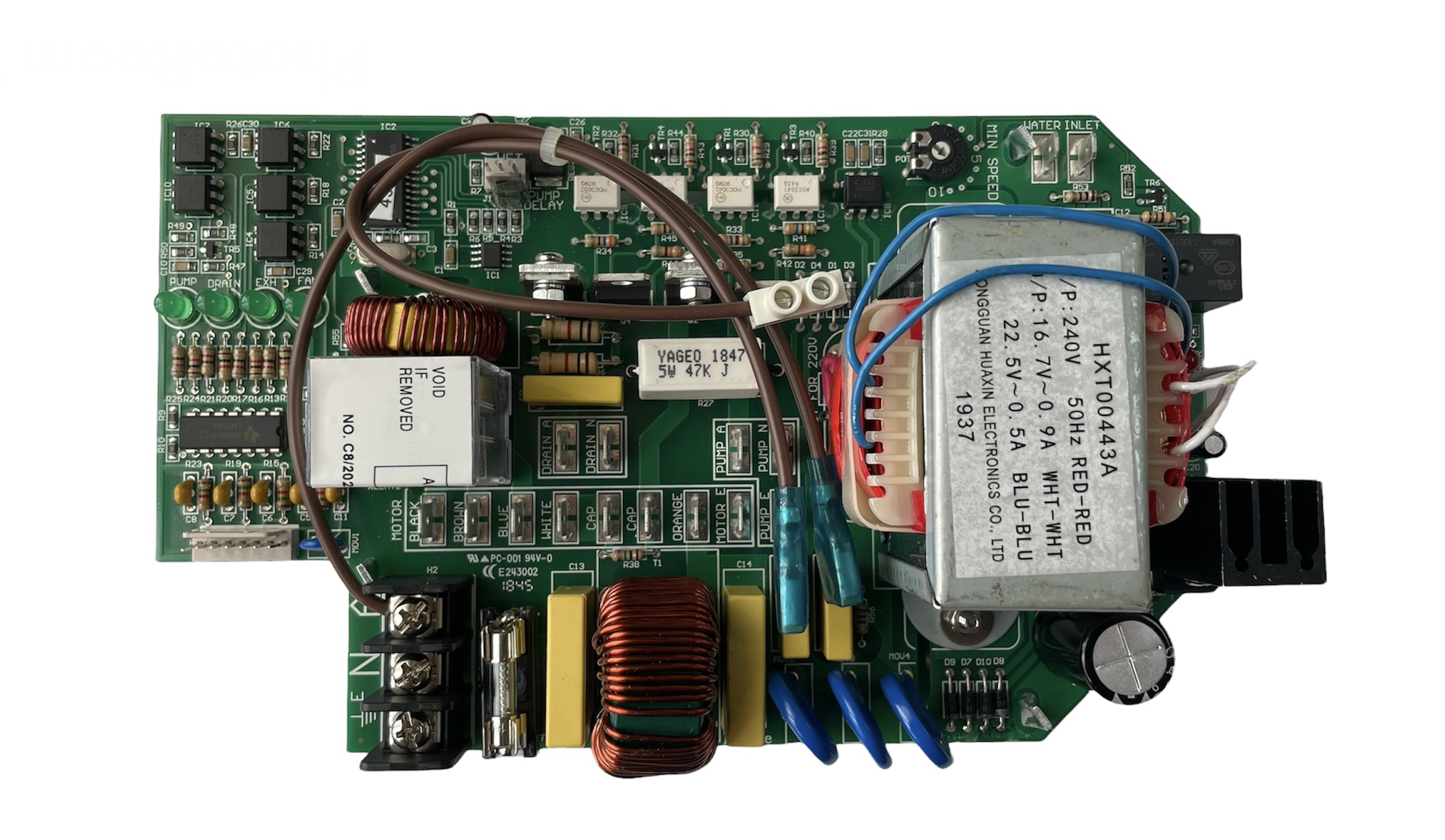

Roof Unit Control Board MRU
• For all types of current coolers and can be used on older 080 – 210 range of coolers (excluding L240 / old Twin Fan coolers)

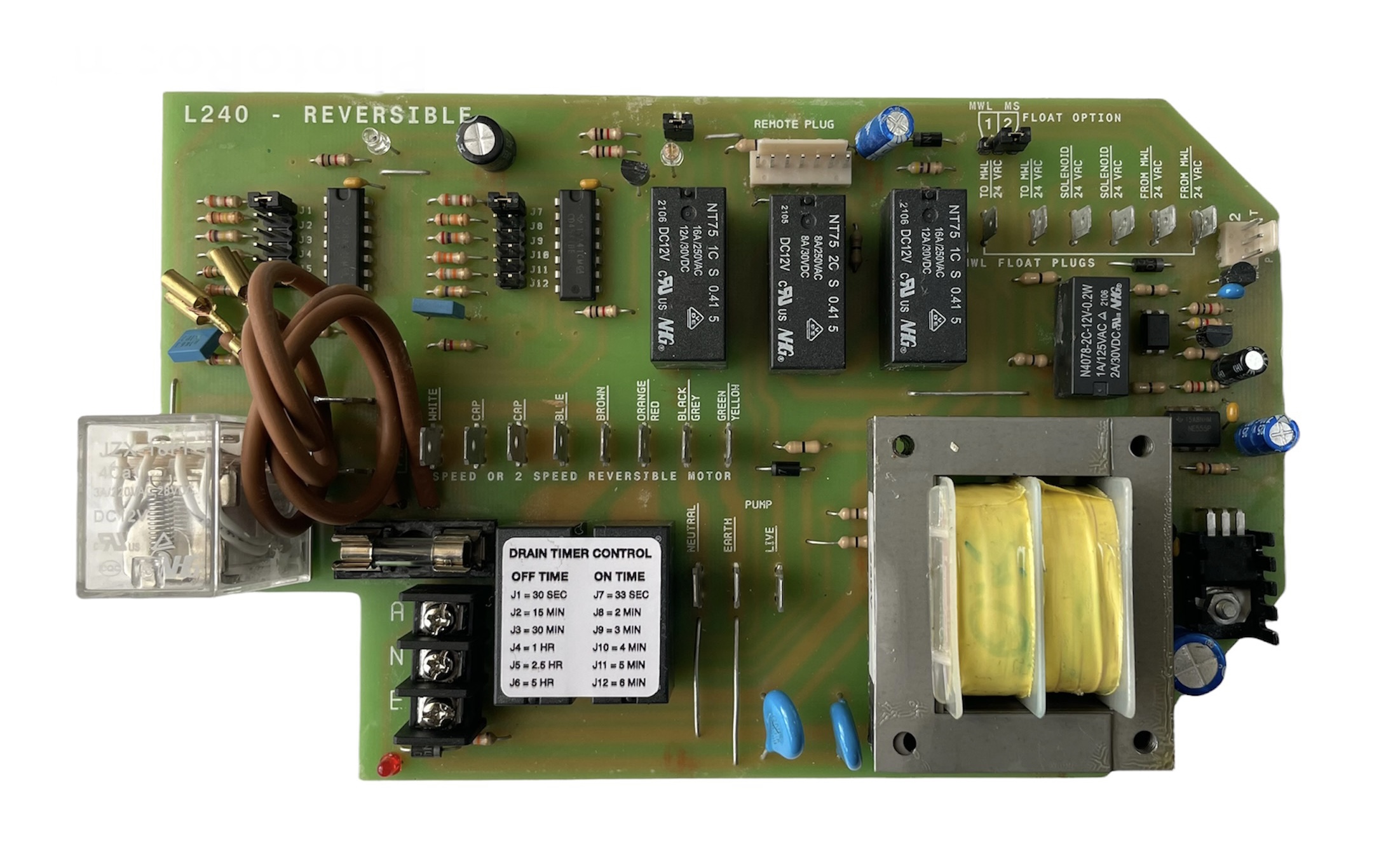

Roof Unit Control Board L240 R
• For all L240 2 Speed coolers – with both Reversible and Non-reversible motors. Can be used with both
MS and MWL Float Sensors.
• NOTE: Older single speed L240 coolers require a different PC Board and Controller.
Roof Unit Control Board Mobile Cooler Old type knob controller
• For older Mobile coolers with 2 knob controller (includes controller knobs)
SOLENOID VALVES (INLET)

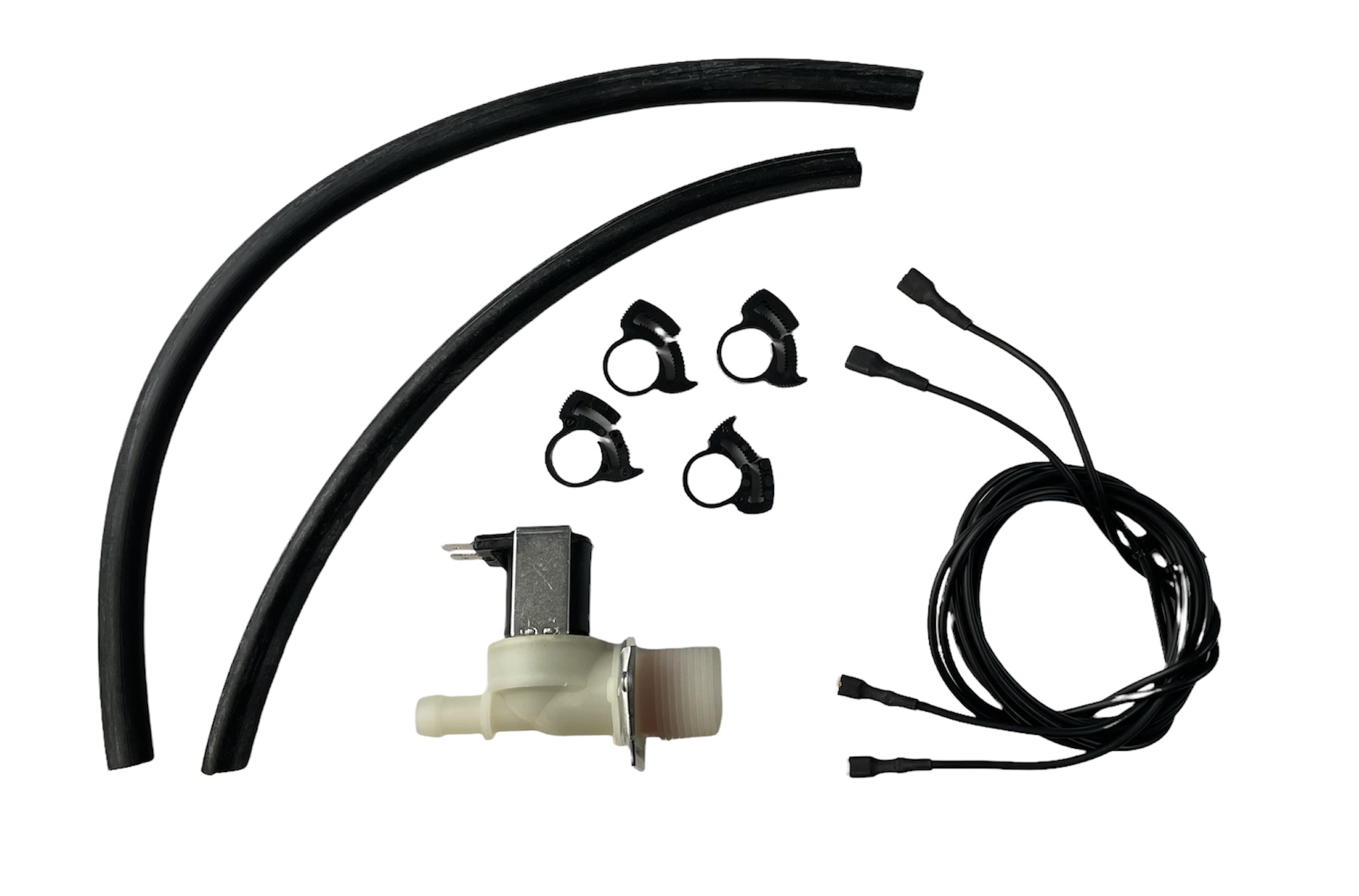

Solenoid 24v – barbed type
• For all newer type coolers with Counter Weight Dump valve and MS Float Sensor

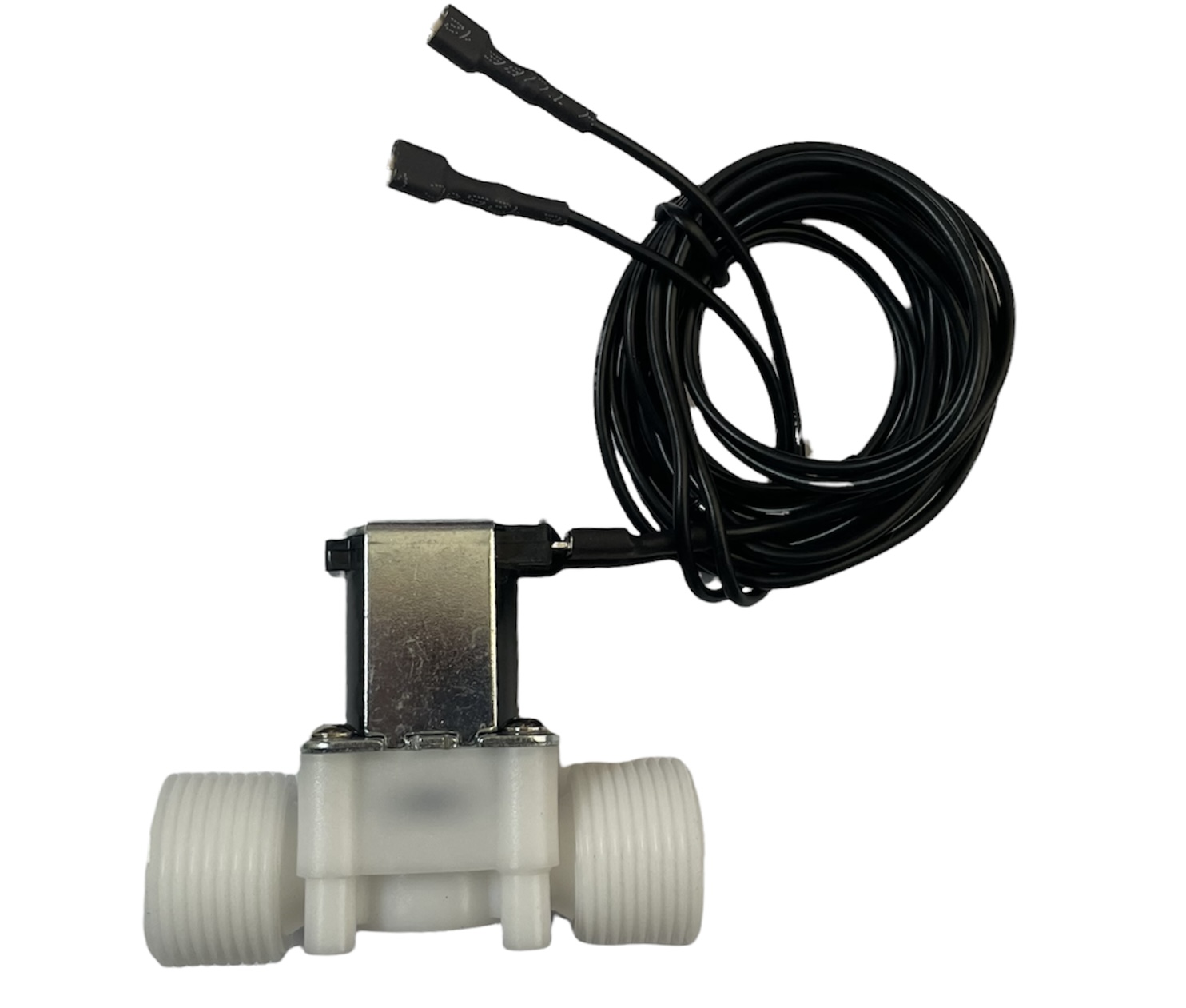

Solenoid 24v – threaded both ends
• For all L240 coolers and older type coolers with an Electric 220v Dump valve
SUMP

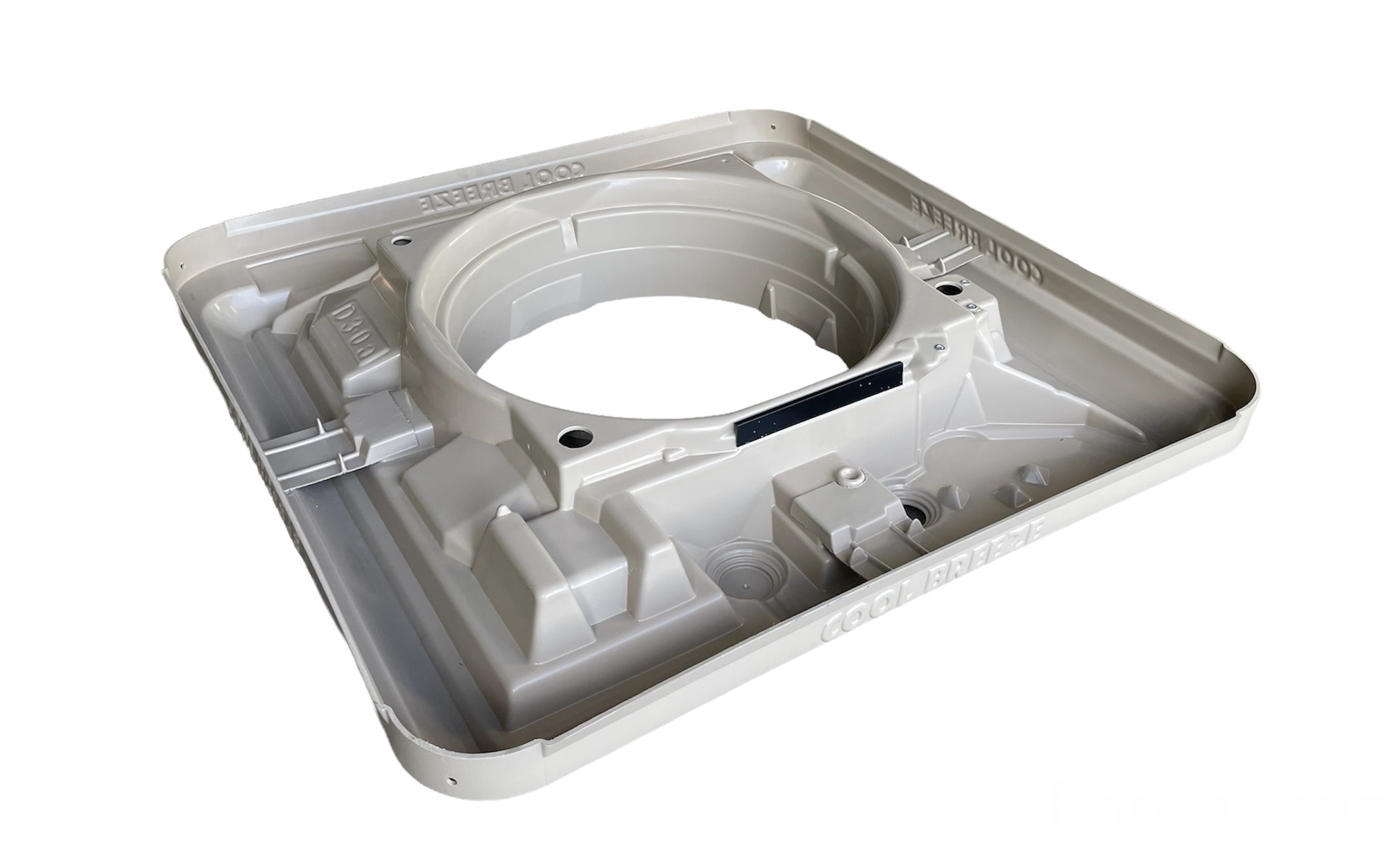

Sump – Large
• For all current D coolers as well as older 160, 185, 210 coolers
• NOTE: older coolers may require new shrouded motor support ring to fit in this sump
Sump – Small
• For all L240 coolers as well as older 080, 105, 130 coolers.
• NOTE: requires unshrouded motor support ring
WATER INLETS

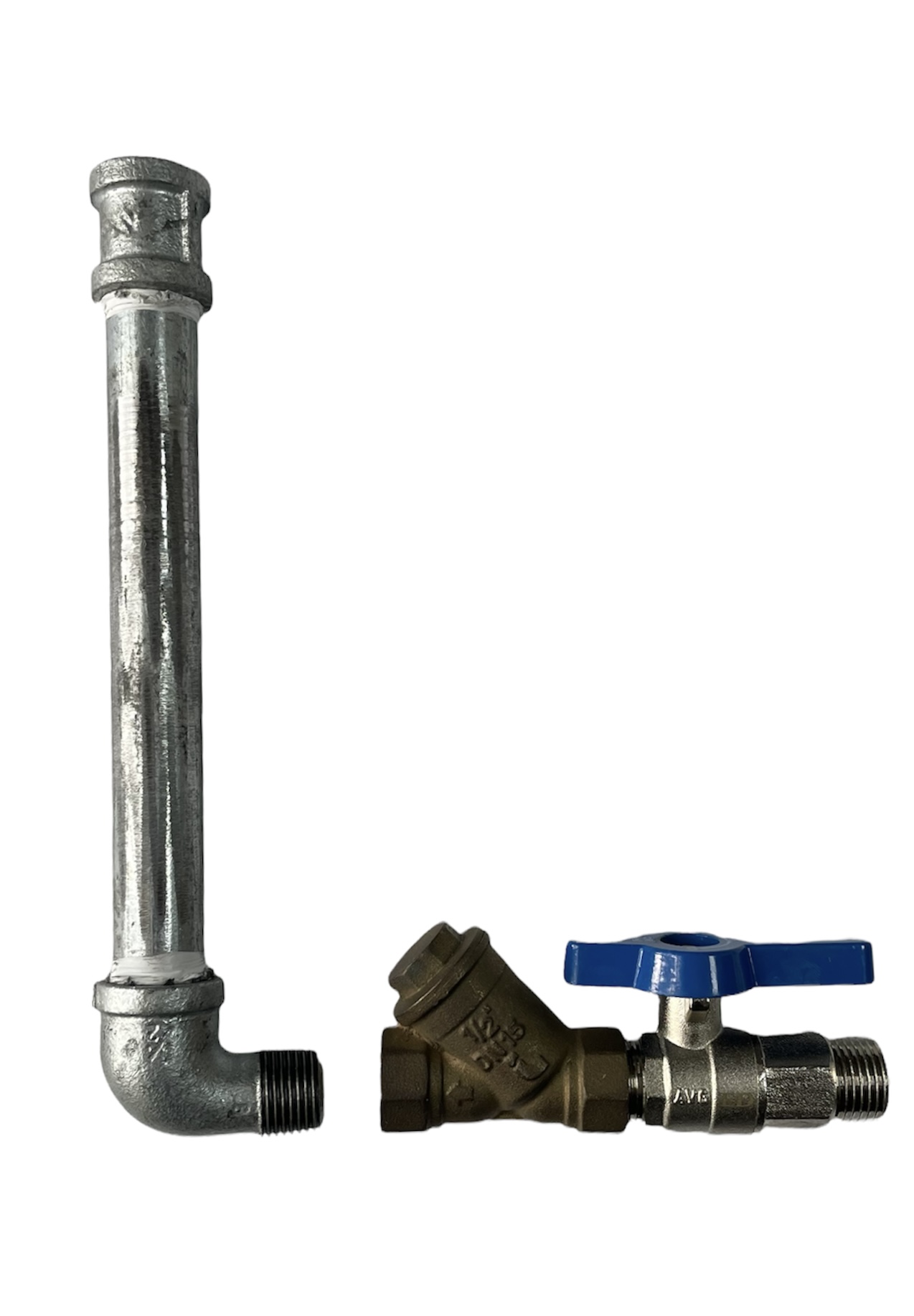

Water Filter Inlet Assembly
• Suggested for use with all Cool Breeze cooler installations
• In-line serviceable filter and gate valve for isolating water to cooler when servicing.

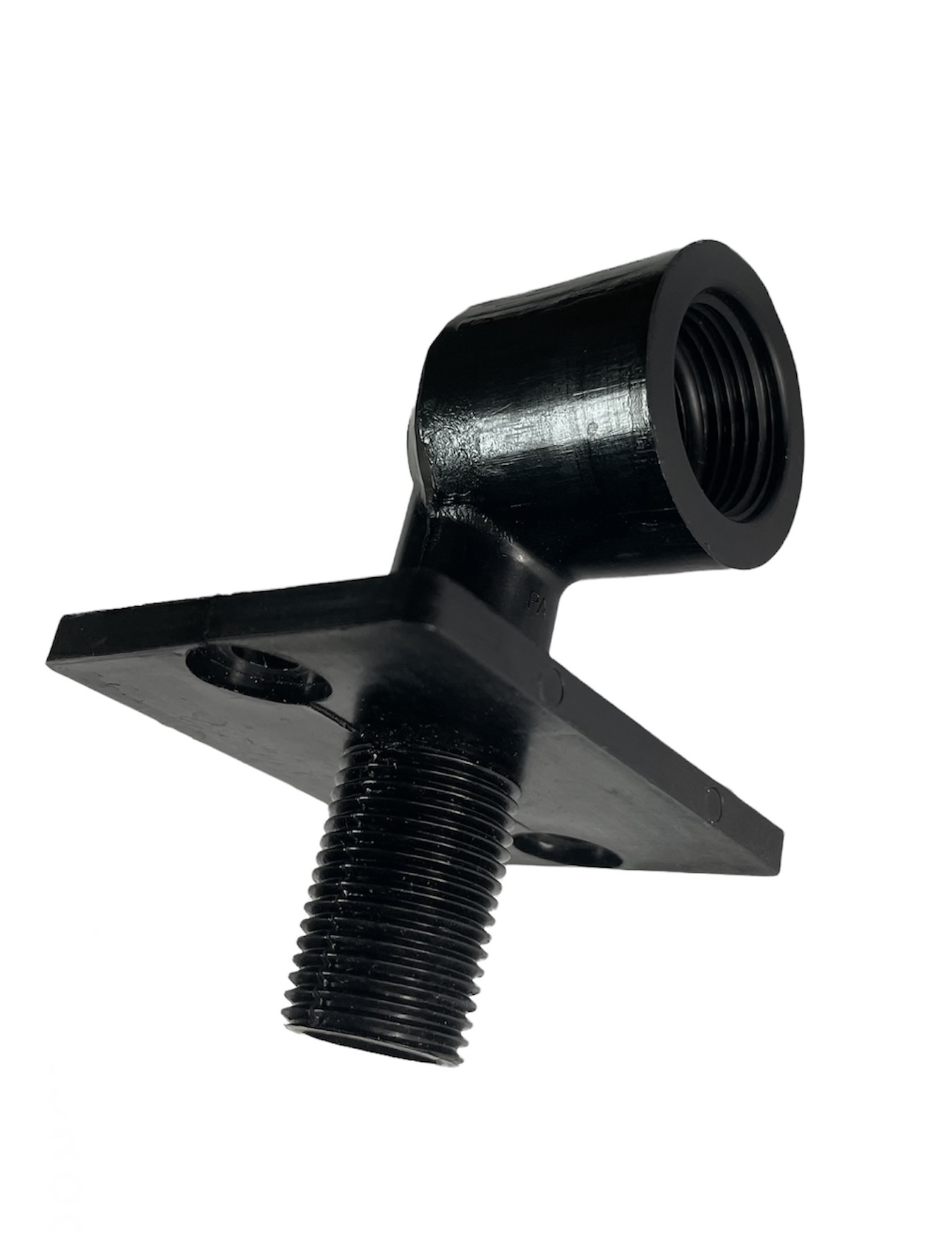

Water Inlet Elbow / Fixing Plate
• Found on all current sump coolers
• Fixing plate to secure elbow to cooler sump and female thread for solenoid valve
WATER DISTRIBUTION

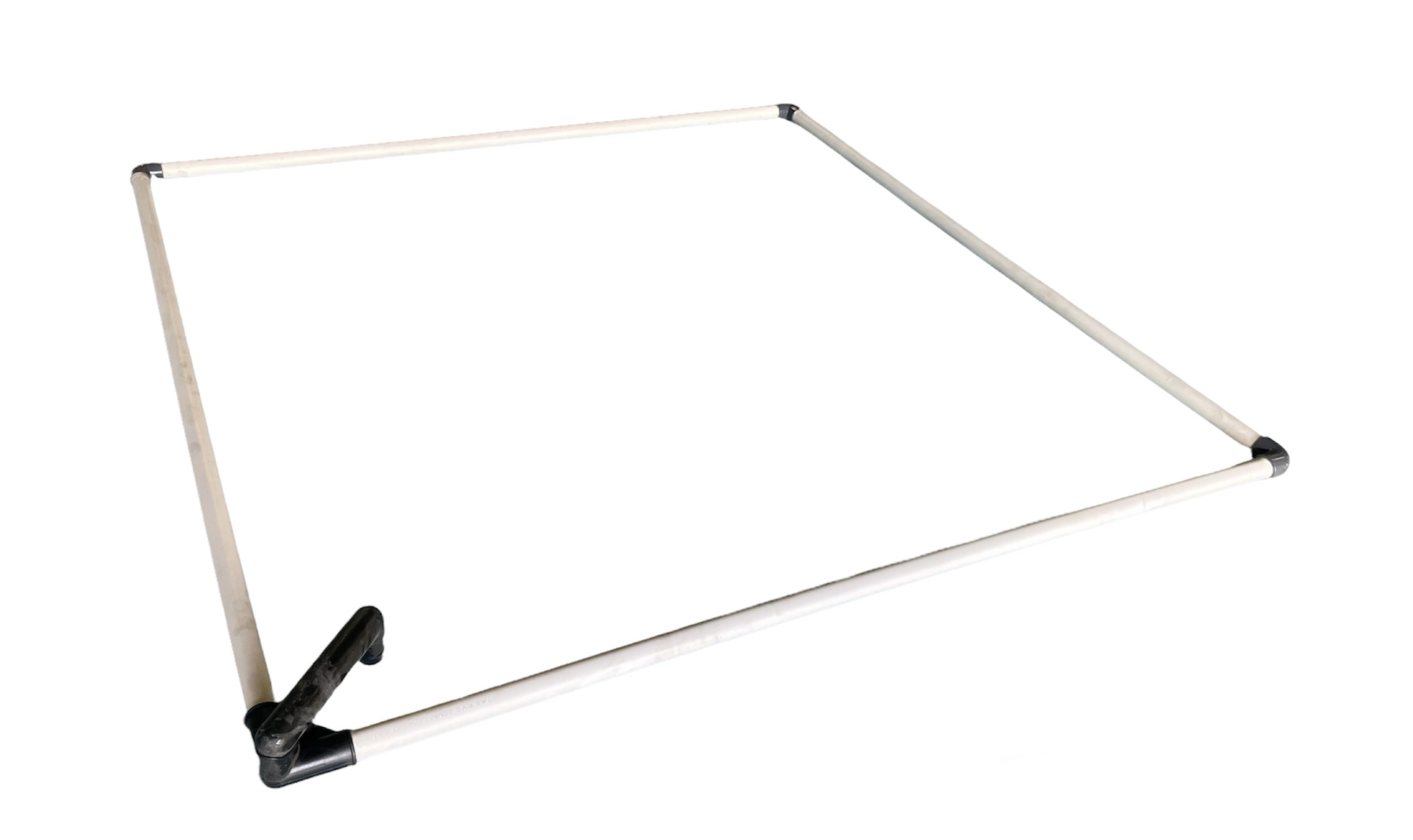

Water Manifold
• Available in different sizes for all coolers

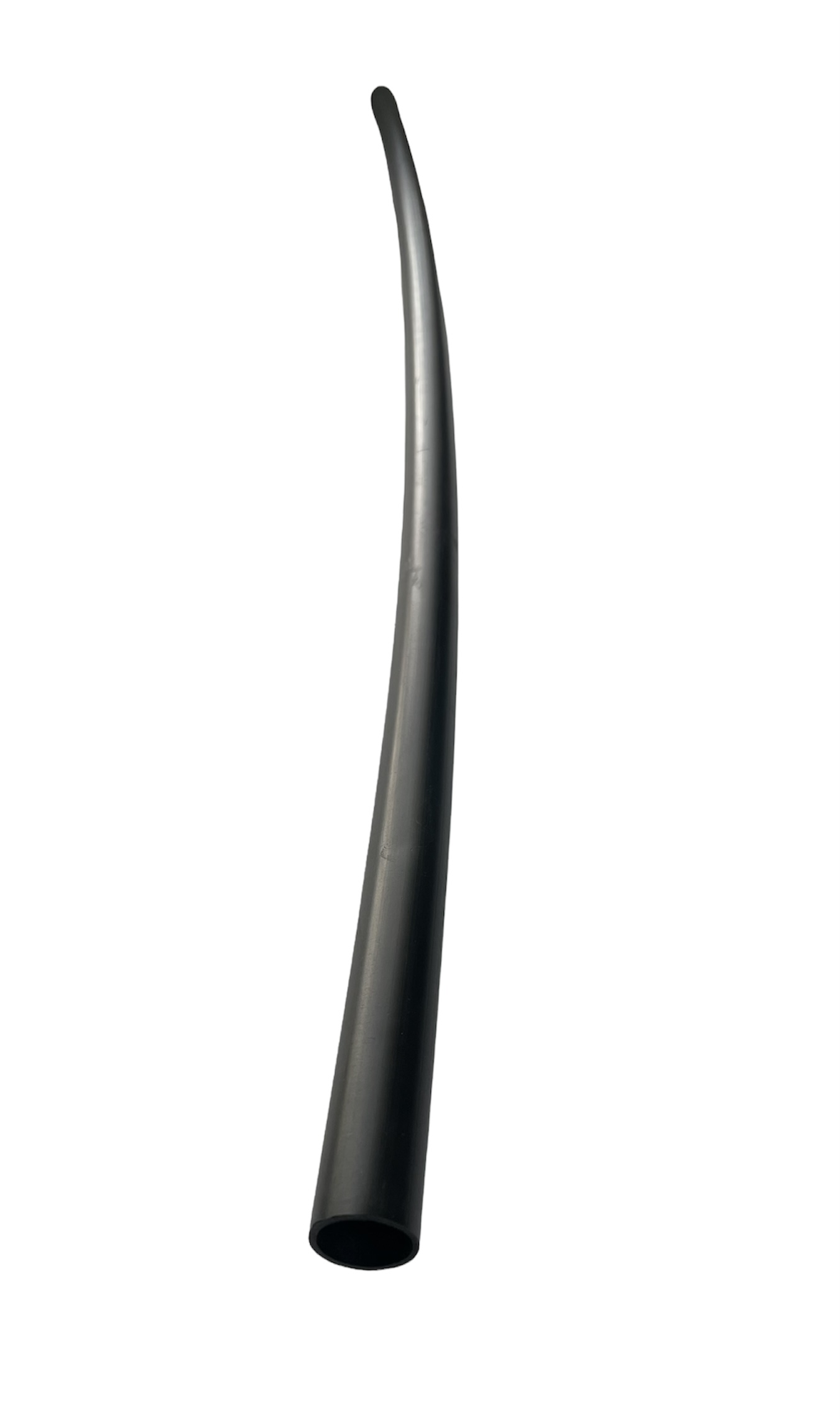

Water Riser Pipe
• Riser pipe from Water Pump t-piece to Water Manifold
WATER PUMP

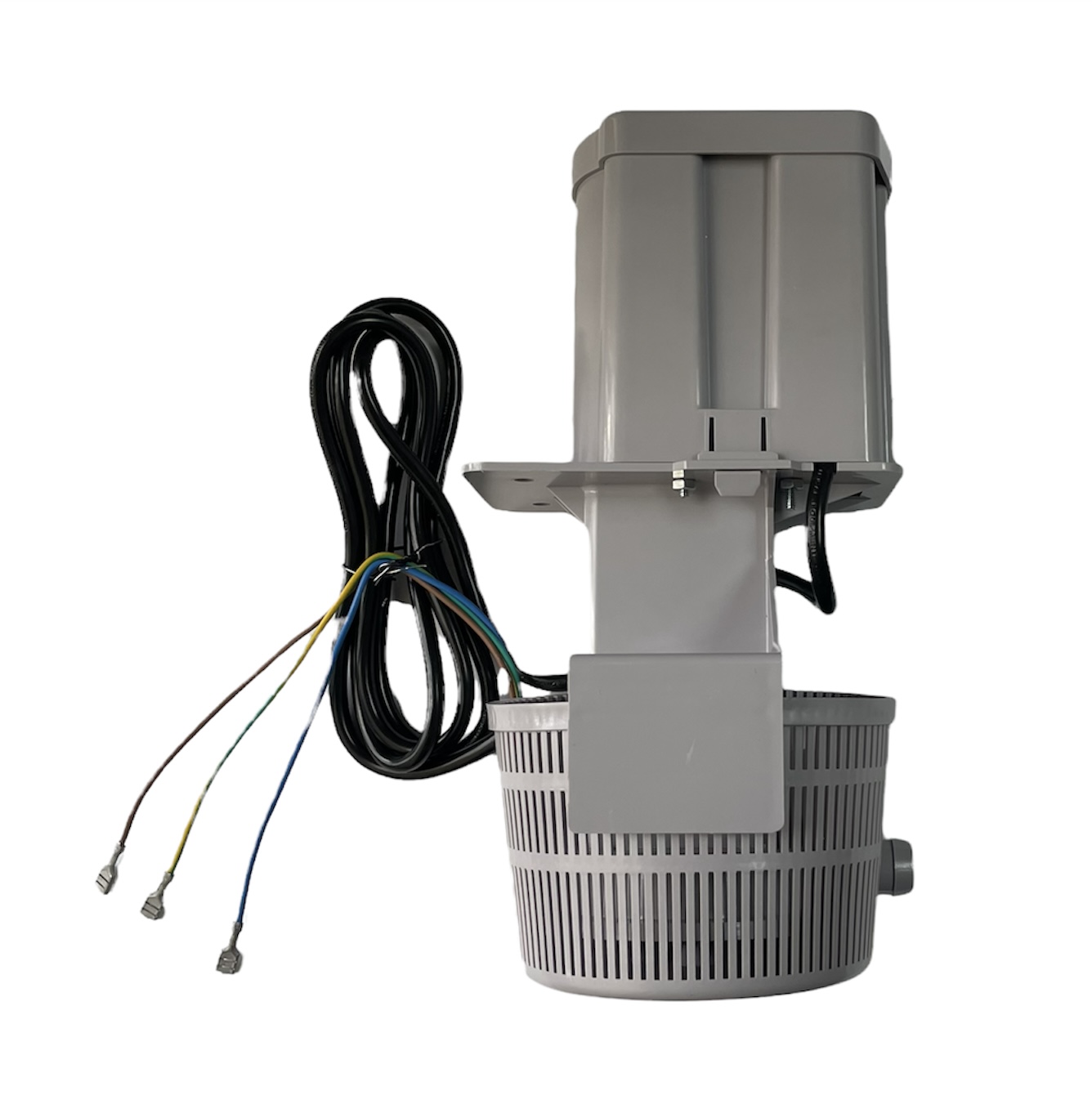

Water Pump (with basket)
• Can be used on all current and past Cool Breeze coolers as well as on many other makes of Evaporative coolers
