T SERIES
T095, T125, T160, T195, T230, T255

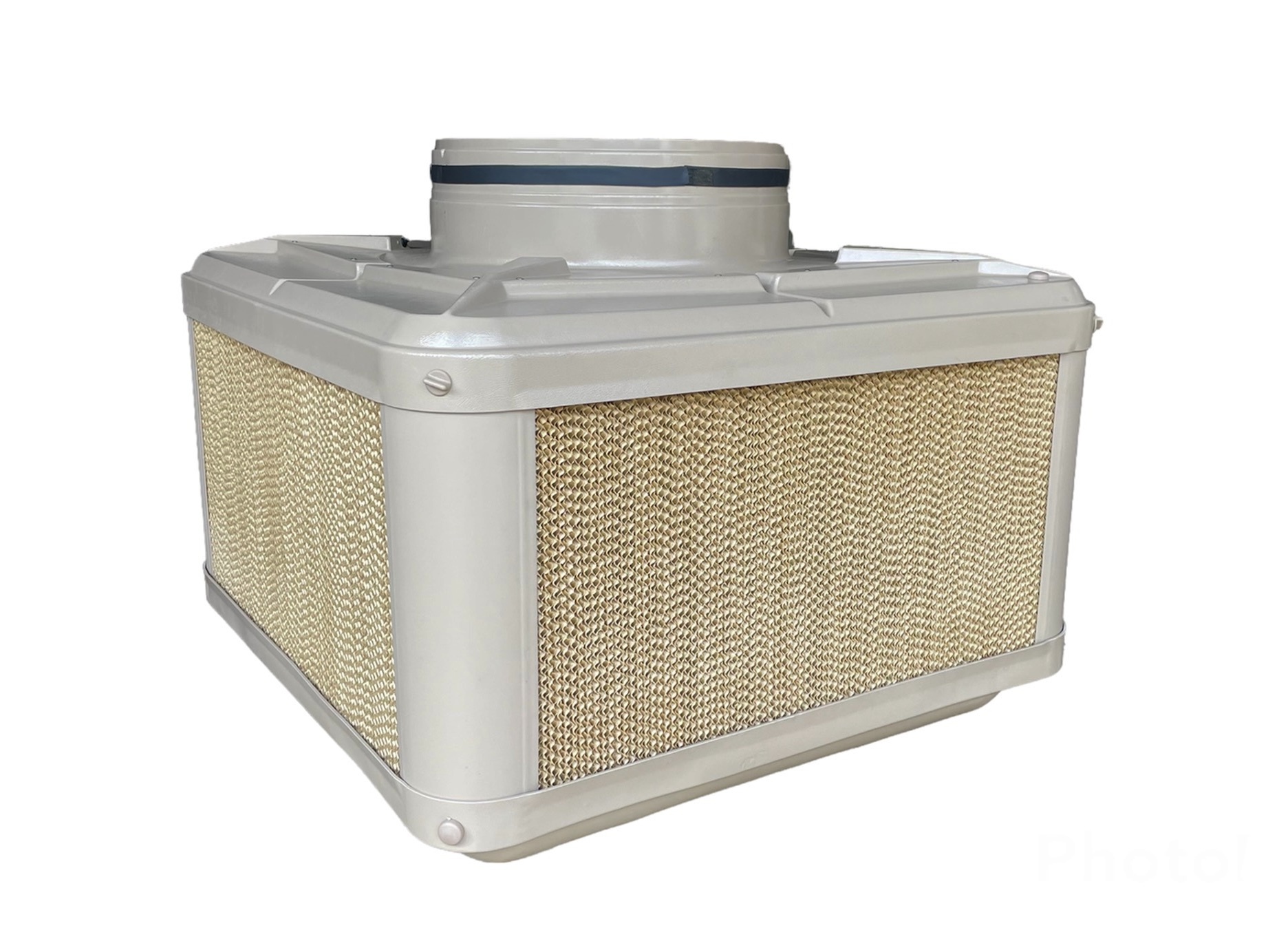

| Cool Breeze T095 – T255
|
| Airflow = 2.15 – 4.5 m3/s (free air) |
| Airflow = 7 740 – 16 200 cm/h (free air) |
| Motor = 600w / 750w / 1000w |
| Power Consumption = 0.8Kw – 1.32Kw |
| · Cooler can be mounted on the floor or on wall brackets (extra item – 2 required)
· Advisable to use Flexible connector to 690×690 flange to facilitate easy servicing of cooler when ducting is in place |
FULL SPECS – T SERIES (TOP DISCHARGE)
|
MODELS |
T095 |
T125 |
T160 |
T195 |
T230 |
T255 |
|||||
|
Airflow |
cm/s |
2.15 |
2.90 |
3.40 |
3.75 |
4.20 |
4.50 |
||||
|
|
cm/h |
7 740 |
10 440 |
12 240 |
13 500 |
15 120 |
16 200 |
||||
|
Motor |
Voltage (50 Hz) |
220 – 240 (50 Hz) |
|||||||||
|
|
CSR Single phase |
600 |
750 |
750 |
1000 |
1000 |
1000 |
||||
|
|
Capacitor |
30 uF |
|||||||||
|
|
Thermal overload prot. |
Yes |
|||||||||
|
|
Power – Amps |
3.6 |
5.6 |
5.6 |
6.0 |
6.0 |
6.0 |
||||
|
|
Power – Kw |
0.8 |
1.23 |
1.23 |
1.32 |
1.32 |
1.32 |
||||
|
|
RPM – low / high |
750/1200 |
750/1280 |
750/1280 |
850/1370 |
850/1370 |
850/1370 |
||||
|
Fan |
Auswing II 35º Pitch |
X |
X |
|
|
|
|
||||
|
|
Auswing II 40º Pitch |
|
|
X |
|
|
|
||||
|
|
PowerFlow Fixed Pitch |
|
|
|
X |
X |
X |
||||
|
|
Diameter (mm) |
524 |
|||||||||
|
Pump |
Voltage (50 Hz) |
220 – 240 |
|||||||||
|
|
Thermal overload UL cert. |
Yes |
|||||||||
|
|
Insulation |
“F” Class |
|||||||||
|
|
Performance (litres/minute) |
29.5 |
|||||||||
|
|
Power |
0.44 Amps |
|||||||||
|
|
RPM |
2550 |
|||||||||
|
Water |
Inlet connection |
½ Inch BSP |
|||||||||
|
|
Drain |
40mm |
|||||||||
|
|
Sump capacity |
10 – 12 litres |
|||||||||
|
|
Water level |
Hall Effect Sensor |
|||||||||
|
Filter Media |
Size (mm) – 4 pads per unit |
370 x 830 |
460 x 830 |
460 x 830 |
535 x 830 |
650 x 830 |
770 x 830 |
||||
|
|
Thickness (mm) |
75 |
75 |
100 |
100 |
100 |
100 |
||||
|
Size |
Length x Width (mm) |
1130 x 1130 |
|||||||||
|
|
Height (mm) |
540 |
630 |
630 |
705 |
820 |
940 |
||||
|
Shipping weight (kg) |
60 |
61 |
63 |
70 |
72 |
75 |
|||||
|
Operating weight (kg) |
72 |
73 |
75 |
85 |
87 |
90 |
|||||
|
Colours |
Beige |
Available ex-stock in South Africa |
|||||||||
|
|
Red, Green, Grey |
Available as special order from Australia |
|||||||||
