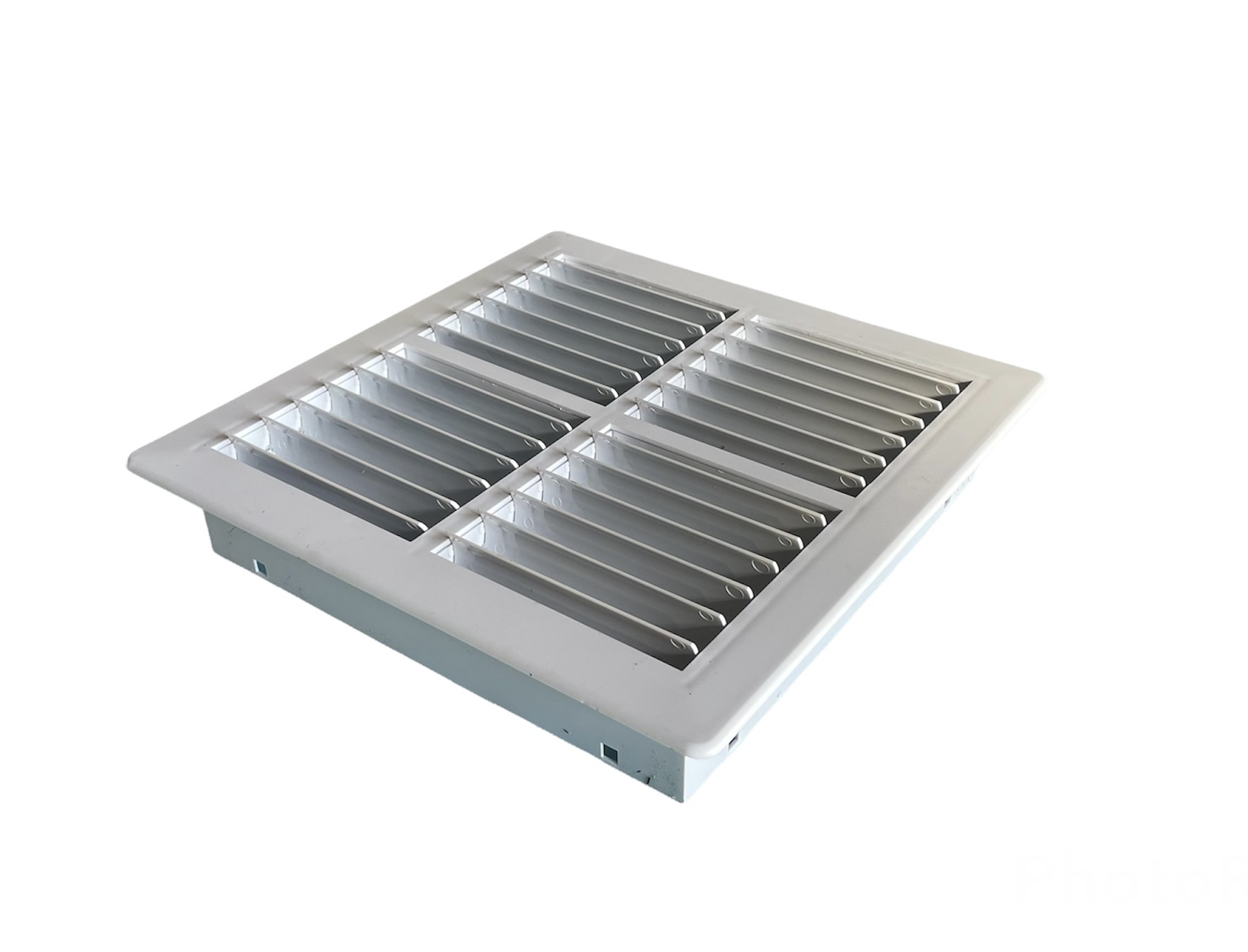

Ezyvent Diffuser 300

• To suite Adaptor 300/250 or 300/300
• Over flange size = 340mm x 340mm
• Ceiling cut-out size = 300mm x 300mm

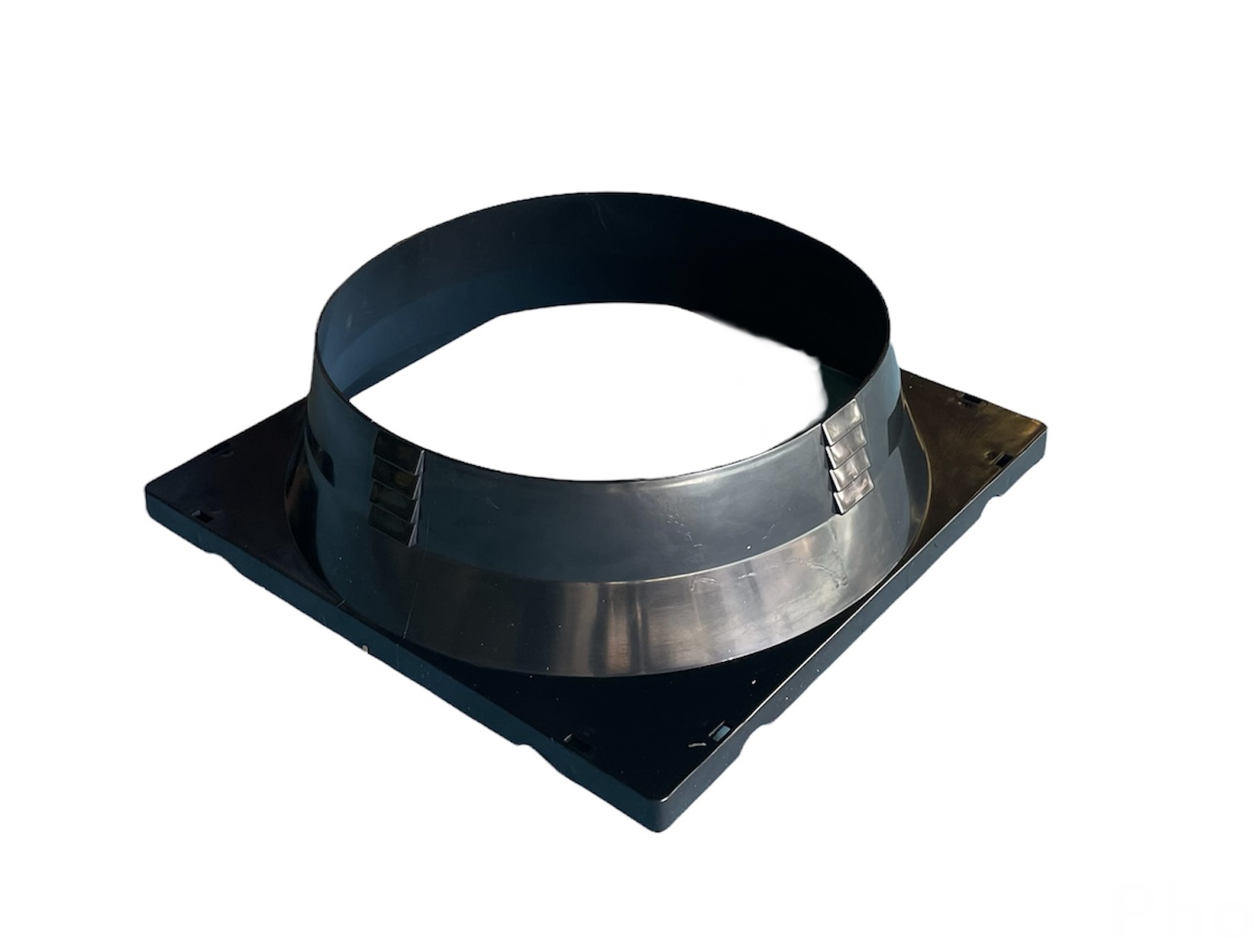

Ezyvent Adaptor 300/250

• Suitable for 250mm diameter flexible ducting
• Suggested Airflow Range:
5 m/s – 6 m/s = 0.25 m3/s – 0.30 m3/s

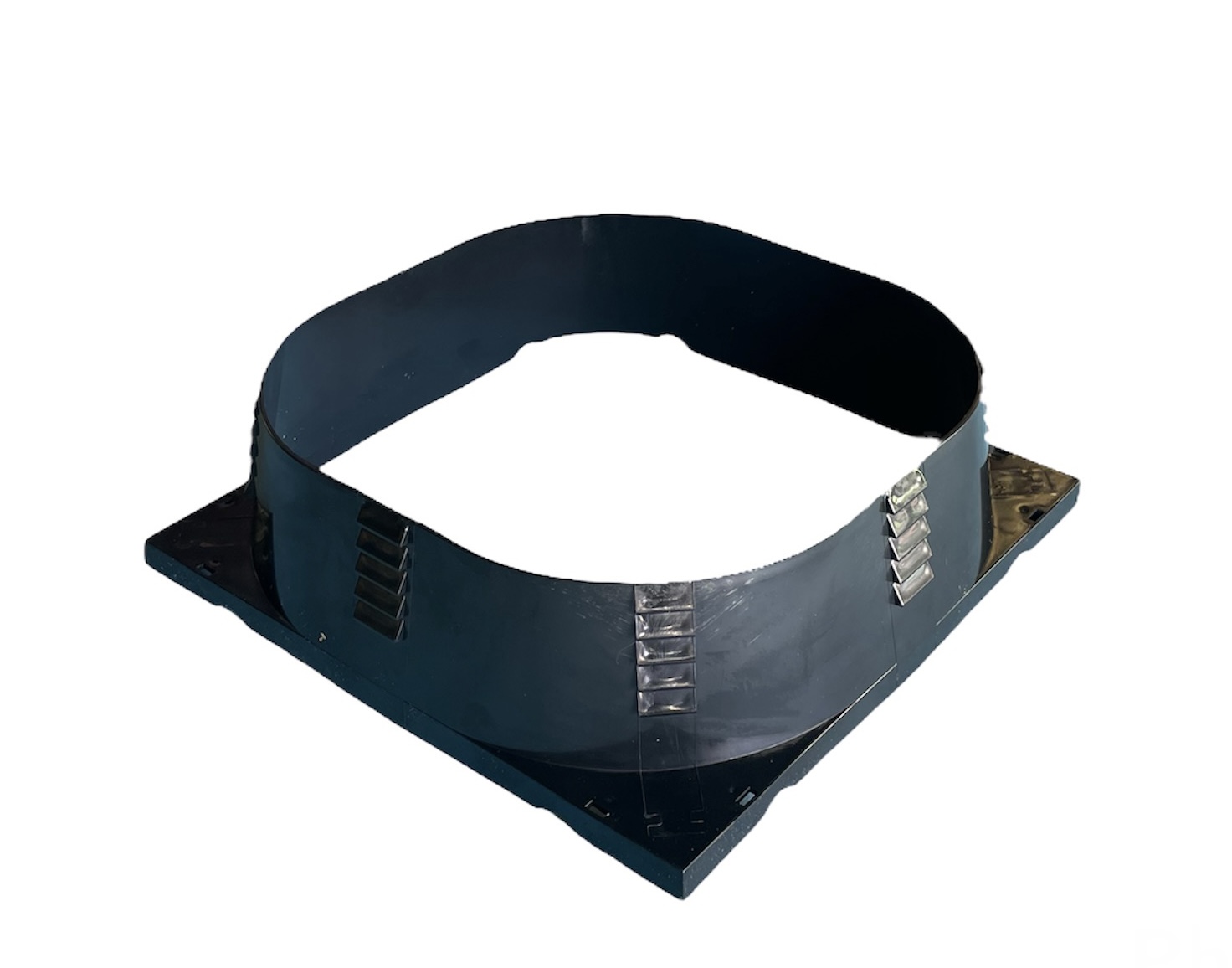

Ezyvent Adaptor 300/300

• Suitable for 300mm diameter flexible ducting
• Suggested Airflow Range:
5 m/s – 6 m/s = 0.35 m3/s – 0.43 m3/s

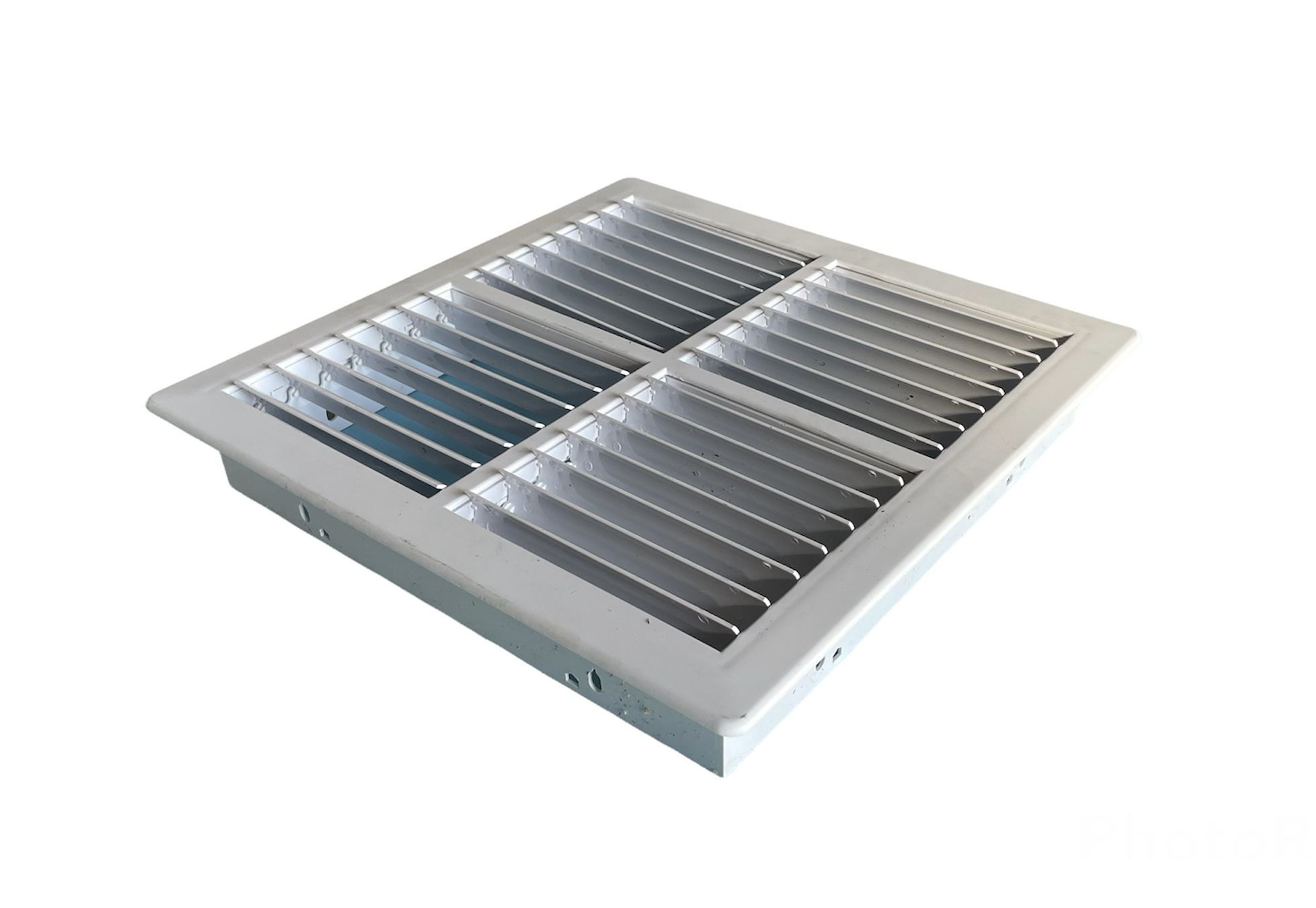

Ezyvent Diffuser 400

• To suite Adaptor 400/350 or 400/400
• Over flange size = 405mm x 405mm
• Ceiling cut-out size = 370mm x 370mm

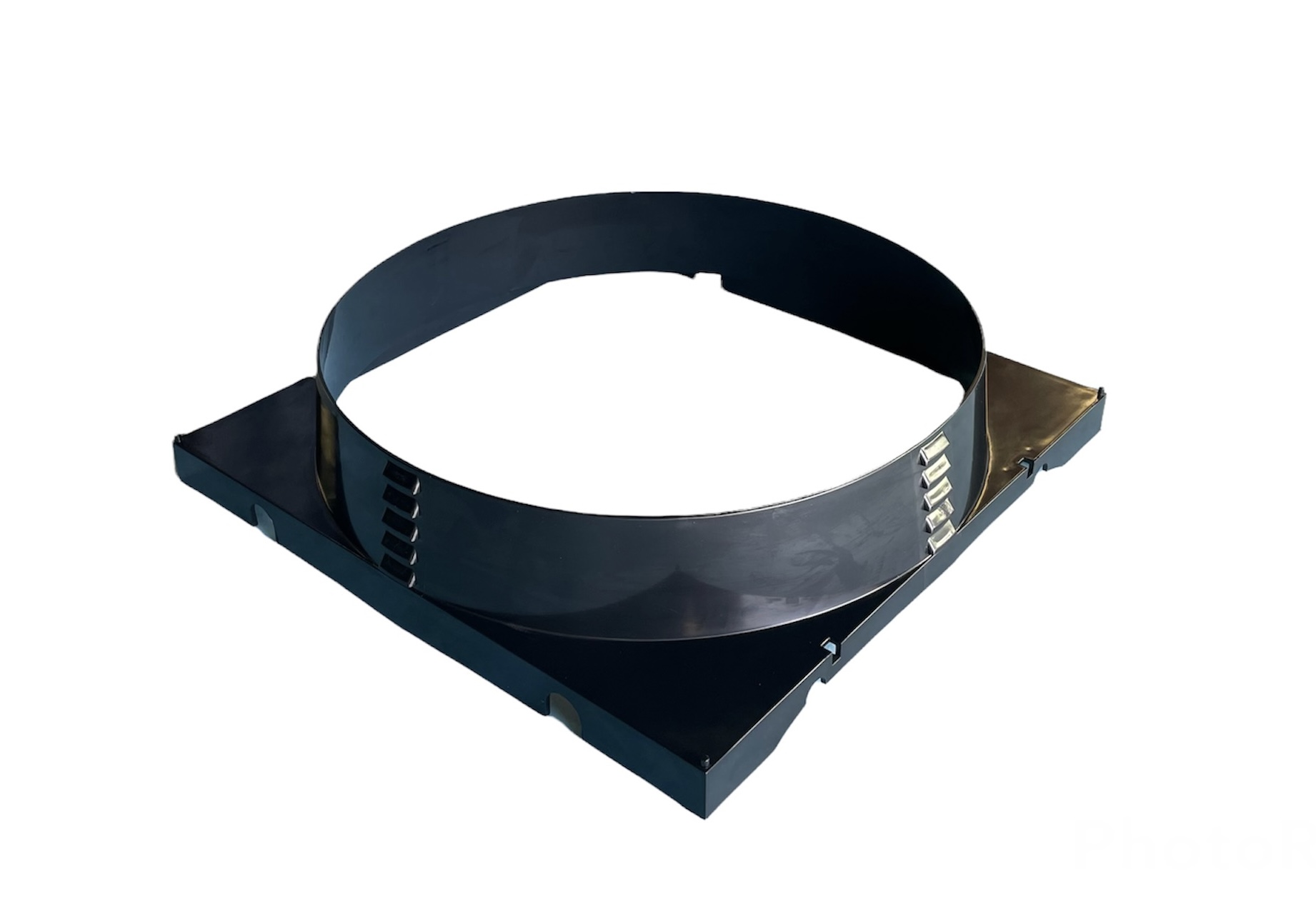

Ezyvent Adaptor 400/350

• Suitable for 350mm diameter flexible ducting
• Suggested Airflow Range:
5 m/s – 6 m/s = 0.48 m3/s – 0.58 m3/s

Ezyvent Adaptor 400/400

• Suitable for 400mm diameter flexible ducting
• Suggested Airflow Range:
5 m/s – 6 m/s = 0.63 m3/s – 0.75 m3/s

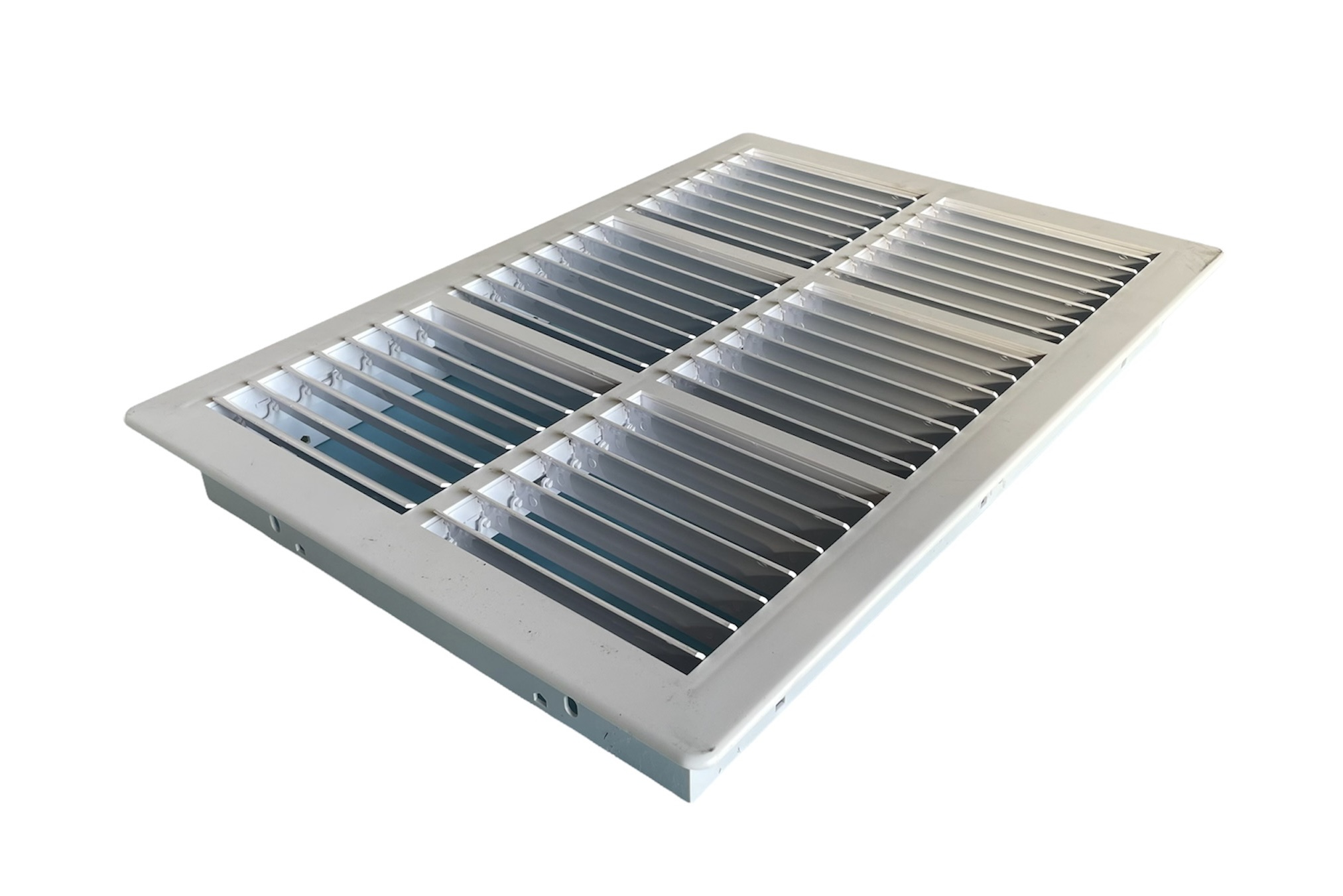

Ezyvent Diffuser 600

• To suite Adaptor 600/450 or 600/500
• Over flange size = 585mm x 410mm
• Ceiling cut-out size = 545mm x 370mm

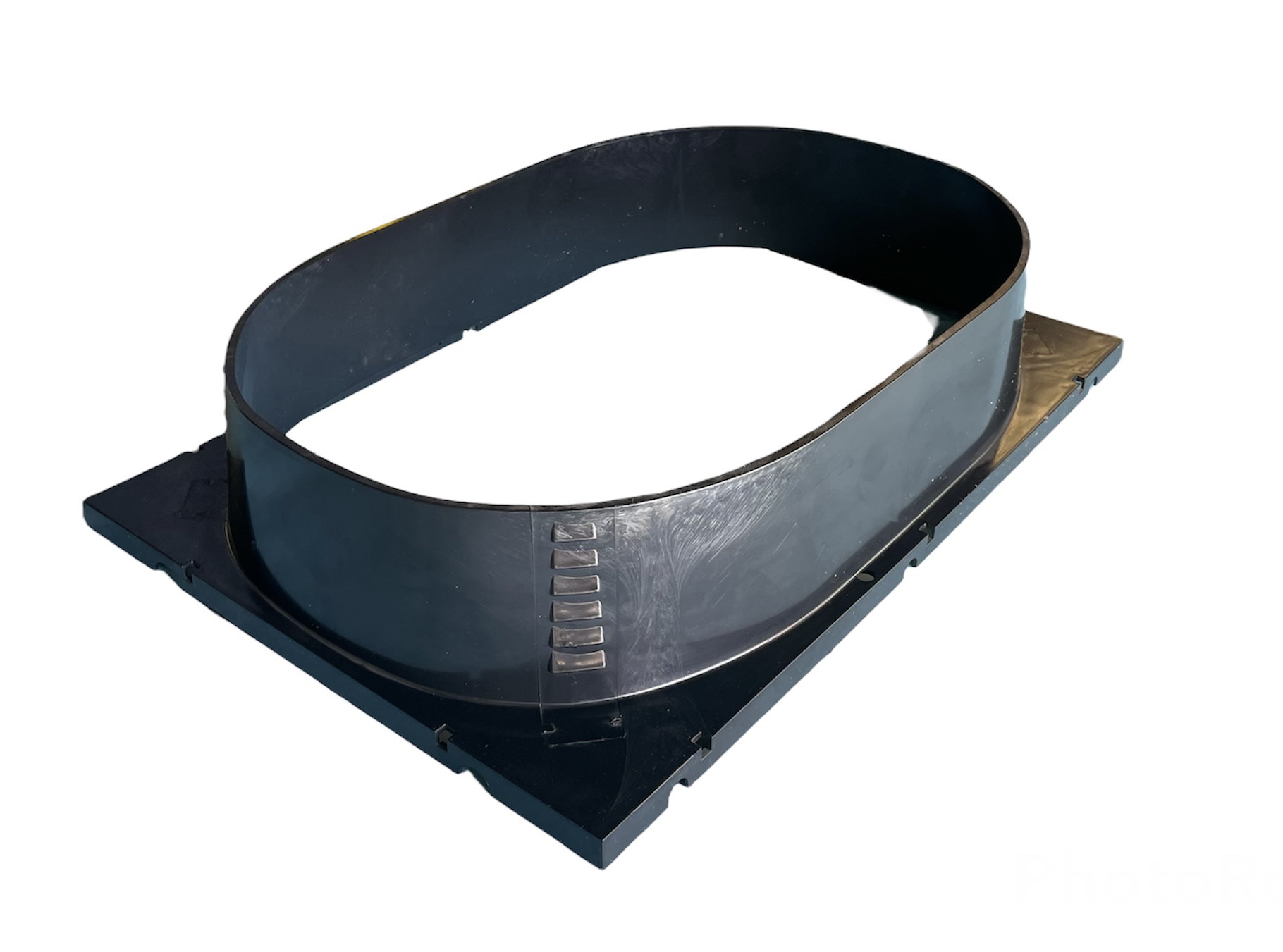

Ezyvent Adaptor 600/450

• Suitable for 450mm diameter flexible ducting
• Suggested Airflow Range:
5 m/s – 6 m/s = 0.79 m3/s – 0.95 m3/s

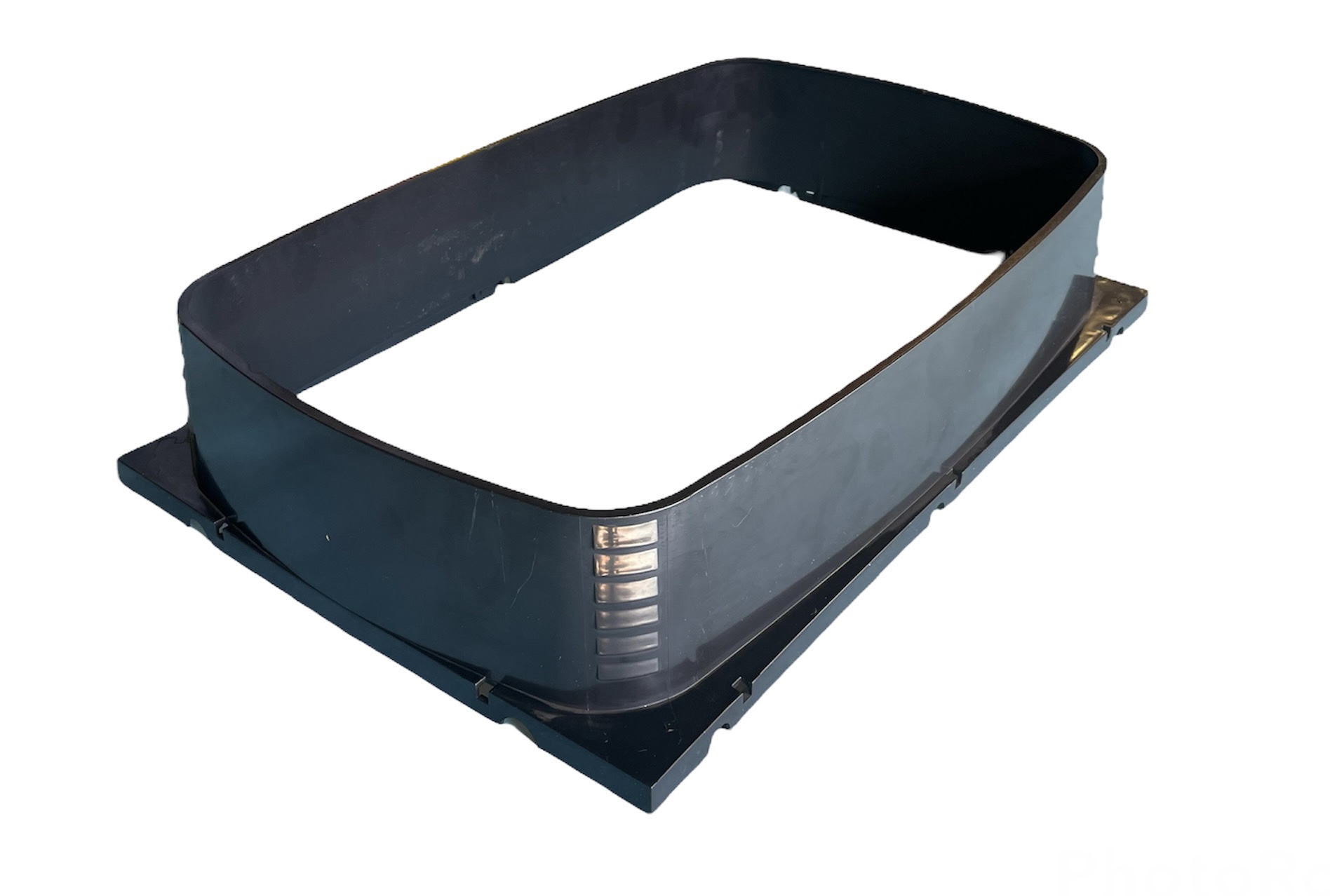

Ezyvent Adaptor 600/500

• Suitable for 500mm diameter flexible ducting
• Suggested Airflow Range:
5 m/s – 6 m/s = 0.98 m3/s – 1.18 m3/

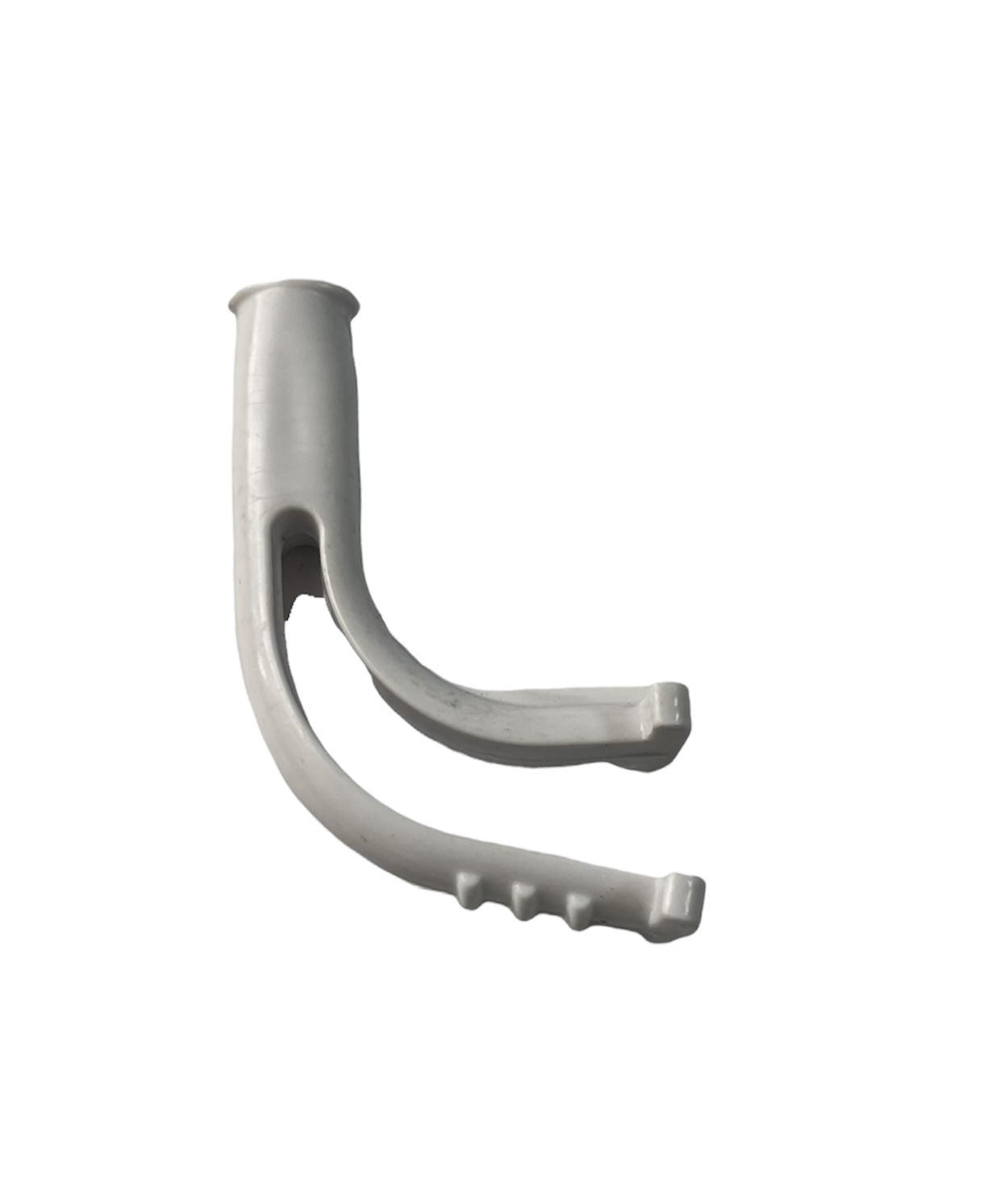

Ezyvent Clip for Ezyvent Diffusers only

• Available as single loose items
